Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force XPLR eTap -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 179cm
LG
176cm - 189cm
XL
186cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Graxx III GTR
Suspension Fork
OGV III in Disc 12x100
Drivetrain
Rear Derailleur
Force XPLR eTap AXS 1x12v Disc
Cassette
Force 12v AXS XPLR 10-44
Crank
Force AXS 40
Pedals
Without pedals
Wheels
Rims
Vega C35 Pro Wide
Tires
Terra Trail ProTection 40 Tubeless
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
TK-278A
Handlebar
Road Ergomax WCS
Seat
Saddle
SLR Boost X-Cross Superflow
Seatpost
1B WCS Carbon 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.5 mm | 1.54 mm | 1.55 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 274 mm |
| Front Center | 604 mm | 617 mm | 626 mm | 642 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 67 mm | 65 mm | 61 mm | 61 mm |
| Stack | 571 mm | 592 mm | 618 mm | 637 mm |
| Reach | 385.11 mm | 394.35 mm | 401.75 mm | 411.3 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 475 mm | 505 mm | 535 mm | 570 mm |
| Head Tube Angle | 71 ° | 71.3 ° | 72 ° | 72 ° |
| Head Tube Length | 140 mm | 160 mm | 185 mm | 205 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1030 mm | 1043 mm | 1052 mm | 1068 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm | 186 cm |
| Rider Max Height | 171 cm | 179 cm | 189 cm | 200 cm |
Model Overview

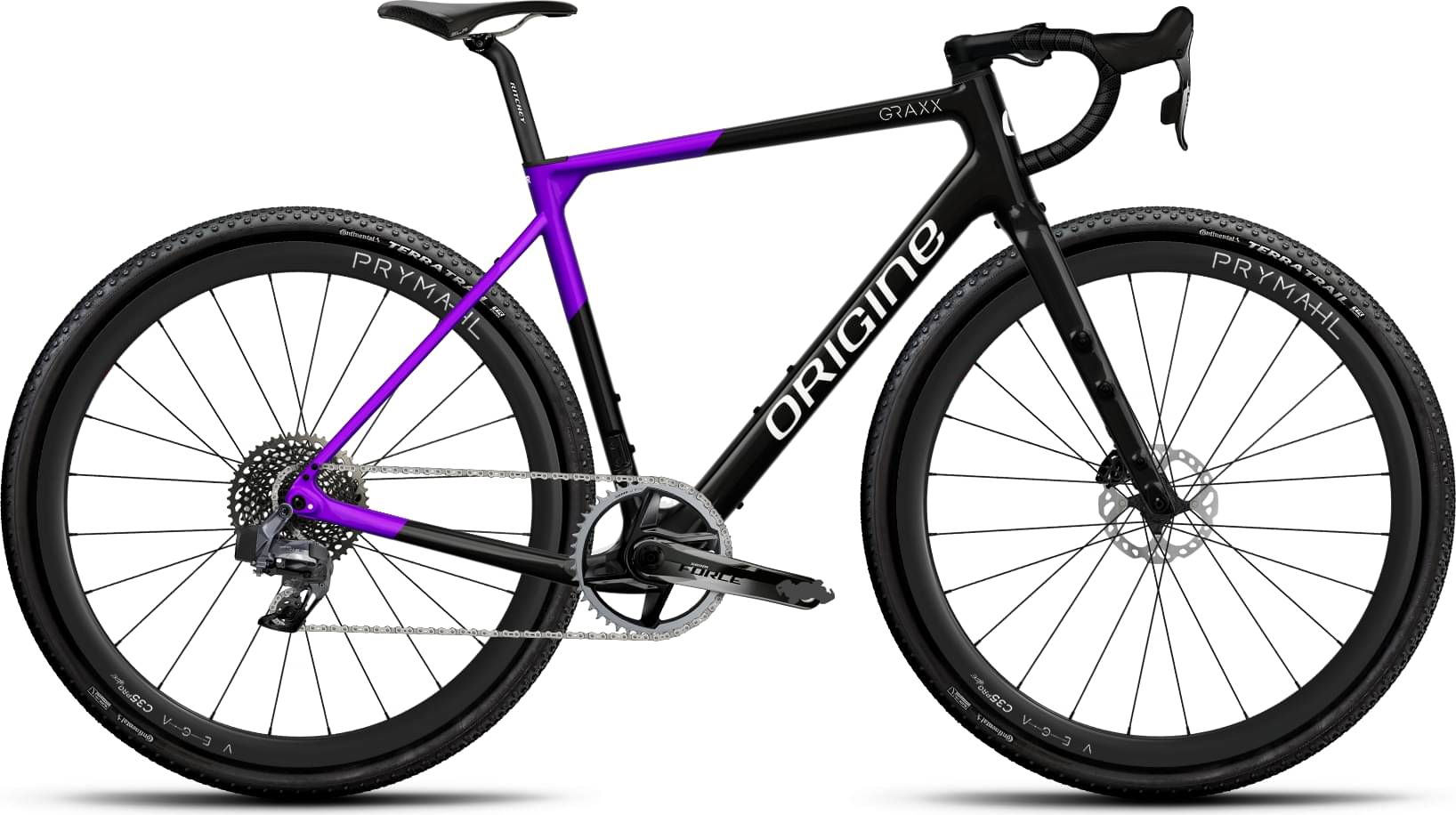

Graxx III GTR C89 belongs to the Origine Graxx model. Origine released 63 bikes variations of this model so far. Take a sneak peek at all Origine Graxx bikes models from 2023, by clicking here.
Model range prices
Origine Graxx III GTO Flatbar R25 2023 is the most affordable bike of this model and has a price of 2302$. On the other hand, Origine Graxx III GTR Explore C89 2023, is the most expensive and costs 7529$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6822$. Doing a quick comparison, we notice that Graxx III GTR C89 price is 177.09% more expensive than the average cost of a Gravel bike.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When leaving the production line, the Graxx III GTR C89 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 200 cm (5.18 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
