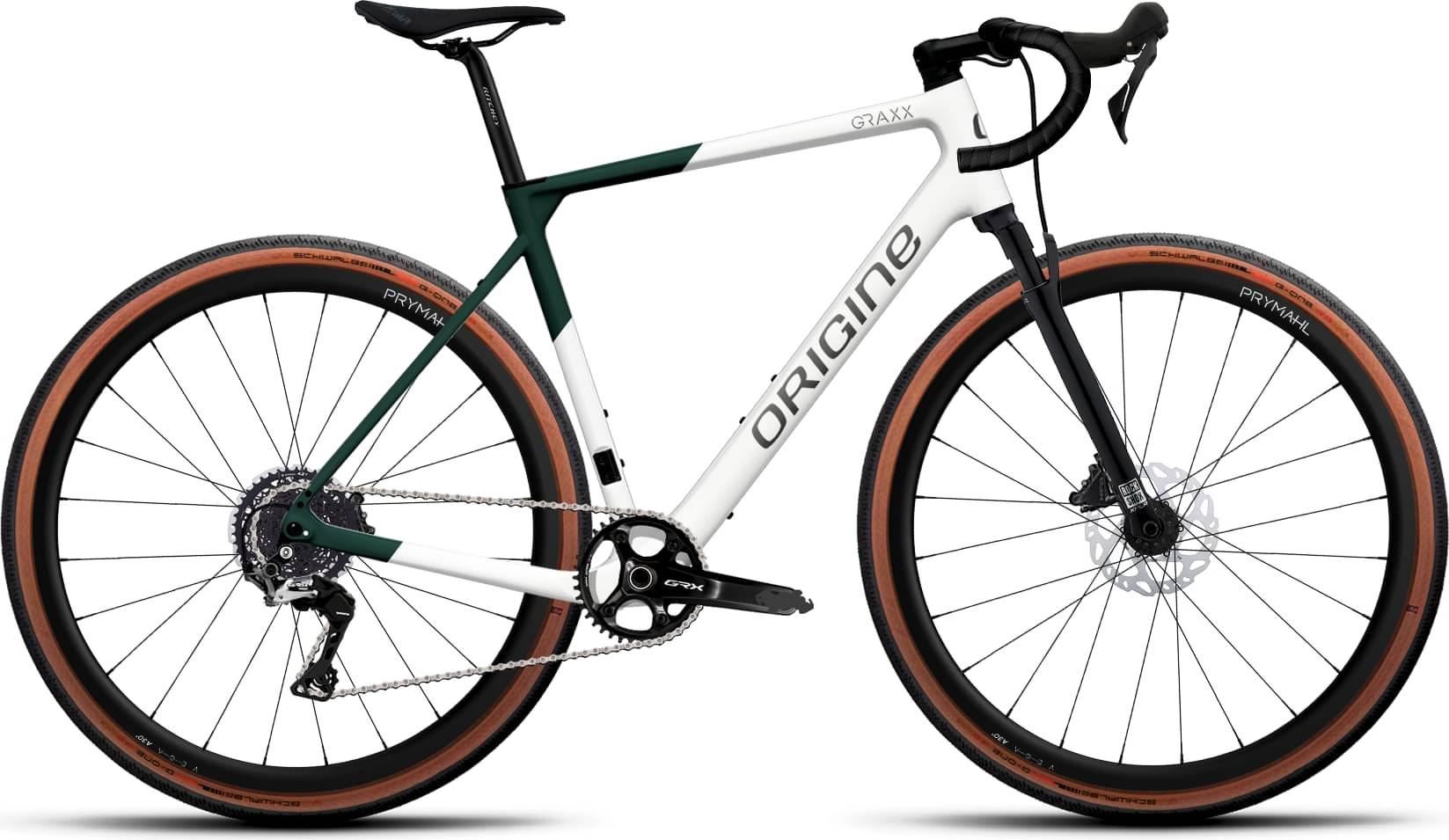

origine Graxx III GTR Explore R46 2023
2023 Road
Estimate price |
4,715$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Travel Front 40mm -
Fork RockShox Rudy Ultimate XPLR
-
Groupset GRX 600 -
Suspension Hardtail -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 172cm
MD
169cm - 180cm
LG
177cm - 188cm
XL
185cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Graxx III GTR Front susp
Suspension Fork
Rudy Ultimate 40mm black Off 51mm
Drivetrain
Rear Derailleur
GRX 600 1x11s
Cassette
XLE11 11-42
Crank
GRX 600 40D single
Pedals
Without pedals
Wheels
Rims
Vega A30 R
Tires
G-One RS Evo TLE 40 Tubeless
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
TK-278A
Handlebar
Road Ergomax Comp
Seat
Saddle
Novus Boost Evo
Seatpost
1B WCS 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.62 mm | 1.66 mm | 1.67 mm |
| Bottom Bracket Height | 289 mm | 289 mm | 289 mm | 289 mm |
| Front Center | 615 mm | 628 mm | 636 mm | 652 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 79 mm | 77 mm | 73 mm | 73 mm |
| Stack | 585 mm | 605 mm | 632 mm | 651 mm |
| Reach | 364 mm | 374 mm | 380 mm | 389 mm |
| Seat Tube Angle | 71.9 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 475 mm | 505 mm | 535 mm | 570 mm |
| Head Tube Angle | 68.9 ° | 69.3 ° | 70 ° | 70 ° |
| Head Tube Length | 140 mm | 160 mm | 185 mm | 205 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1045 mm | 1058 mm | 1066 mm | 1082 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 169 cm | 177 cm | 185 cm |
| Rider Max Height | 172 cm | 180 cm | 188 cm | 200 cm |
About this model
Graxx III GTR Explore R46 is part of the Origine Graxx model. Origine launched 63 bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Origine Graxx III GTO Flatbar R25 2023 is the most affordable bike of this model and has a price of 2302$. On the other hand, Origine Graxx III GTR Explore C89 2023, is the most expensive and costs 7529$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Gravel bikes average price
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Origine released this model in 2023, its price was 4365$. Comparing this to the average Gravel bike price, we see that the price is 77.29% more expensive.
Graxx III GTR Explore R46 components
Fork
Origine Graxx III GTR Explore R46 2023 bike is equipped with the RockShox Rudy Ultimate XPLR fork, and has 40mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When leaving the production line, the Graxx III GTR Explore R46 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Graxx III GTR Explore R46 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 200 cm (5.18 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
