Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset GRX 400, GRX 600 -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 179cm
LG
176cm - 189cm
XL
186cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Graxx
Suspension Fork
OGV II Disc 12x100
Drivetrain
Rear Derailleur
GRX 400 2x10s
Cassette
HG-50 11-34
Crank
GRX 600 46/30
Pedals
Without pedals
Wheels
Rims
Rapid Red 500
Tires
Terra Speed ProTection 35 with tubes
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
CLS L1
Handlebar
Road Ergomax Comp
Seat
Saddle
X-LR Air Cross Light SF
Seatpost
2B WTD 27,2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.5 mm | 1.54 mm | 1.55 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 274 mm |
| Front Center | 604 mm | 617 mm | 626 mm | 642 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 67 mm | 65 mm | 61 mm | 61 mm |
| Stack | 571 mm | 592 mm | 618 mm | 637 mm |
| Reach | 385.11 mm | 394.35 mm | 401.75 mm | 411.3 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 475 mm | 505 mm | 535 mm | 570 mm |
| Head Tube Angle | 71 ° | 71.3 ° | 72 ° | 72 ° |
| Head Tube Length | 140 mm | 160 mm | 185 mm | 205 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1030 mm | 1043 mm | 1052 mm | 1068 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm | 186 cm |
| Rider Max Height | 171 cm | 179 cm | 189 cm | 200 cm |

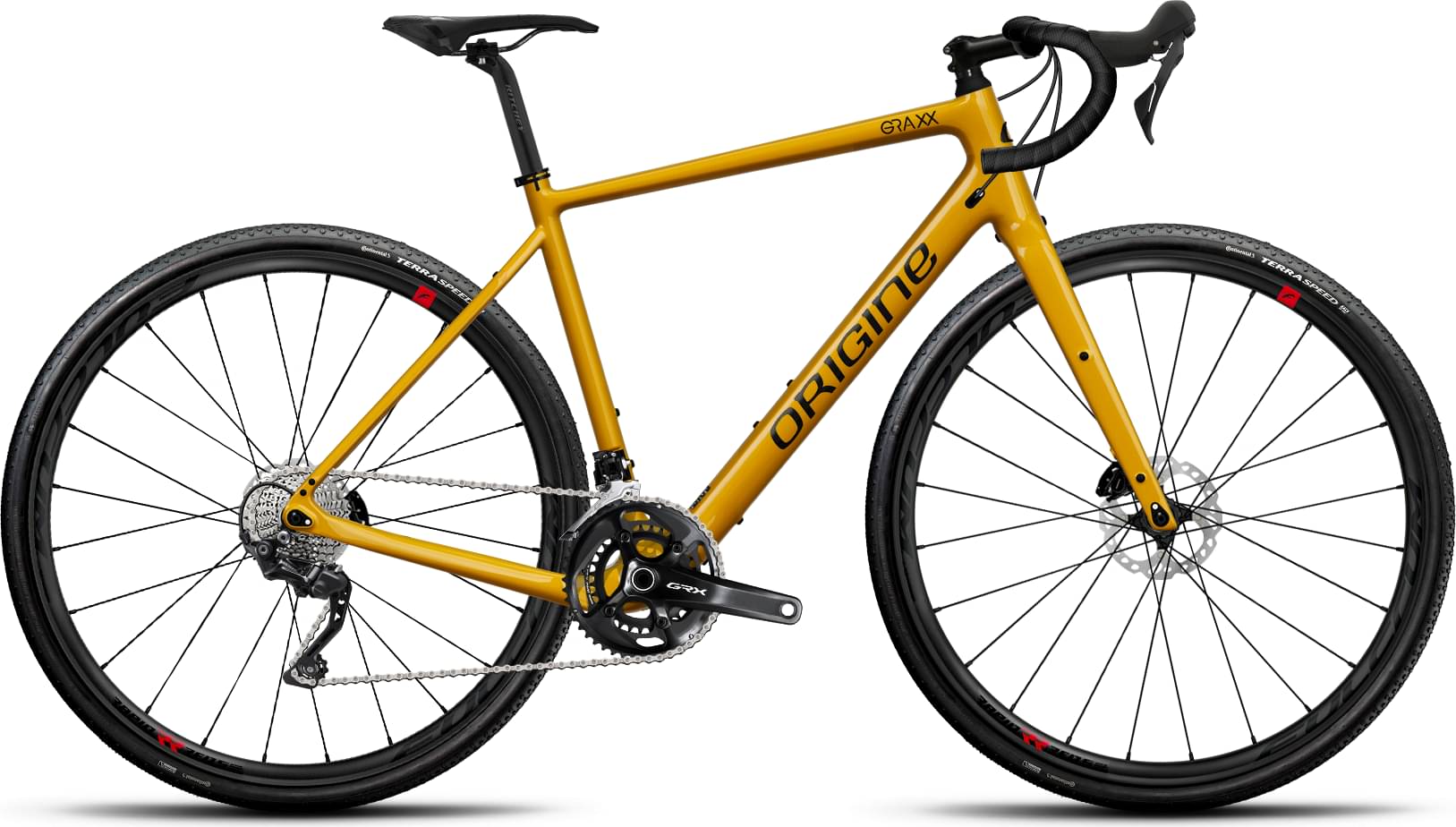

About this model
Graxx R37 is an Origine Graxx model. Origine released 63 bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Origine Graxx III GTO Flatbar R25 2023 is the cheapest bike model and costs 2302$. Origine Graxx III GTR Explore C89 2023 is the most expensive one and costs 7529$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Gravel bikes average price
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2798$. Comparing the average cost of a Gravel bike to this one, you will see that Graxx R37 price is 13.65% more expensive.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When leaving the production line, the Graxx R37 model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Origine Graxx R37 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Graxx R37 comes in 4 sizes, that range from 158 cm – 200 cm (5.18 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
