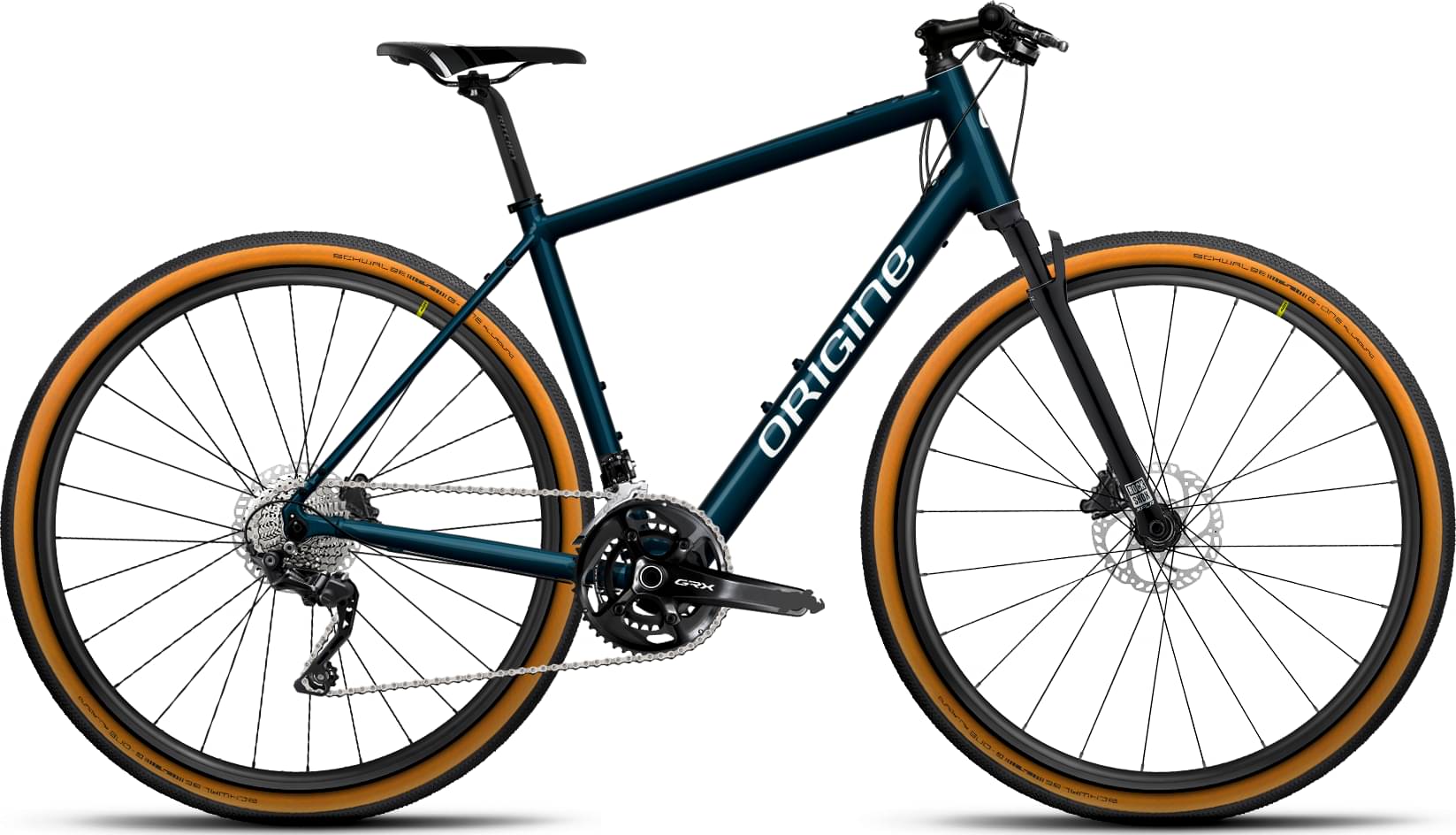

origine Help Explore Flatbar R42 2023
2023 E-bike
Estimate price |
4,722$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Travel Front 40mm -
Fork RockShox Rudy Ultimate XPLR
-
Groupset GRX 400, GRX 600 -
Suspension Hardtail -
Motor MAHLE 55Nm hub-drive -
Battery IX 250Wh intube -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 172cm
MD
169cm - 180cm
LG
177cm - 187cm
XL
184cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Help Front susp Flatbar
Suspension Fork
Rudy Ultimate 40mm black Off 51mm
Drivetrain
Rear Derailleur
GRX 400 2x10s Flatbar
Cassette
HG-50 11-34
Crank
GRX 600 46/30 10s
Pedals
Without pedals
Wheels
Rims
A423 X20
Tires
G-One Allround Perf TLE 40 Classic Skin Chambres
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
CLS L1
Handlebar
Flat 580 mm
Grips
True grip X Comp
Seat
Saddle
X1 Noire
Seatpost
2B WTD 27,2
Motor & Battery
Motor
Mahle X20 e-drive 435Wh
Battery
IX 250Wh intube
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.7 mm | 1.71 mm | 1.74 mm | 1.73 mm |
| Front Center | 610 mm | 626 mm | 643 mm | 664 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 88 mm | 89 mm | 89 mm | 89 mm |
| Stack | 589 mm | 610 mm | 633 mm | 653 mm |
| Reach | 347 mm | 356 mm | 364 mm | 378 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 450 mm | 480 mm | 510 mm | 545 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 150 mm | 175 mm | 200 mm | 220 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1030 mm | 1047 mm | 1064 mm | 1085 mm |
| Bottom Bracket Drop | 62 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 169 cm | 177 cm | 184 cm |
| Rider Max Height | 172 cm | 180 cm | 187 cm | 197 cm |
Model Overview
Help Explore Flatbar R42 is an Origine E Help model. There are 46 e-bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Origine Help Fast Urban Flatbar LS29 2023 is the cheapest e-bike model and costs 3672$. Origine Help Road LR89 2023 is the most expensive one and costs 8130$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry e-bikes average price
According to our math, the average price for a trustworthy Crosscountry e-bike is 2453$. However, this doesn’t mean that if you spend less money on a Crosscountry e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2023 and its price was 4360$. If we compare this with the average Crosscountry e-bike cost we notice that the price is 77.74% more expensive.
Help Explore Flatbar R42 components
Fork
The RockShox Rudy Ultimate XPLR is included from the factory. It has a travel distance of 40mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, Origine Help Explore Flatbar R42 2023, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Origine Help Explore Flatbar R42 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Origine Help Explore Flatbar R42 e-bike has 4 sizes, in the range of 158 cm – 197 cm (5.18 ft – 6.46 ft). In conclusion, you won’t have a problem finding one that suits you.
