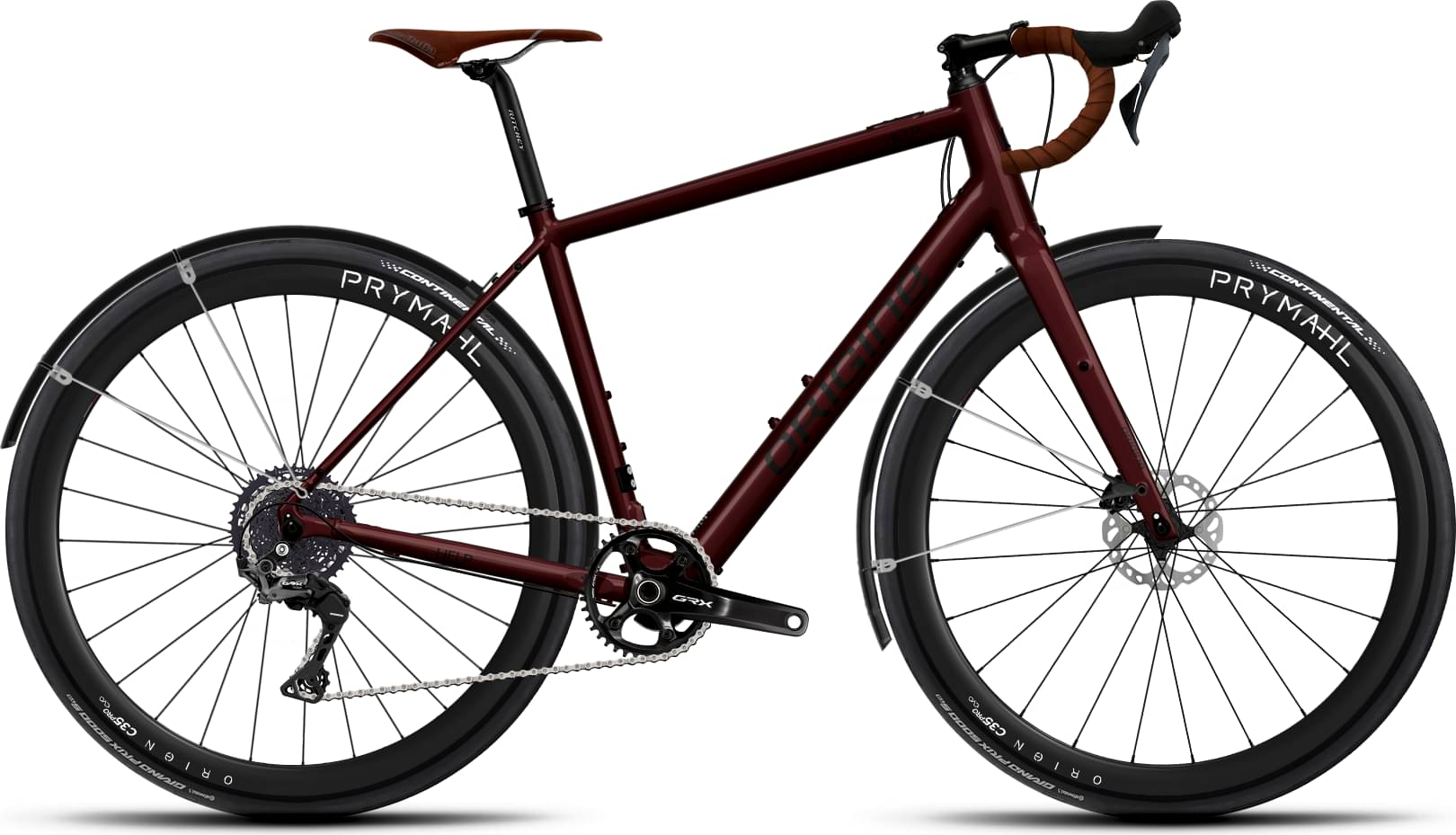

origine Help Fast Urban Dropbar LS68 2022
2022 E-bike
Estimate price |
5,829$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset GRX 800 -
Suspension Rigid -
Motor MAHLE 55Nm hub-drive -
Battery IX 250Wh intube -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 172cm
MD
169cm - 180cm
LG
177cm - 187cm
XL
184cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Help Fast Urban Dropbar
Suspension Fork
OGV II Disc 12x100
Drivetrain
Rear Derailleur
GRX 800 1x11s
Cassette
XLE11 11-42
Crank
GRX 810 42D single
Pedals
Without pedals
Wheels
Rims
Orion e-C35 Pro X20
Tires
GP 5000S Tubeless 30
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
CLS L1
Handlebar
Road Curve WCS
Seat
Saddle
SLR Nubuk leather
Seatpost
1B WCS 27.2
Motor & Battery
Motor
Mahle X20 e-drive 435Wh
Battery
IX 250Wh intube
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.58 mm | 1.61 mm | 1.6 mm |
| Front Center | 599 mm | 616 mm | 632 mm | 653 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 67 mm | 67 mm | 67 mm | 67 mm |
| Stack | 576 mm | 596.5 mm | 620.5 mm | 639 mm |
| Reach | 368.5 mm | 377.5 mm | 386 mm | 400.5 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 450 mm | 480 mm | 510 mm | 545 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 150 mm | 175 mm | 200 mm | 220 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1015 mm | 1033 mm | 1049 mm | 1070 mm |
| Bottom Bracket Drop | 78 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 169 cm | 177 cm | 184 cm |
| Rider Max Height | 172 cm | 180 cm | 187 cm | 197 cm |
About this model
Help Fast Urban Dropbar LS68 is part of the Origine E Help model. Origine released 38 e-bikes variations of this model so far. You can easily view all of the Origine E Help e-bikes models from 2022, here.
Model range prices
The most economical model, the Origine Help Fast Urban Flatbar LS29 2022 has a starting price of 3742$. Origine Help Road LR89 2022 on the other hand is the most expensive at 8517$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for General Urban e-bikes
According to our calculations, the average cost of a General Urban e-bike that is reliable is 2098$. However, even though the average price of a General Urban e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5396$. In conclusion, this e-bike price is 157.2% higher than the price of the average General Urban e-bike.
Overview of components
Wheels size
When leaving the production line, the Help Fast Urban Dropbar LS68 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 197 cm (5.18 ft – 6.46 ft). In conclusion, it won’t take much to find one that’s right for you.
