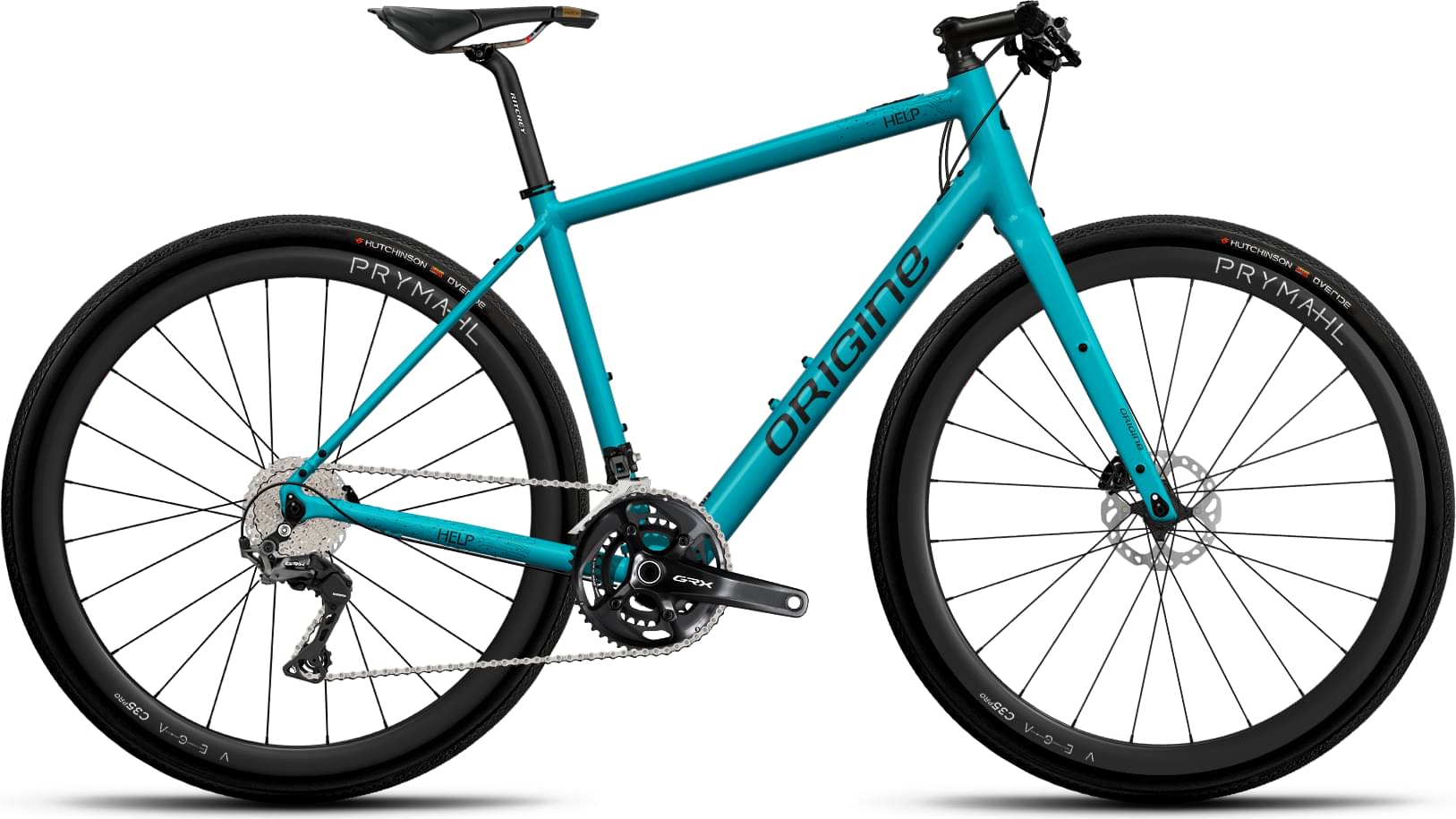

origine Help Gravel Flatbar LS87 2022
2022 E-bike
Estimate price |
5,323$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset GRX 800 -
Suspension Rigid -
Motor MAHLE 55Nm hub-drive -
Battery IX 250Wh intube -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 172cm
MD
169cm - 180cm
LG
177cm - 187cm
XL
184cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Help Gravel Flatbar
Suspension Fork
OGV II Disc 12x100
Drivetrain
Rear Derailleur
GRX 800 2x11s Flatbar
Cassette
R7000 11-32
Crank
Gossamer Pro 2X 46/30 H
Pedals
Without pedals
Wheels
Rims
Vega e-C35 Pro X20
Tires
Overide 700x35 Tubeless
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
CLS L2
Handlebar
MTN 2x Carbon
Grips
Superlogic
Seat
Saddle
Scratch M5 AGX Gravel rail Tirox
Seatpost
1B WCS Carbon 27.2
Motor & Battery
Motor
Mahle X20 e-drive 435Wh
Battery
IX 250Wh intube
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.58 mm | 1.61 mm | 1.6 mm |
| Front Center | 599 mm | 616 mm | 632 mm | 653 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 67 mm | 67 mm | 67 mm | 67 mm |
| Stack | 576 mm | 596.5 mm | 620.5 mm | 639 mm |
| Reach | 368.5 mm | 377.5 mm | 386 mm | 400.5 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 450 mm | 480 mm | 510 mm | 545 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 150 mm | 175 mm | 200 mm | 220 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1015 mm | 1033 mm | 1049 mm | 1070 mm |
| Bottom Bracket Drop | 78 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 169 cm | 177 cm | 184 cm |
| Rider Max Height | 172 cm | 180 cm | 187 cm | 197 cm |
Model Overview
Help Gravel Flatbar LS87 is an Origine E Help model. 38 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Origine Help Fast Urban Flatbar LS29 2022 is the cheapest e-bike model and costs 3742$. Origine Help Road LR89 2022 is the most expensive one and costs 8517$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Hybrid e-bikes
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4928$. Comparing the average cost of a Hybrid e-bike to this one, you will see that Help Gravel Flatbar LS87 price is 98.71% higher.
Help Gravel Flatbar LS87 components
Wheels size
When it comes to wheels, the Help Gravel Flatbar LS87 e-bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Origine Help Gravel Flatbar LS87 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 197 cm (5.18 ft – 6.46 ft). In conclusion, you won’t have a problem finding one that suits you.
