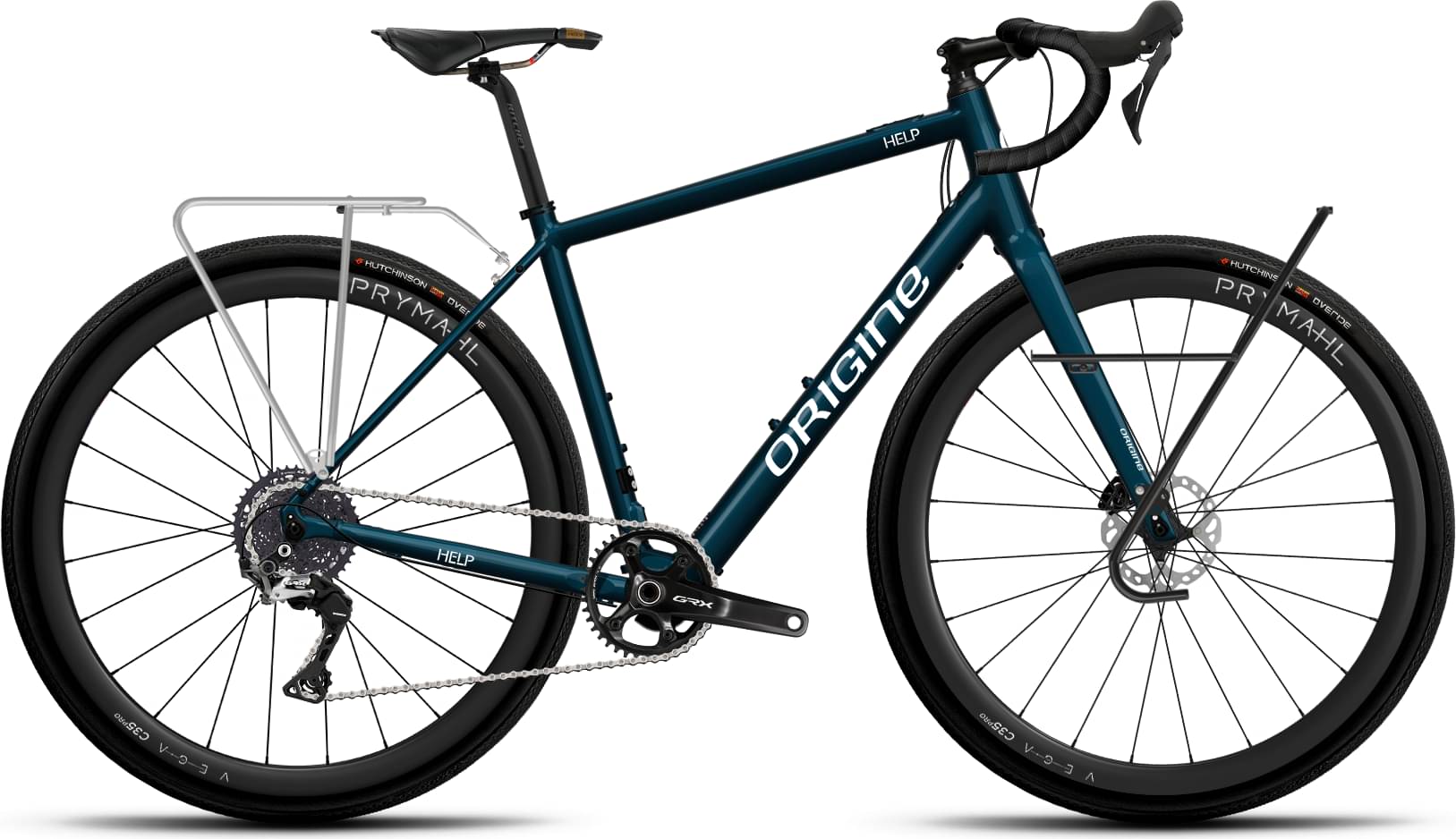

origine Help Gravel LS68 2022
2022 E-bike
Estimate price |
5,764$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset GRX 600, GRX 800 -
Suspension Rigid -
Motor MAHLE 55Nm hub-drive -
Battery IX 250Wh intube -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 172cm
MD
169cm - 180cm
LG
177cm - 187cm
XL
184cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Help Gravel
Suspension Fork
OGV II Disc 12x100
Drivetrain
Rear Derailleur
GRX 600 1x11s
Cassette
XLE11 11-42
Crank
GRX 810 42D single
Pedals
Without pedals
Wheels
Rims
Vega e-C35 Pro X20
Tires
Overide 700x35 Tubeless
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
CLS L1
Handlebar
Road Ergomax Comp
Seat
Saddle
Scratch M5 AGX Gravel rail Tirox
Seatpost
2B WTD 27,2
Motor & Battery
Motor
Mahle X20 e-drive 435Wh
Battery
IX 250Wh intube
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.58 mm | 1.61 mm | 1.6 mm |
| Bottom Bracket Height | 271 mm | 274 mm | 274 mm | 274 mm |
| Front Center | 599 mm | 616 mm | 632 mm | 653 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 67 mm | 67 mm | 67 mm | 67 mm |
| Stack | 576 mm | 596.5 mm | 620.5 mm | 639 mm |
| Reach | 368.5 mm | 377.5 mm | 386 mm | 400.5 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 450 mm | 480 mm | 510 mm | 545 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 150 mm | 175 mm | 200 mm | 220 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1015 mm | 1033 mm | 1049 mm | 1070 mm |
| Bottom Bracket Drop | 78 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 169 cm | 177 cm | 184 cm |
| Rider Max Height | 172 cm | 180 cm | 187 cm | 197 cm |
About this model
Help Gravel LS68 completes the Origine E Help model. There are 38 e-bikes that carry this model name. Take a sneak peek at all Origine E Help e-bikes models from 2022, by clicking here.
Model range prices
Origine Help Fast Urban Flatbar LS29 2022 is the most affordable e-bike of this model and has a price of 3742$. On the other hand, Origine Help Road LR89 2022, is the most expensive and costs 8517$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Gravel e-bikes
If you want to purchase a solid Gravel e-bike, it is important to know that the average cost is 3642$. However, even though the average price of a Gravel e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Origine released this model in 2022, its price was 5261$. Comparing this to the average Gravel e-bike price, we see that the price is 44.45% higher.
Overview of components
Fork material
Help Gravel LS68 has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The wheels on Help Gravel LS68 are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Help Gravel LS68 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 197 cm (5.18 ft – 6.46 ft). In conclusion, you won’t have a problem finding one that suits you.
