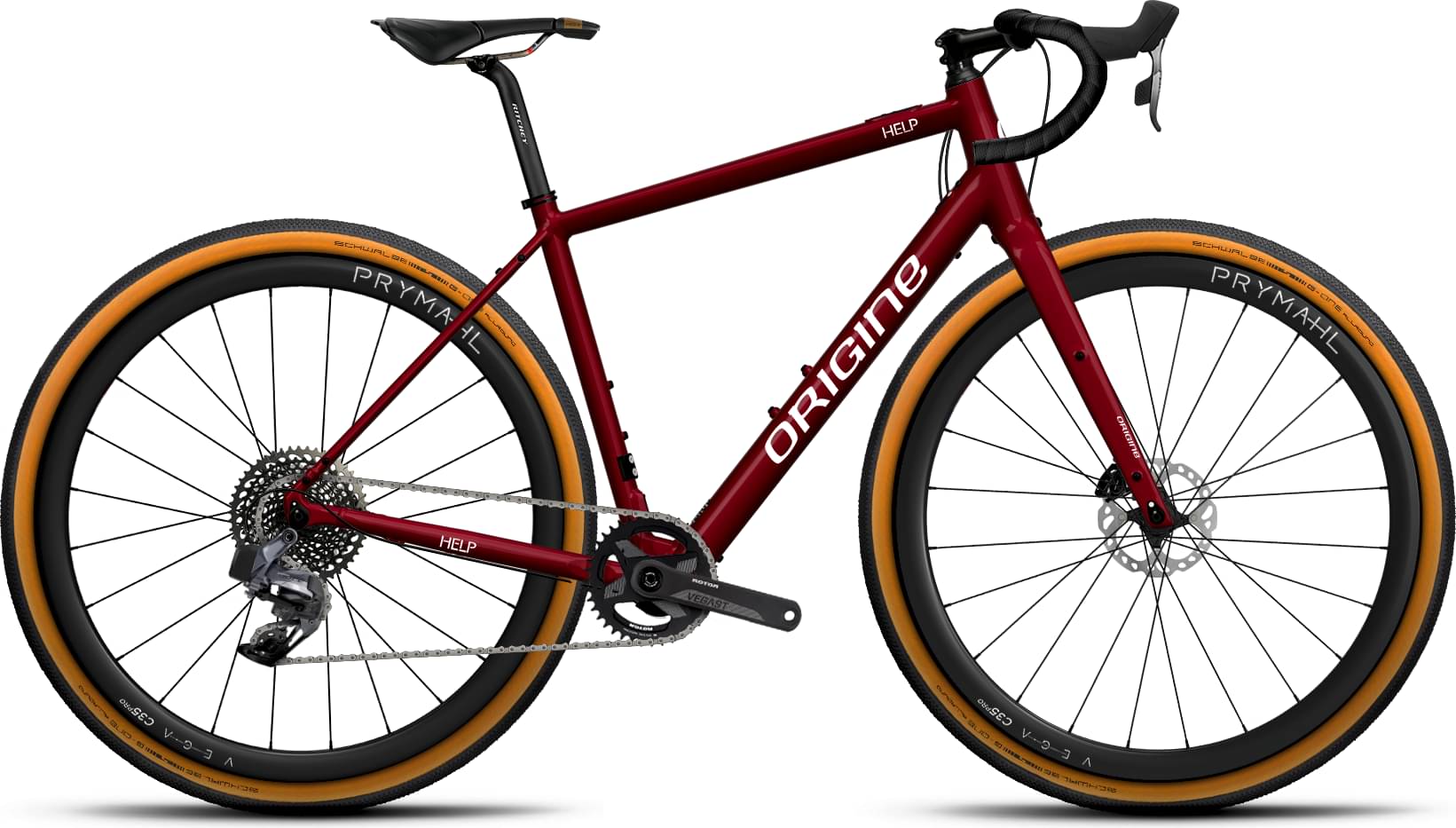

origine Help Gravel LS88 2022
2022 E-bike
Estimate price |
7,099$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force XPLR eTap -
Suspension Rigid -
Motor MAHLE 55Nm hub-drive -
Battery IX 250Wh intube -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 172cm
MD
169cm - 180cm
LG
177cm - 187cm
XL
184cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Help Gravel
Suspension Fork
OGV II Disc 12x100
Drivetrain
Rear Derailleur
Force XPLR eTap AXS 1x12v Disc H
Cassette
Force 12v AXS XPLR 10-44
Crank
Vegast 40D Universal H
Pedals
Without pedals
Wheels
Rims
Vega e-C35 Pro X20
Tires
G-One Allround Perf TLE 40 Classic Skin Chambres
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
CLS L1
Handlebar
Road Ergomax WCS
Seat
Saddle
Scratch M5 AGX Gravel rail Tirox
Seatpost
1B WCS Carbon 27.2
Motor & Battery
Motor
Mahle X20 e-drive 435Wh
Battery
IX 250Wh intube
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.58 mm | 1.61 mm | 1.6 mm |
| Bottom Bracket Height | 271 mm | 274 mm | 274 mm | 274 mm |
| Front Center | 599 mm | 616 mm | 632 mm | 653 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 67 mm | 67 mm | 67 mm | 67 mm |
| Stack | 576 mm | 596.5 mm | 620.5 mm | 639 mm |
| Reach | 368.5 mm | 377.5 mm | 386 mm | 400.5 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 450 mm | 480 mm | 510 mm | 545 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 150 mm | 175 mm | 200 mm | 220 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1015 mm | 1033 mm | 1049 mm | 1070 mm |
| Bottom Bracket Drop | 78 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 169 cm | 177 cm | 184 cm |
| Rider Max Height | 172 cm | 180 cm | 187 cm | 197 cm |
Model Overview
Help Gravel LS88 completes the Origine E Help model. 38 e-bikes variations carry this model name so far. Take a sneak peek at all Origine E Help e-bikes models from 2022, by clicking here.
Model range prices
Origine Help Fast Urban Flatbar LS29 2022 is the most economical model, with a starting price of 3742$. Origine Help Road LR89 2022 on the other hand costs 8517$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Gravel e-bikes average price
According to our math, the average price for a trustworthy Gravel e-bike is 3642$. However, you could also get a good Gravel e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6571$. If we compare this with the average Gravel e-bike cost we notice that the price is 80.42% more expensive.
Overview of components
Fork material
The fork on this e-bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
As for the wheels, Origine Help Gravel LS88 2022, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Origine Help Gravel LS88 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 197 cm (5.18 ft – 6.46 ft). In conclusion, you won’t have a problem finding one that suits you.
