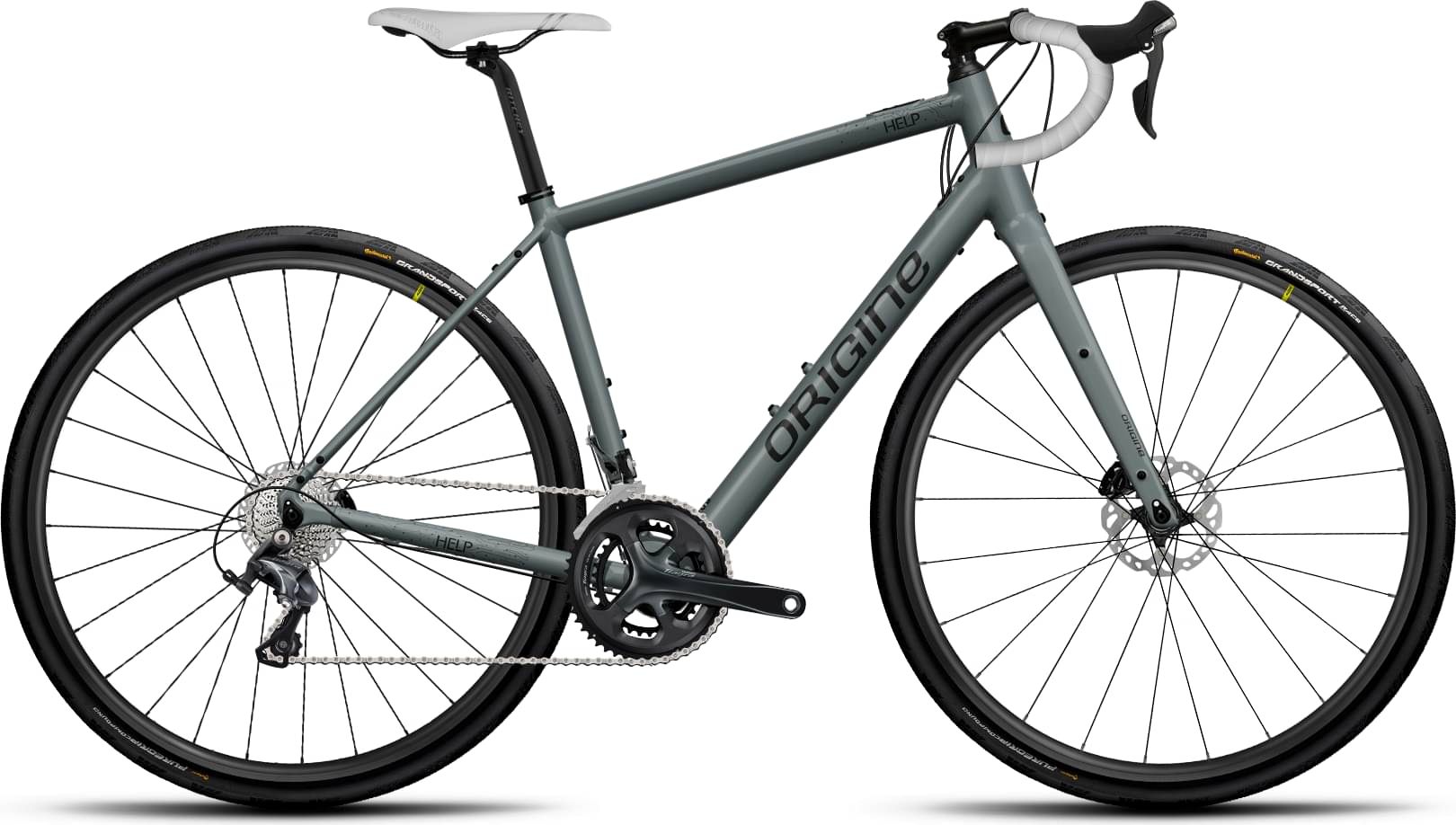

origine Help Road LS29 2022
2022 E-bike
Estimate price |
4,336$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Motor MAHLE 55Nm hub-drive -
Battery IX 250Wh intube -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 172cm
MD
169cm - 180cm
LG
177cm - 187cm
XL
184cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Help Road
Suspension Fork
OGV II Disc 12x100
Drivetrain
Rear Derailleur
Tiagra 4720 Disc H
Cassette
Tiagra 12-28
Crank
Tiagra Compact 50/34 H
Pedals
Without pedals
Wheels
Rims
A423 X20
Tires
Grand Sport Race 32
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
CLS L1
Handlebar
Road Curve Comp
Seat
Saddle
X1 White
Seatpost
2B WTD 27,2
Motor & Battery
Motor
Mahle X20 e-drive 435Wh
Battery
IX 250Wh intube
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.58 mm | 1.61 mm | 1.6 mm |
| Bottom Bracket Height | 258 mm | 261 mm | 261 mm | 261 mm |
| Front Center | 599 mm | 616 mm | 632 mm | 653 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 63 mm | 63 mm | 63 mm | 63 mm |
| Stack | 576 mm | 596.5 mm | 620.5 mm | 639 mm |
| Reach | 368.5 mm | 377.5 mm | 386 mm | 400.5 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 450 mm | 480 mm | 510 mm | 545 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 150 mm | 175 mm | 200 mm | 220 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1015 mm | 1033 mm | 1049 mm | 1070 mm |
| Bottom Bracket Drop | 78 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 169 cm | 177 cm | 184 cm |
| Rider Max Height | 172 cm | 180 cm | 187 cm | 197 cm |
Model Overview
Help Road LS29 completes the Origine E Help model. Origine released 38 e-bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the Origine Help Fast Urban Flatbar LS29 2022 has a starting price of 3742$. Origine Help Road LR89 2022 on the other hand is the most expensive at 8517$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Race e-bikes
Our math shows that the average cost of a dependable Race e-bike is 4156$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2022 and its price was 3957$. Comparing this to the average Race e-bike price, we see that the price is 5.03% lower.
Help Road LS29 components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When leaving the production line, the Help Road LS29 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Origine Help Road LS29 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Help Road LS29 comes in 4 sizes, that range from 158 cm – 197 cm (5.18 ft – 6.46 ft). In conclusion, finding one for you shouldn’t be a problem.
