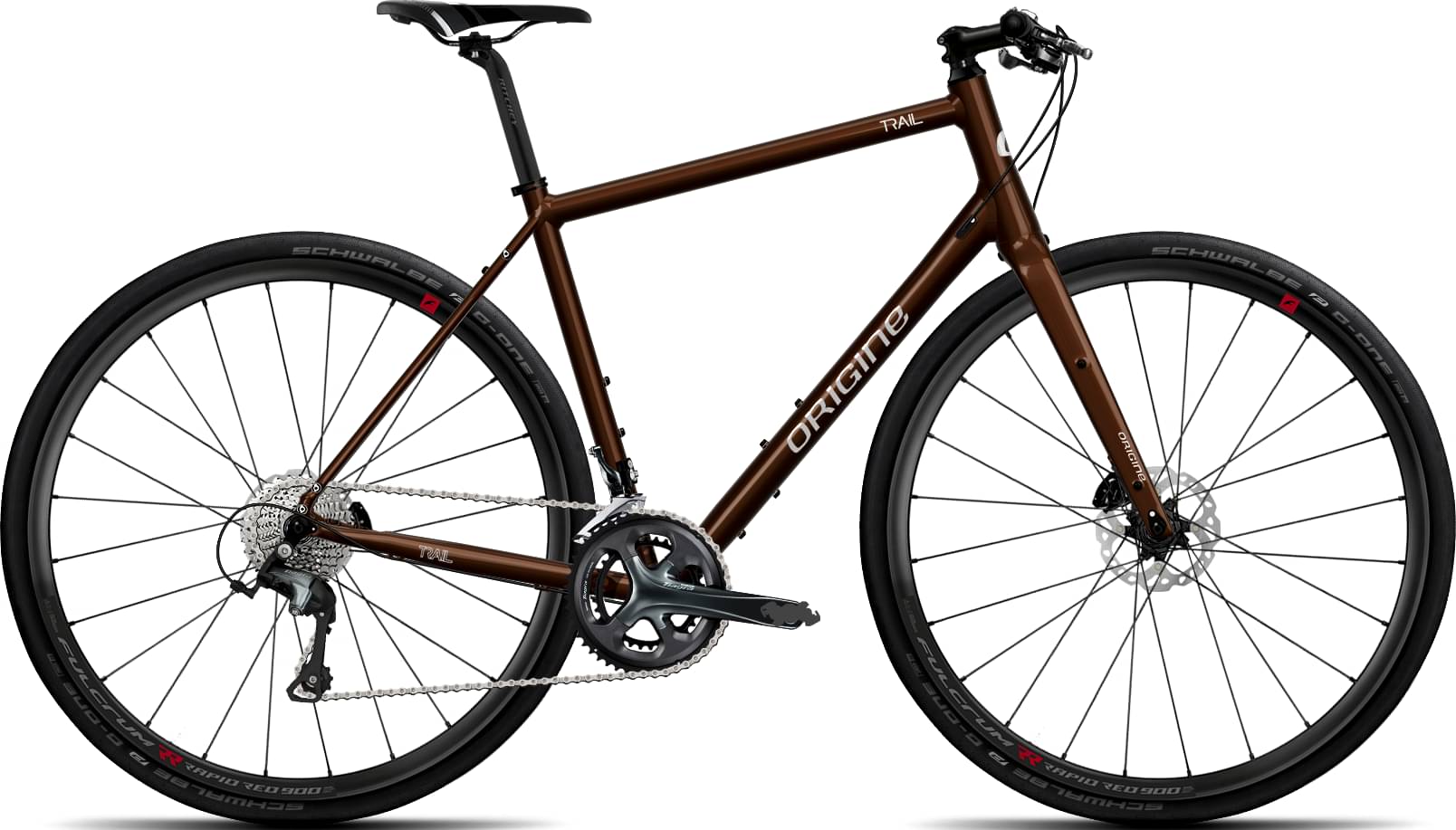

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Tiagra -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 172cm
MD
169cm - 180cm
LG
177cm - 187cm
XL
184cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Trail Gravel Flatbar
Suspension Fork
OGV II Disc 12x100
Drivetrain
Rear Derailleur
Tiagra Fitness disc
Cassette
HG-50 11-34
Crank
Tiagra Compact 50/34
Pedals
Without pedals
Wheels
Rims
Rapid Red 900
Tires
G-One Speed Perf 35 Race Guard
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
CLS L2
Handlebar
Flat 580 mm
Grips
True grip X Comp
Seat
Saddle
X1 Noire
Seatpost
2B WTD 27,2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.58 mm | 1.62 mm | 1.64 mm |
| Front Center | 589 mm | 599 mm | 610 mm | 620 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 69 mm | 66 mm | 63 mm | 60 mm |
| Stack | 562 mm | 586 mm | 611 mm | 631 mm |
| Reach | 363 mm | 370 mm | 377 mm | 385 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 450 mm | 480 mm | 510 mm | 545 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 150 mm | 175 mm | 200 mm | 220 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1005 mm | 1016 mm | 1027 mm | 1037 mm |
| Bottom Bracket Drop | 76 mm | 75 mm | 74 mm | 73 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 169 cm | 177 cm | 184 cm |
| Rider Max Height | 172 cm | 180 cm | 187 cm | 197 cm |
Model Overview
Trail F26 is part of the Origine Trail model. Origine launched 16 bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Origine Trail F26 2023 is the most affordable bike of this model and has a price of 1695$. On the other hand, Origine Trail T56 2023, is the most expensive and costs 2706$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Gravel bikes
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Origine Trail F26 price was 1695$. If we compare this with the average Gravel bike cost we notice that the price is 45.25% lower.
Trail F26 components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When leaving the production line, the Trail F26 model has aluminum wheels. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Origine Trail F26 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 197 cm (5.18 ft – 6.46 ft). In conclusion, you won’t have a problem finding one that suits you.
