Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Sizing
Recommended size guide.
XS
150cm - 166cm
SM
163cm - 175cm
MD
172cm - 181cm
LG
178cm - 187cm
XL
184cm - 192cm
XXL
189cm - 202cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Tuxedo
Suspension Fork
Axxome II Carbone U.D (380 g)
Drivetrain
Rear Derailleur
Tiagra 10s
Cassette
Tiagra 12-28
Crank
Tiagra Compact 50/34
Pedals
Without pedals
Wheels
Rims
Calima C17
Tires
Ultra Sport 25
Brakes
Brakes
Tiagra 4700
Cockpit
Stem
CLS L2
Handlebar
Road Curve Comp
Seat
Saddle
X1 White
Seatpost
2B WTD 27,2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.45 mm | 1.46 mm | 1.48 mm | 1.47 mm | 1.51 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 265 mm | 265 mm | 266 mm | 266 mm |
| Front Center | 568 mm | 574 mm | 585 mm | 590 mm | 610 mm | 619 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 65 mm | 62 mm | 62 mm | 59 mm | 59 mm | 56 mm |
| Stack | 527 mm | 539 mm | 552 mm | 567 mm | 586 mm | 612 mm |
| Reach | 366 mm | 373 mm | 379 mm | 384 mm | 399 mm | 405 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 500 mm | 530 mm | 555 mm | 580 mm | 610 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 72 ° | 72.5 ° | 72.5 ° | 73 ° |
| Head Tube Length | 125 mm | 135 mm | 150 mm | 165 mm | 185 mm | 210 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 967 mm | 973 mm | 984 mm | 989 mm | 1010 mm | 1019 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 71 mm | 71 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 163 cm | 172 cm | 178 cm | 184 cm | 189 cm |
| Rider Max Height | 166 cm | 175 cm | 181 cm | 187 cm | 192 cm | 202 cm |
About this model

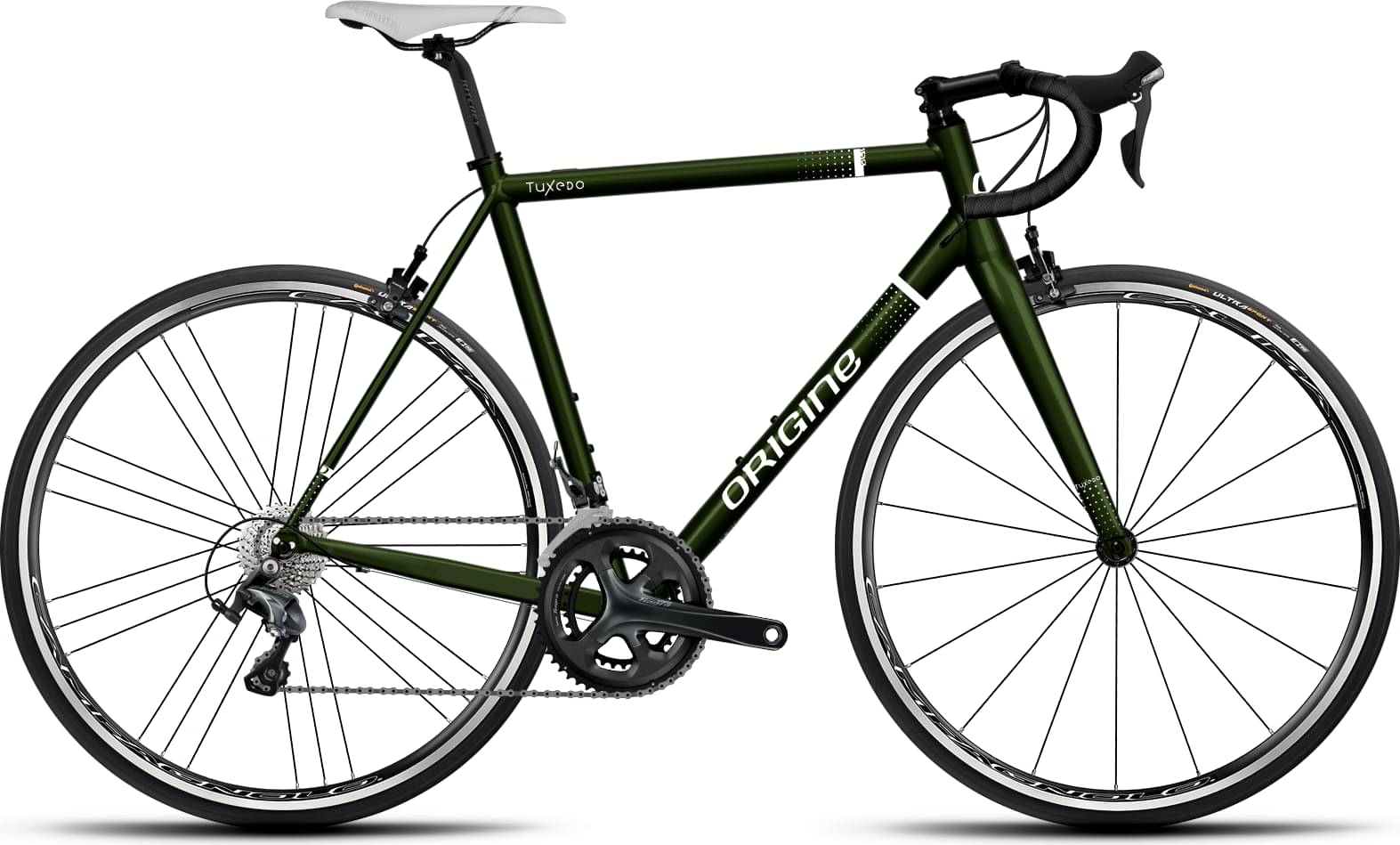

Tuxedo LS19 is part of the Origine Tuxedo model. Origine launched 20 bikes of this model so far. Take a sneak peek at all Origine Tuxedo bikes models from 2022, by clicking here.
Model range prices
Origine Tuxedo FS15 2022 is the most affordable bike of this model and has a price of 1281$. On the other hand, Origine Tuxedo LR69 2022, is the most expensive and costs 2780$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Race bikes
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Origine Tuxedo LS19 price was 1392$. Comparing this to the average Race bike price, we see that the price is 140.66% lower.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When leaving the production line, the Tuxedo LS19 model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 150 cm – 202 cm (4.92 ft – 6.63 ft). In short, it won’t be difficult to find the right one for you.
