Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Sizing
Recommended size guide.
XS
150cm - 166cm
SM
163cm - 175cm
MD
172cm - 181cm
LG
178cm - 187cm
XL
184cm - 192cm
XXL
189cm - 202cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Tuxedo
Suspension Fork
Axxome II Carbone U.D (380 g)
Drivetrain
Rear Derailleur
Tiagra 10s
Cassette
Tiagra 12-28
Crank
Tiagra Compact 50/34
Pedals
Without pedals
Wheels
Rims
Calima C17
Tires
Ultra Sport 25
Brakes
Brakes
Tiagra 4700
Cockpit
Stem
CLS L2
Handlebar
Road Curve Comp
Seat
Saddle
X1 White
Seatpost
2B WTD 27,2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.45 mm | 1.46 mm | 1.48 mm | 1.47 mm | 1.51 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 265 mm | 265 mm | 266 mm | 266 mm |
| Front Center | 568 mm | 574 mm | 585 mm | 590 mm | 610 mm | 619 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 65 mm | 62 mm | 62 mm | 59 mm | 59 mm | 56 mm |
| Stack | 527 mm | 539 mm | 552 mm | 567 mm | 586 mm | 612 mm |
| Reach | 366 mm | 373 mm | 379 mm | 384 mm | 399 mm | 405 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 500 mm | 530 mm | 555 mm | 580 mm | 610 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 72 ° | 72.5 ° | 72.5 ° | 73 ° |
| Head Tube Length | 125 mm | 135 mm | 150 mm | 165 mm | 185 mm | 210 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 967 mm | 973 mm | 984 mm | 989 mm | 1010 mm | 1019 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 71 mm | 71 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 163 cm | 172 cm | 178 cm | 184 cm | 189 cm |
| Rider Max Height | 166 cm | 175 cm | 181 cm | 187 cm | 192 cm | 202 cm |

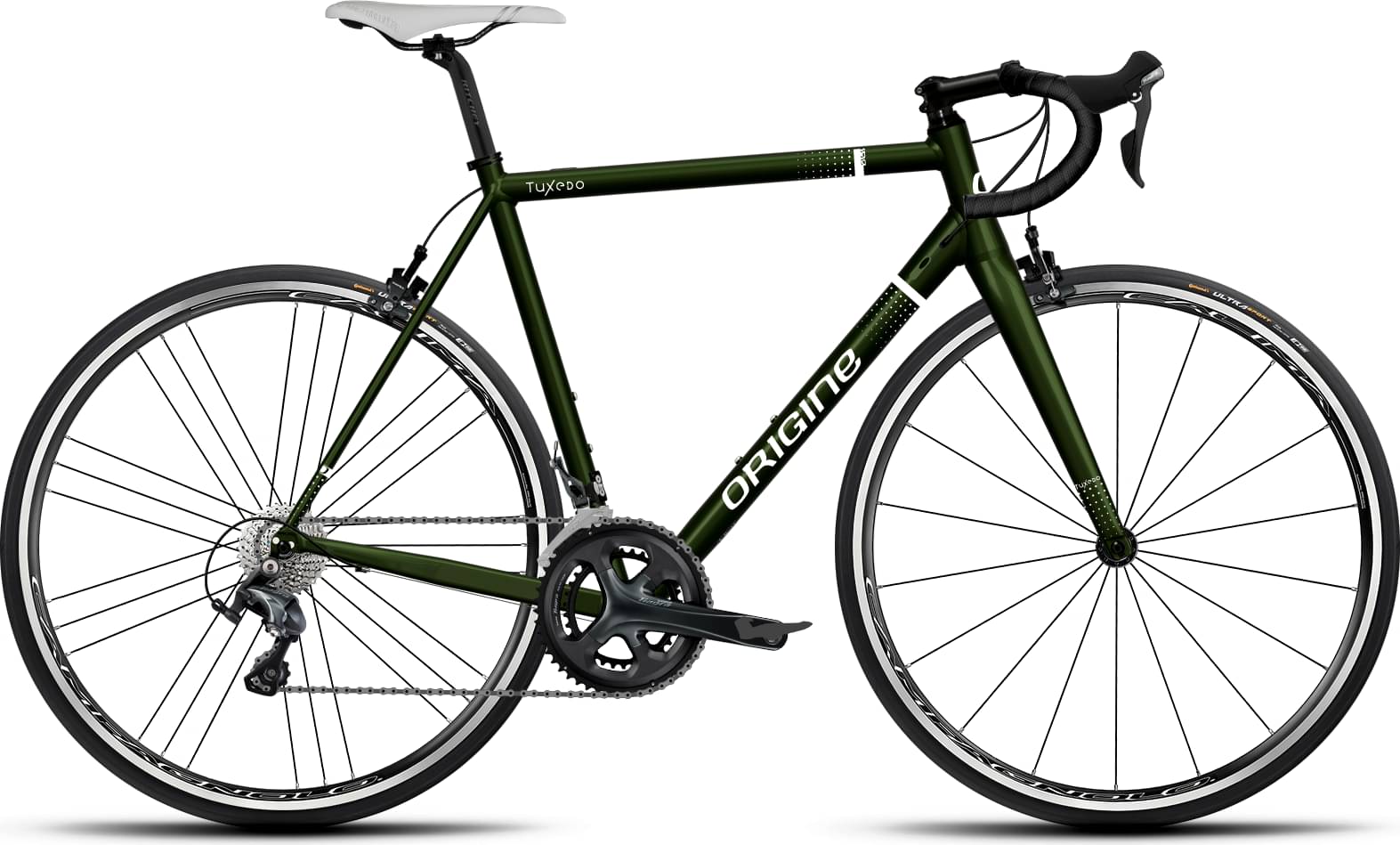

About this model
Tuxedo LS19 belongs to the Origine Tuxedo model. Origine released 20 bikes variations of this model so far. Take a sneak peek at all Origine Tuxedo bikes models from 2023, by clicking here.
Model range prices
Origine Tuxedo FS15 2023 is the cheapest bike model and costs 1227$. Origine Tuxedo LR69 2023 is the most expensive one and costs 2684$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Race bikes
If you want an acceptable Race bike you should know that the average price is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1330$. Comparing the average cost of a Race bike to this one, you will see that Tuxedo LS19 price is 151.88% lower.
Tuxedo LS19 components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The wheels on Tuxedo LS19 are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Tuxedo LS19 has Rim brakes. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
Sizes
This bike is available in 6 sizes. They vary from 150 cm – 202 cm (4.92 ft – 6.63 ft). In conclusion, you won’t have a problem finding one that suits you.
