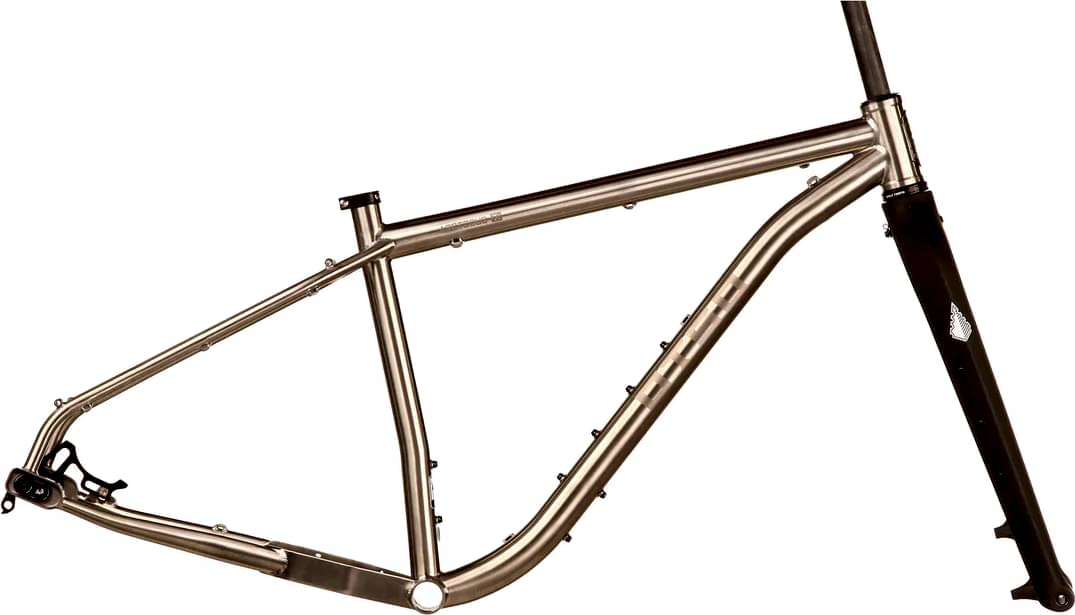

Otso Arctodus Ti Frame 2023
2023 Mountain
Estimate price |
3,545$
Weight | 2.43 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Titanium -
Wheels 26"
Sizing
Recommended size guide.
SM
144cm - 167cm
MD
164cm - 177cm
LG
174cm - 187cm
XL
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium with Tuning Chip™? dropout system
Suspension Fork
No Fork
Drivetrain
Bottom Bracket
100mm BSA threaded
Cockpit
Headset
Wolf Tooth Performance Headset - Black
Seat
Seatpost
Ø31.6mm, accommodates internally routed dropper post
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.463 mm | 1.395 mm | 1.356 mm | 1.377 mm |
| Bottom Bracket Height | 263 mm | 263 mm | 263 mm | 263 mm |
| Front Center | 691 mm | 712 mm | 734 mm | 769 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 94 mm | 94 mm | 94 mm | 94 mm |
| Stack | 607 mm | 607 mm | 617 mm | 654 mm |
| Reach | 415 mm | 435 mm | 455 mm | 475 mm |
| Top Tube Length | 589 mm | 610 mm | 632 mm | 663 mm |
| Seat Tube Length | 380 mm | 420 mm | 465 mm | 510 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 140 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1119 mm | 1140 mm | 1162 mm | 1197 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 80 mm |
| Standover Height | 707 mm | 736 mm | 773 mm | 810 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 144 cm | 164 cm | 174 cm | 184 cm |
| Rider Max Height | 167 cm | 177 cm | 187 cm | 200 cm |
About this model
Arctodus Ti Frame is an Otso Arctodus model. Otso released 16 frames variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Otso Arctodus Frameset 2023 has a starting price of 1495$. Otso Arctodus Ti Frame 2023 on the other hand is the most expensive at 3545$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Fatbike frames
If you want an acceptable Fatbike frame you should know that the average price is 1277$. However, this doesn’t mean that if you spend less money on a Fatbike frame, you couldn’t get a decent one. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
This frame was released in 2023 and its price was 3545$. Doing a quick comparison, we notice that Arctodus Ti Frame price is 177.6% more expensive than the average cost of a Fatbike frame.
Average weight for Fatbike frames
On a deeper look, we notice that the average weight of a Fatbike frame is 2.73 kg (6.02 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Arctodus Ti Frame weighs 2.43 kg (5.36 lbs) and is considerably lighter than the average. To sum up, it’s 12.35% lighter than the average weight of Fatbike frames.
Arctodus Ti Frame components
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 144 cm – 200 cm (4.72 ft – 6.56 ft). In short, you can easily find one that suits you.
Dropper post
Otso Arctodus Ti Frame includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
