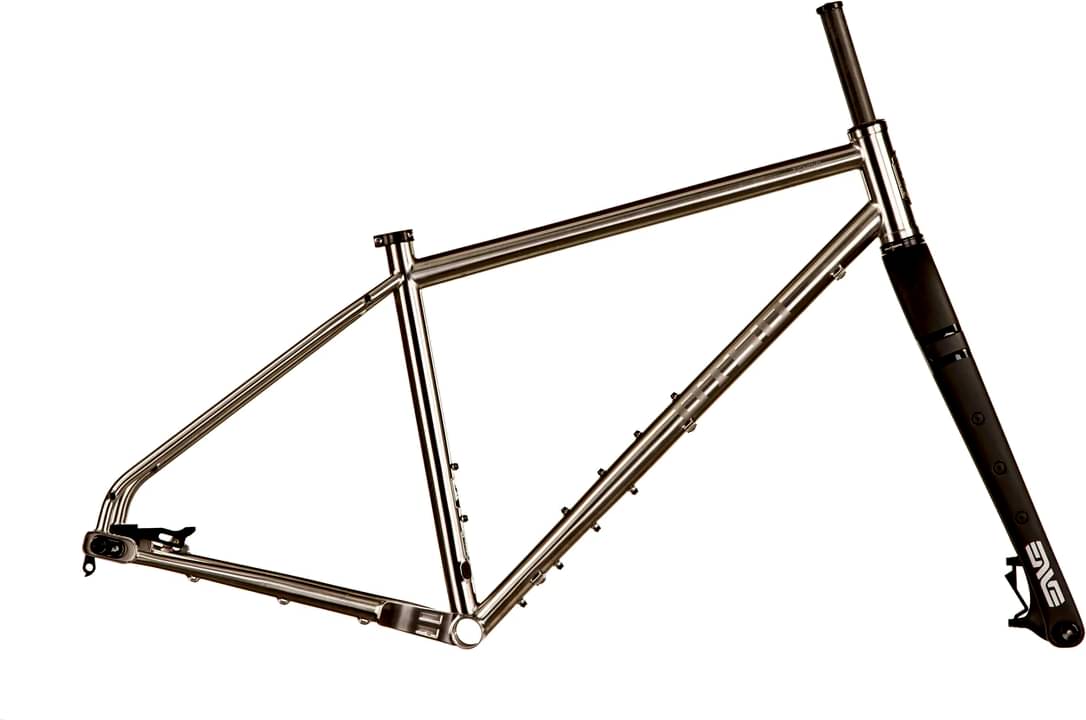

Otso Fenrir Stainless Frameset 2023
2023 Mountain
Estimate price |
2,550$
Weight | 2.58 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Steel -
Wheels 29" -
Fork ENVE -
Groupset GRX 800, GRX 600 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 162cm
SM
160cm - 172cm
MD
169cm - 182cm
LG
179cm - 192cm
XL
189cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Custom butted austenitic stainless steel frame
Suspension Fork
Carbon Enve Mountain Fork, 15mm thru axle
Drivetrain
Rear Derailleur
Shimano GRX 810, 11-speed
Front Derailleur
N/A
Shift Levers
Shimano GRX 600, 11-speed
Cassette
Shimano SLX, 11-46T, 11-speed
Crank
Race Face Aeffect
Bottom Bracket
Shimano english thread BSA, Ø73mm
Wheels
Tires
Maxxis Aspen 29" x 2.4"
Brakes
Brakes
Shimano GRX 600 hydraulic
Cockpit
Handlebar
Lithic Corundum aluminum compact drop with 16° flare
Headset
ZS44/28.6 upper, EC44/40.0 lower
Seat
Seatpost
Ø31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.51 mm | 1.5 mm | 1.51 mm | 1.5 mm |
| Bottom Bracket Height | 306 mm | 306 mm | 306 mm | 306 mm | 306 mm |
| Front Center | 669 mm | 689 mm | 709 mm | 729 mm | 749 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 88 mm | 88 mm | 88 mm | 88 mm | 88 mm |
| Stack | 589 mm | 599 mm | 617 mm | 636 mm | 654 mm |
| Reach | 381 mm | 397 mm | 410 mm | 422 mm | 435 mm |
| Top Tube Length | 541 mm | 559 mm | 577 mm | 594 mm | 612 mm |
| Seat Tube Length | 360 mm | 400 mm | 450 mm | 490 mm | 530 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 90 mm | 100 mm | 120 mm | 140 mm | 160 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1084 mm | 1104 mm | 1124 mm | 1144 mm | 1164 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 748 mm | 771 mm | 804 mm | 832 mm | 860 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 147 cm | 160 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 162 cm | 172 cm | 182 cm | 192 cm | 198 cm |
About this model
Fenrir Stainless Frameset is an Otso Fenrir model. Otso released 40 frames variations of this model so far. You can easily view all of the Otso Fenrir frames models from 2023, here.
Model range prices
Otso Fenrir Stainless Frame 2023 is the most affordable frame of this model and has a price of 2550$. On the other hand, Otso Fenrir Ti Frameset 2023, is the most expensive and costs 3550$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry frames average price
If you want to purchase a solid Crosscountry frame, it is important to know that the average cost is 1689$. However, you could also get a good Crosscountry frame even if you pay a lower amount than the average price. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
At the moment of the release date, Otso Fenrir Stainless Frameset price was 2550$. Doing a quick comparison, we notice that Fenrir Stainless Frameset price is 50.98% more expensive than the average cost of a Crosscountry frame.
Crosscountry frames average weight
If we make a quick analysis of the average weight of a Crosscountry frame, we get 1.98 kg (4.37 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Otso Fenrir Stainless Frameset it’s weighing 2.58 kg (5.69 lbs). At this weight, is much heavier than average. In conclusion, the average Crosscountry frame weighs 30.3% less than Fenrir Stainless Frameset.
Fenrir Stainless Frameset components
Fork
The ENVE is included from the factory. It has a travel distance of mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
The fork on this frame is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Fenrir Stainless Frameset comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 147 cm – 198 cm (4.82 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
