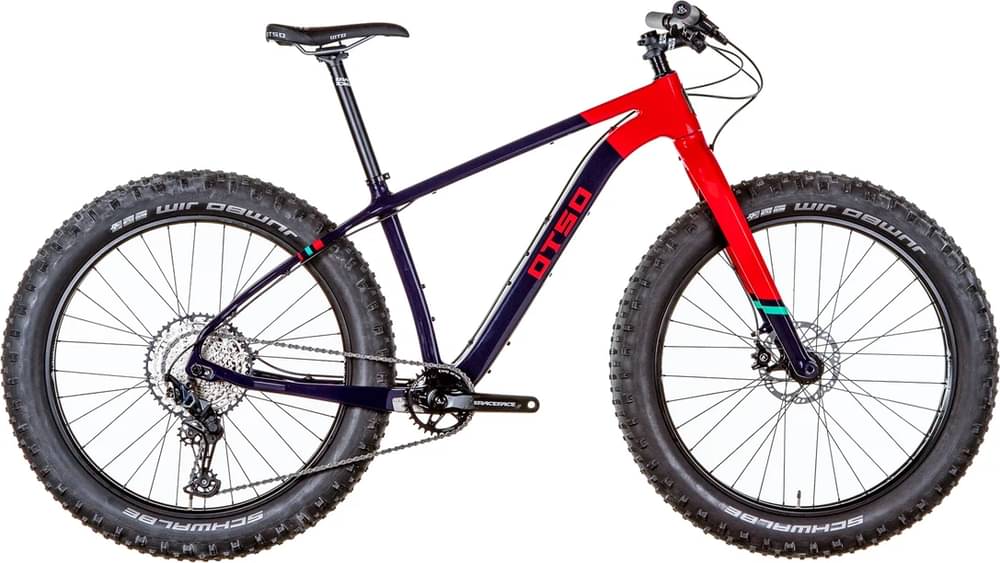

Otso Voytek 2021
2021 Mountain
Estimate price |
3,590$
Weight | 11.52 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 26" -
Groupset SLX, Race Face -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
144cm - 165cm
MD
162cm - 175cm
LG
172cm - 185cm
XL
182cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Voytek™ patented carbon frame, Tuning Chip™ dropout system, 177x12 rear hub spacing, Plus-Fat Narrow Q-factor design with PF107BB, guided internal rear derailleur routing, accommodates internally routed dropper post, external brake routing, downtube and chainstay protectors, matching allow bottle cage bolts
Suspension Fork
Voytek™ rigid carbon fork, suspension corrected, tapered steerer tube, 485mm axle-to-crown, 51mm offset
Drivetrain
Rear Derailleur
Shimano SLX M7100, 12 speed
Front Derailleur
None, 1x only bike
Shift Levers
Shimano SLX M7100 Trigger, 12 speed
Cassette
Shimano SLX M7100, 10-51t, 12 speed
Crank
Race Face Aeffect 83mm with 175mm crankarms and custom offset Wolf Tooth CAMO system, 32T chainring (size Small frame ships with 170mm crankarms, 170mm crankarms are available on other sizes by request)
Bottom Bracket
Race Face, PF107, Ø41mm
Chain
Shimano SLX 12spd
Wheels
Rims
Lithic sealed cartridge bearing 6-bolt rotor hubs with tubeless ready 70mm Lithic Rhyolite aluminum rims. Tubeless kit upgrade available.
Tires
Schwalbe Jumbo Jim 26 x 4.0 LiteSkin
Brakes
Brakes
Magura MT4
Disk Rotors
74mm post (160mm native, 180mm max)
Cockpit
Stem
Race Face Ride (60mm standard. Other lengths available by request)
Handlebar
Race Face Ride, 740mm riser
Grips
Wolf Tooth silicone grips
Headset
IS42 upper, IS52 lower
Seat
Saddle
WTB Volt
Seatpost
Race Face Ride, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.42 mm | 1.4 mm | 1.41 mm |
| Bottom Bracket Height | 285 mm | 285 mm | 285 mm | 285 mm |
| Front Center | 668 mm | 694 mm | 715 mm | 732 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 85.5 mm | 85.5 mm | 85.5 mm | 85.5 mm |
| Stack | 579 mm | 600 mm | 614 mm | 632 mm |
| Reach | 405 mm | 424 mm | 440 mm | 449 mm |
| Top Tube Length | 583 mm | 608 mm | 628 mm | 643 mm |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 90 mm | 115 mm | 130 mm | 150 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1090 mm | 1116 mm | 1137 mm | 1154 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm | 58 mm |
| Standover Height | 695 mm | 737 mm | 778 mm | 813 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 144 cm | 162 cm | 172 cm | 182 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 200 cm |
Model Overview
Voytek completes the Otso Voytek model. 22 bikes variations carry this model name so far. Take a sneak peek at all Otso Voytek bikes models from 2021, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Fatbike bikes average price
Our math shows that the average cost of a dependable Fatbike bike is 1743$. However, you could also get a good Fatbike bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Otso released this model in 2021, its price was 3590$. If we compare this with the average Fatbike bike cost we notice that the price is 105.97% more expensive.
Average weight for Fatbike bikes
On a deeper look, we notice that the average weight of a Fatbike bike is 13.2 kg (29.1 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Voytek weighs 11.52 kg (25.4 lbs) and is considerably lighter than the average. To sum up, it’s 14.58% lighter than the average weight of Fatbike bikes.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Voytek components
Fork material
Voytek has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
As for the wheels, Otso Voytek 2021, has a 26″ aluminum model. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 144 cm – 200 cm (4.72 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
