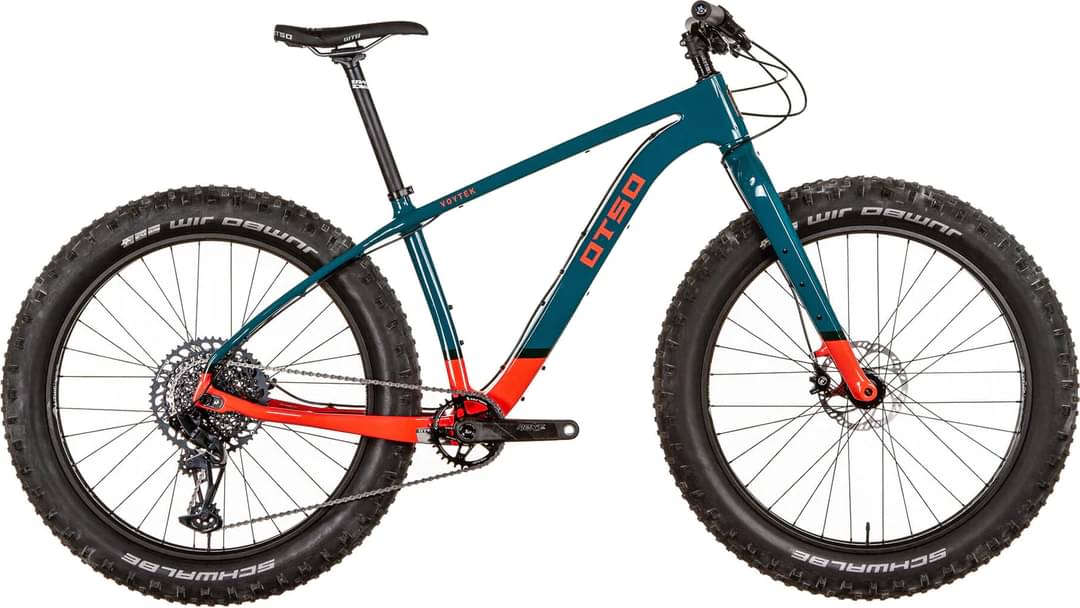

Otso Voytek 2022
2022 Mountain
Estimate price |
3,990$
Weight | 11.52 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 26" -
Groupset SLX, Race Face -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Voytek™ patented carbon frame, Tuning Chip™ dropout system, 177x12 rear hub spacing, Plus-Fat Narrow Q-factor design with PF107BB, guided internal rear derailleur routing, accommodates internally routed dropper post, external brake routing, downtube and chainstay protectors, matching allow bottle cage bolts
Suspension Fork
Voytek™ rigid carbon fork, suspension corrected, tapered steerer tube, 485mm axle-to-crown, 51mm offset
Drivetrain
Rear Derailleur
Shimano SLX M7100, 12 speed
Front Derailleur
None, 1x only bike
Shift Levers
Shimano SLX M7100 Trigger, 12 speed
Cassette
Shimano SLX M7100, 10-51t, 12 speed
Crank
Race Face Aeffect 83mm with 175mm crankarms and custom offset Wolf Tooth CAMO system, 32T chainring (size Small frame ships with 170mm crankarms, 170mm crankarms are available on other sizes by request)
Bottom Bracket
Race Face, PF107, Ø41mm
Chain
Shimano SLX 12spd
Wheels
Rims
Lithic sealed cartridge bearing 6-bolt rotor hubs with tubeless ready 70mm Lithic Rhyolite aluminum rims. Tubeless kit upgrade available.
Tires
Schwalbe Jumbo Jim 26 x 4.0 LiteSkin
Brakes
Brakes
Magura MT4
Disk Rotors
74mm post (160mm native, 180mm max)
Cockpit
Stem
Race Face Ride (60mm standard. Other lengths available by request)
Handlebar
Race Face Ride, 740mm riser
Grips
Wolf Tooth silicone grips
Headset
IS42 upper, IS52 lower
Seat
Saddle
WTB Volt
Seatpost
Race Face Ride, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.42 mm | 1.4 mm | 1.41 mm |
| Bottom Bracket Height | 285 mm | 285 mm | 285 mm | 285 mm |
| Front Center | 668 mm | 694 mm | 715 mm | 732 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 85.5 mm | 85.5 mm | 85.5 mm | 85.5 mm |
| Stack | 579 mm | 600 mm | 614 mm | 632 mm |
| Reach | 405 mm | 424 mm | 440 mm | 449 mm |
| Top Tube Length | 583 mm | 608 mm | 628 mm | 643 mm |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 90 mm | 115 mm | 130 mm | 150 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1090 mm | 1116 mm | 1137 mm | 1154 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm | 58 mm |
| Standover Height | 695 mm | 737 mm | 778 mm | 813 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Voytek belongs to the Otso Voytek model. Otso launched 22 bikes of this model so far. You can easily view all of the Otso Voytek bikes models from 2022, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Fatbike bikes
If you want an acceptable Fatbike bike you should know that the average price is 1743$. However, even though the average price of a Fatbike bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3990$. If we compare this with the average Fatbike bike cost we notice that the price is 128.92% higher.
Fatbike bikes average weight
Fatbike bikes have an average weight of 13.2 kg (29.1 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 11.52 kg (25.4 lbs), Otso bike is considerably lighter than average. In conclusion, the average Fatbike bike weighs 14.58% more than Voytek.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Voytek components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When leaving the production line, the Voytek model has 26″ aluminum wheels. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they provide less traction than 29″ wheels do.
Brakes
Nothing is more important on a bike than its ability to brake properly. Otso Voytek is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
