Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Wheels 26" -
Suspension Rigid
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.42 mm | 1.4 mm | 1.41 mm |
| Bottom Bracket Height | 285 mm | 285 mm | 285 mm | 285 mm |
| Front Center | 668 mm | 694 mm | 715 mm | 732 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 85.5 mm | 85.5 mm | 85.5 mm | 85.5 mm |
| Stack | 579 mm | 600 mm | 614 mm | 632 mm |
| Reach | 405 mm | 424 mm | 440 mm | 449 mm |
| Top Tube Length | 583 mm | 608 mm | 628 mm | 643 mm |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 90 mm | 115 mm | 130 mm | 150 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1090 mm | 1116 mm | 1137 mm | 1154 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm | 58 mm |
| Standover Height | 695 mm | 737 mm | 778 mm | 813 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

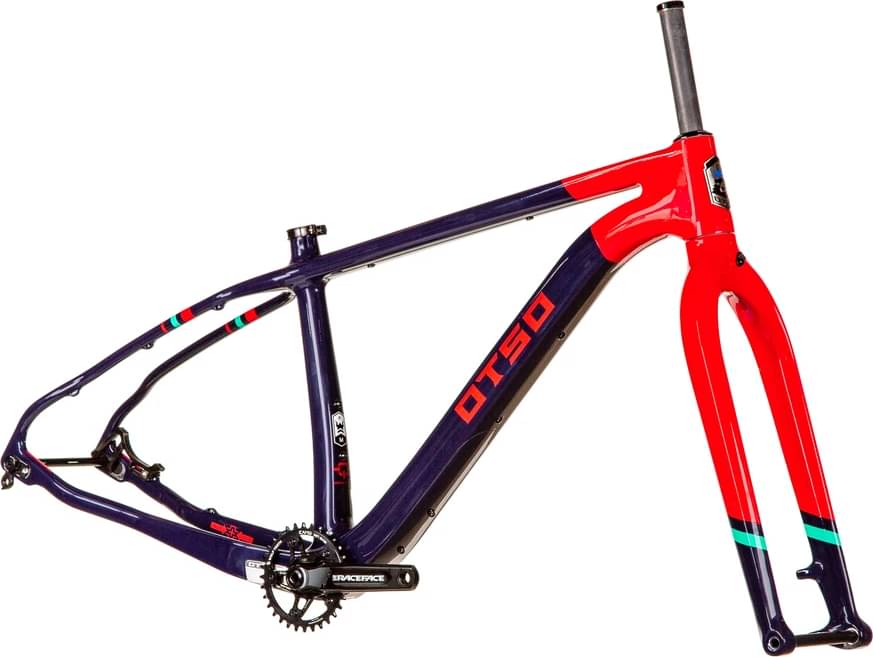

Voytek Frankset is part of the Otso Voytek model. There are 22 frames that carry this model name. Check out the entire range from 2021 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Fatbike frames
Our math shows that the average cost of a dependable Fatbike frame is 1277$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Fatbike frame. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2021 for 2530$. Doing a quick comparison, we notice that Voytek Frankset price is 98.12% higher than the average cost of a Fatbike frame.
Voytek Frankset components
Sizes
This frame is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
