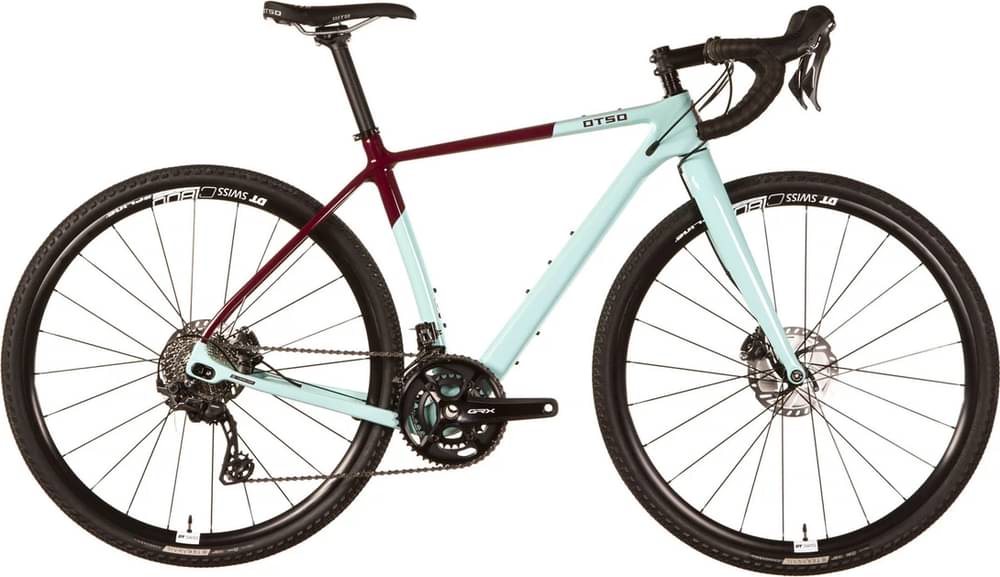

Otso Waheela C 2021
2021 Road
Estimate price |
3,750$
Weight | 9.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset GRX 800, GRX 600 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon with Tuning Chip® dropout system
Suspension Fork
Lithic full carbon fork, 12mm thru-axle
Drivetrain
Rear Derailleur
Shimano GRX 810, 11 speed
Front Derailleur
Shimano GRX, braze-on mount
Shift Levers
Shimano GRX 600 mechanical, 11 speed
Cassette
Shimano HG700, 11-34t, 11 speed
Crank
Shimano GRX 600, 46/30t: 170mm S; 172.5mm M, L; 175mm XL
Bottom Bracket
Shimano english thread BSA, Ø68mm
Chain
Shimano HG-11X
Wheels
Rims
DT Swiss C 1800 SPLINE, 100x15mm front and 142x12mm rear hub spacing
Tires
Panaracer Gravel King SK 700x38
Brakes
Brakes
Shimano GRX 600 Hydraulic
Disk Rotors
flat mount (160mm)
Cockpit
Stem
6061 aluminum
Handlebar
Lithic Corundum aluminum compact drop with 16° flare
Headset
ZS44/28.6 upper, ZS56 lower
Seat
Saddle
WTB Volt 142mm, Custom for Otso
Seatpost
6061 aluminum
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.43 mm | 1.5 mm | 1.56 mm |
| Bottom Bracket Height | 281 mm | 281 mm | 281 mm | 281 mm |
| Front Center | 597 mm | 604 mm | 628 mm | 651 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 71 mm | 68 mm | 68 mm | 68 mm |
| Stack | 548 mm | 562 mm | 602 mm | 642 mm |
| Reach | 382 mm | 392 mm | 402 mm | 412 mm |
| Top Tube Length | 553 mm | 567 mm | 590 mm | 612 mm |
| Seat Tube Length | 475 mm | 510 mm | 540 mm | 570 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 94 mm | 107 mm | 149 mm | 191 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1015 mm | 1022 mm | 1046 mm | 1069 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 744 mm | 772 mm | 805 mm | 838 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Waheela C is part of the Otso Waheela model. 23 bikes variations carry this model name so far. Check out the entire range from 2021 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Gravel bikes
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2021 for 3750$. Doing a quick comparison, we notice that Waheela C price is 52.32% higher than the average cost of a Gravel bike.
Average weight for Gravel bikes
If we make a quick analysis of the average weight of a Gravel bike, we get 8.13 kg (17.92 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 9.3 kg (20.5 lbs), the Waheela C model is considerably heavier than average. In conclusion, the average Gravel bike weighs 14.39% less than Waheela C.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When leaving the production line, the Waheela C model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Otso Waheela C is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Otso Waheela C bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
