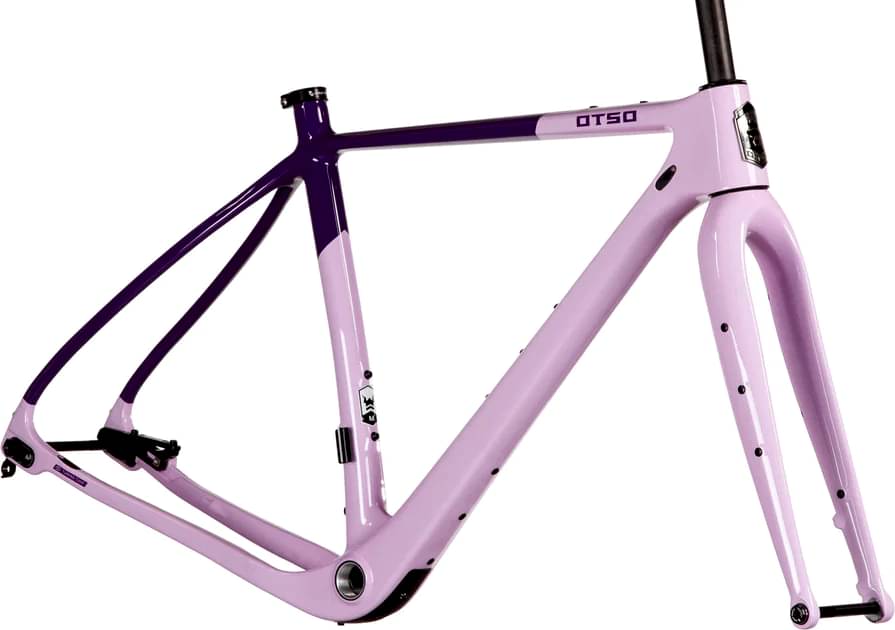

Otso Waheela C Frameset 2023
2023 Road
Estimate price |
2,700$
Weight | 1.02 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
SM
157cm - 172cm
MD
169cm - 182cm
LG
179cm - 192cm
XL
189cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
None
Drivetrain
Bottom Bracket
68mm BSA threaded
Cockpit
Headset
Wolf Tooth Performance Headset - Black
Seat
Seatpost
Ø30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.43 mm | 1.5 mm | 1.56 mm |
| Bottom Bracket Height | 281 mm | 281 mm | 281 mm | 281 mm |
| Front Center | 617 mm | 604 mm | 628 mm | 651 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 71 mm | 68 mm | 68 mm | 68 mm |
| Stack | 548 mm | 562 mm | 602 mm | 642 mm |
| Reach | 382 mm | 392 mm | 402 mm | 412 mm |
| Top Tube Length | 553 mm | 567 mm | 590 mm | 612 mm |
| Seat Tube Length | 475 mm | 510 mm | 540 mm | 570 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 94 mm | 107 mm | 149 mm | 191 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1035 mm | 1022 mm | 1046 mm | 1069 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 744 mm | 772 mm | 805 mm | 838 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 172 cm | 182 cm | 192 cm | 198 cm |
About this model
Waheela C Frameset completes the Otso Waheela model. There are 23 frames that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Gravel frames average price
According to our math, the average price for a trustworthy Gravel frame is 1505$. However, even though the average price of a Gravel frame is lower, you might still be able to get a top-quality frame. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
This frame was released in 2023 and its price was 2700$. In conclusion, this frame price is 79.4% more expensive than the price of the average Gravel frame.
Average weight for Gravel frames
Gravel frames have an average weight of 1.93 kg (4.25 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
much lighter than average, Waheela C Frameset has a weight of 1.02 kg (2.25 lbs). In short, the average Gravel frame weight is 89.22% higher than this one.
Waheela C Frameset components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Sizes
Otso Waheela C Frameset frame has 4 sizes, in the range of 157 cm – 198 cm (5.15 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
