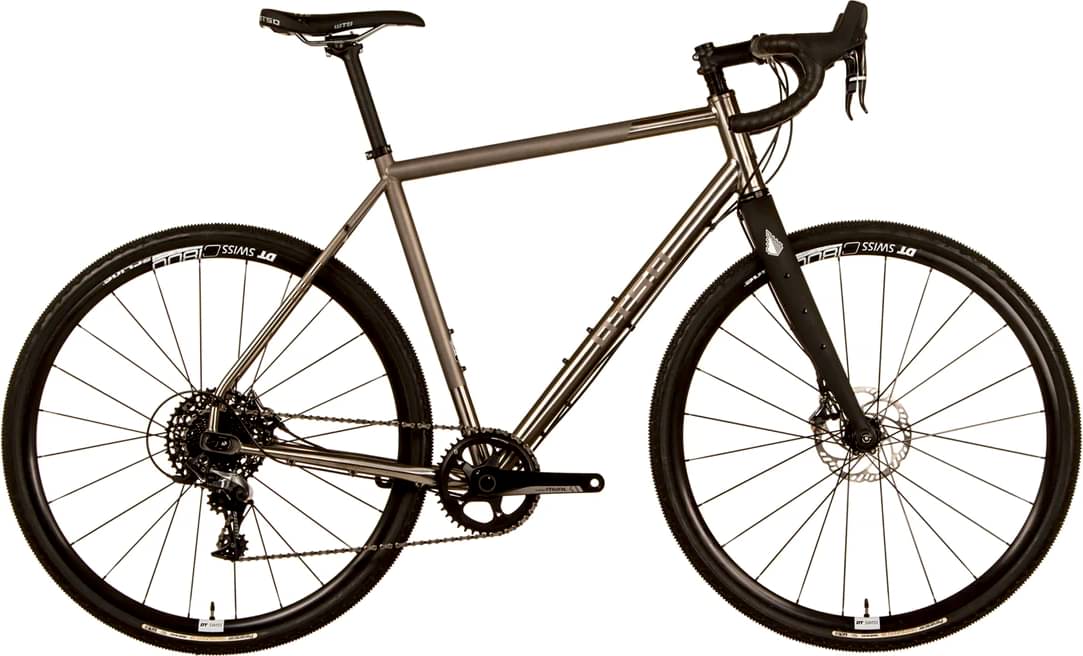

Otso Warakin Ti 1×13 Campagnolo Ekar 2023
2023 Road
Estimate price |
6,550$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 700c -
Suspension Rigid -
Drivetrain 1 × 13 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
49cm
152cm - 159cm
52cm
156cm - 164cm
54cm
161cm - 174cm
56cm
171cm - 184cm
58cm
181cm - 189cm
60m
187cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Seamless 3Al-2.5V B338 grade 9 titanium, internally butted front triangle
Suspension Fork
Lithic Hiili Carbon Fork with Triple Mounts, 12x100mm
Drivetrain
Cassette
1x13 Campagnolo Ekar (42T chainring, 9-42T cassette)
Bottom Bracket
68mm BSA threaded
Wheels
Rims
HED Emporia GA Pro 25mm 700c *
Tires
Schwalbe G-One Allround 700x45 Black
Brakes
Brakes
Hydraulic Disc
Cockpit
Handlebar
Lithic Corundum 40cm
Headset
Wolf Tooth Performance Headset - Black
Seat
Saddle
WTB Volt Medium, 142mm width
Seatpost
Aluminum 27.2 350mm - Black
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 60m |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.45 mm | 1.49 mm | 1.55 mm | 1.62 mm | 1.63 mm |
| Bottom Bracket Height | 281 mm | 281 mm | 281 mm | 281 mm | 281 mm | 281 mm |
| Front Center | 619 mm | 606 mm | 612 mm | 617 mm | 621 mm | 635 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 72 mm | 71 mm | 70 mm | 67.5 mm | 65 mm | 65 mm |
| Stack | 542 mm | 551 mm | 572 mm | 598 mm | 624 mm | 643 mm |
| Reach | 372 mm | 380 mm | 383 mm | 385 mm | 386 mm | 394 mm |
| Top Tube Length | 512 mm | 532 mm | 547 mm | 567 mm | 582 mm | 602 mm |
| Seat Tube Length | 470 mm | 505 mm | 530 mm | 550 mm | 570 mm | 590 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 87 mm | 95 mm | 115 mm | 140 mm | 165 mm | 185 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1032 mm | 1019 mm | 1025 mm | 1030 mm | 1034 mm | 1048 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 732 mm | 762 mm | 782 mm | 802 mm | 822 mm | 842 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 156 cm | 161 cm | 171 cm | 181 cm | 187 cm |
| Rider Max Height | 159 cm | 164 cm | 174 cm | 184 cm | 189 cm | 195 cm |
About this model
Warakin Ti 1×13 Campagnolo Ekar is an Otso Warakin model. Otso launched 36 bikes of this model so far. Take a sneak peek at all Otso Warakin bikes models from 2023, by clicking here.
Model range prices
Otso Warakin Stainless – GRX 11-Speed Sale 1×11 Shimano GRX 600 2023 is the most affordable bike of this model and has a price of 2662$. On the other hand, Otso Warakin Ti 1×13 Campagnolo Ekar 2023, is the most expensive and costs 6550$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Gravel bikes average price
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Otso Warakin Ti 1×13 Campagnolo Ekar price was 6550$. Comparing the average cost of a Gravel bike to this one, you will see that Warakin Ti 1×13 Campagnolo Ekar price is 166.04% more expensive.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When it comes to wheels, the Warakin Ti 1×13 Campagnolo Ekar bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Warakin Ti 1×13 Campagnolo Ekar comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Warakin Ti 1×13 Campagnolo Ekar comes in 6 sizes, that range from 152 cm – 195 cm (4.99 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
