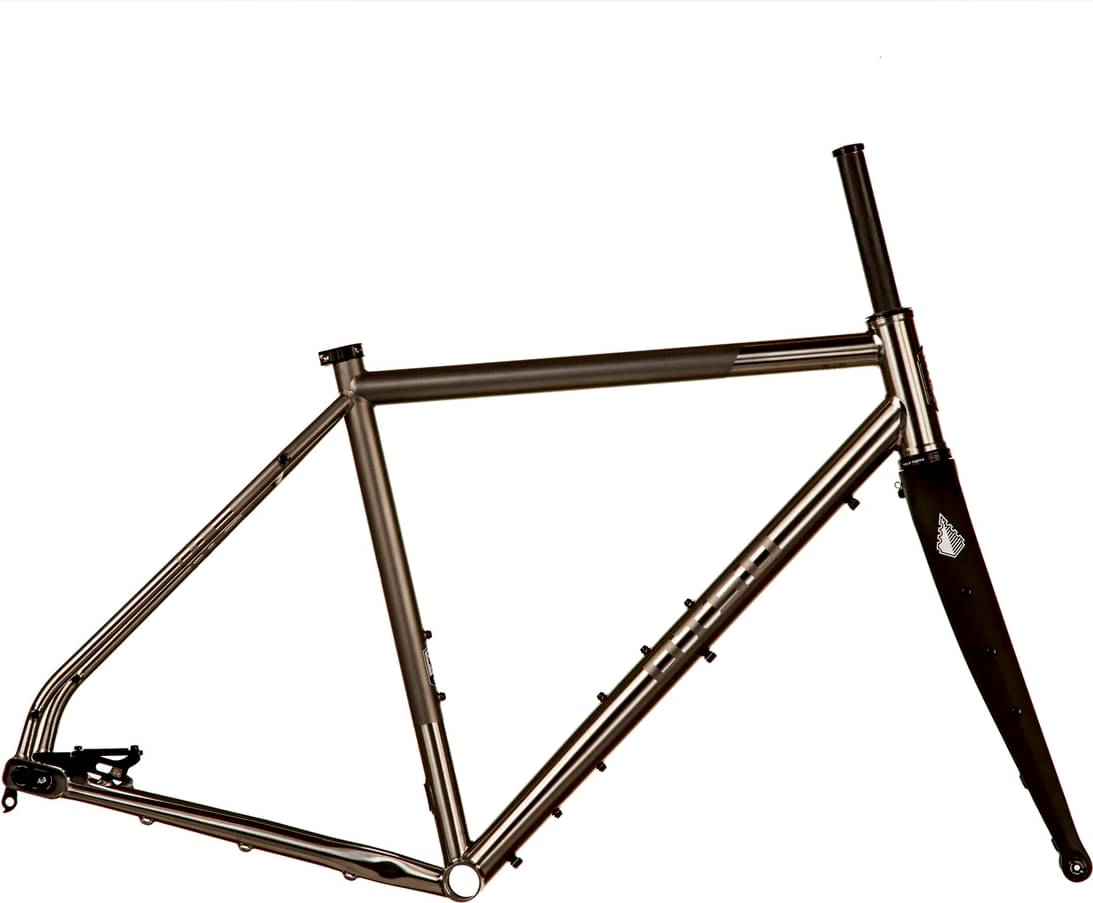

Otso Warakin Ti Frameset 2023
2023 Road
Estimate price |
2,950$
Weight | 1.54 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Titanium -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
49cm
152cm - 159cm
52cm
156cm - 164cm
54cm
161cm - 174cm
56cm
171cm - 184cm
58cm
181cm - 189cm
60m
187cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Seamless 3Al-2.5V B338 grade 9 titanium, internally butted front triangle
Drivetrain
Bottom Bracket
68mm BSA threaded
Cockpit
Headset
ZS44/28.6 upper, EC44/40.0 lower
Seat
Seatpost
Ø27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 60m |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.45 mm | 1.49 mm | 1.55 mm | 1.62 mm | 1.63 mm |
| Bottom Bracket Height | 281 mm | 281 mm | 281 mm | 281 mm | 281 mm | 281 mm |
| Front Center | 619 mm | 606 mm | 612 mm | 617 mm | 621 mm | 635 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 72 mm | 71 mm | 70 mm | 67.5 mm | 65 mm | 65 mm |
| Stack | 542 mm | 551 mm | 572 mm | 598 mm | 624 mm | 643 mm |
| Reach | 372 mm | 380 mm | 383 mm | 385 mm | 386 mm | 394 mm |
| Top Tube Length | 512 mm | 532 mm | 547 mm | 567 mm | 582 mm | 602 mm |
| Seat Tube Length | 470 mm | 505 mm | 530 mm | 550 mm | 570 mm | 590 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 87 mm | 95 mm | 115 mm | 140 mm | 165 mm | 185 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1032 mm | 1019 mm | 1025 mm | 1030 mm | 1034 mm | 1048 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 732 mm | 762 mm | 782 mm | 802 mm | 822 mm | 842 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 156 cm | 161 cm | 171 cm | 181 cm | 187 cm |
| Rider Max Height | 159 cm | 164 cm | 174 cm | 184 cm | 189 cm | 195 cm |
Model Overview
Warakin Ti Frameset belongs to the Otso Warakin model. There are 36 frames that carry this model name. Take a sneak peek at all Otso Warakin frames models from 2023, by clicking here.
Model range prices
Otso Warakin Stainless Frame 2023 is the most affordable frame of this model and has a price of 1950$. On the other hand, Otso Warakin Ti Frameset 2023, is the most expensive and costs 2950$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Gravel frames
If you want to purchase a solid Gravel frame, it is important to know that the average cost is 1505$. However, even though the average price of a Gravel frame is lower, you might still be able to get a top-quality frame. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
At the moment of the release date, Otso Warakin Ti Frameset price was 2950$. Comparing the average cost of a Gravel frame to this one, you will see that Warakin Ti Frameset price is 96.01% more expensive.
Average weight for Gravel frames
Gravel frames have an average weight of 1.93 kg (4.25 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Otso Warakin Ti Frameset it’s weighing 1.54 kg (3.4 lbs). At this weight, is much lighter than average. To sum up, it’s 25.32% lighter than the average weight of Gravel frames.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 152 cm – 195 cm (4.99 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
