Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 27.5" -
Travel Front 140mm -
Fork RockShox Pike Ultimate
-
Groupset GX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components

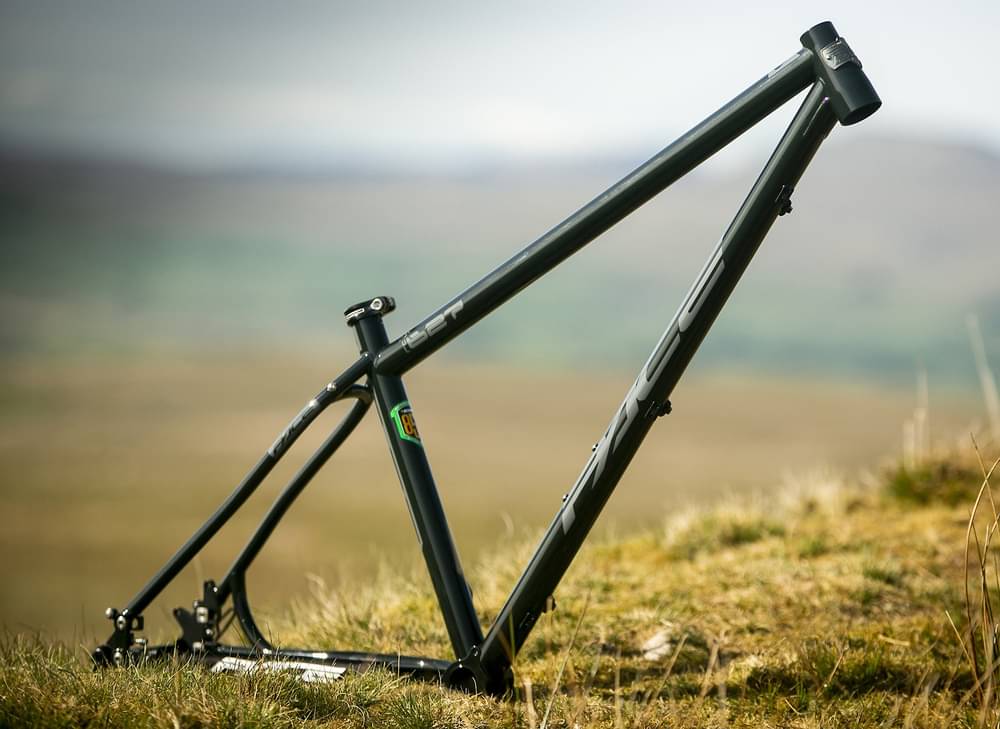

Frame
Frame
Steel
Suspension Fork
RockShox Pike Ultimate RC2, Charger damper, Stealth axle
Rear Shock
None
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed
Front Derailleur
None
Shift Levers
SRAM GX Eagle, 12-speed
Cassette
SRAM GX Eagle XG-1275, 12-speed
Crank
SRAM GX Eagle DUB, 170mm length
Bottom Bracket
SRAM DUB, 73mm English/BSA threaded
Chain
SRAM GX Eagle, 12-speed
Chain Guide
None
Pedals
None
Wheels
Front Hub
Hunt Trail Wide wheelset, 110x15mm Boost front, 148x12mm Boost rear with XD driver
Rear Hub
Hunt Trail Wide wheelset, 110x15mm Boost front, 148x12mm Boost rear with XD driver
Rims
Hunt Trail Wide wheelset, 30mm width, Hunt All Mountain Carbon upgrade available
Spokes
Hunt Trail Wide wheelset
Tires
Front: Maxxis Minion DHF, 3C MaxxTerra, 27.5" x 2.6", Rear: Maxxis Minion DHR II, EXO, TR, 27.5" x 2.4"
Brakes
Brakes
SRAM G2 RS, 4-piston, SRAM rotors (200mm front, 180mm rear)
Brake Levers
SRAM G2 RS
Cockpit
Stem
Pace RC46, 32mm length, 35mm bar clamp
Handlebar
Burgtec Ridewide Alloy Enduro, 800mm width, 30mm rise, 35mm clamp diameter; carbon upgrade available
Grips
Burgtec Bartender
Headset
Hope Tech External, EC34/28.6 upper, EC44/40 lower
Seat
Saddle
Burgtec Cloud Chromo
Seatpost
Option 1: BikeYoke Revive dropper, BikeYoke remote lever, 125/160/185mm drop options, Option 2: RockShox Reverb, plunger remote, 150mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.3 mm | 1.26 mm |
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm |
| Stack | 632 mm | 636 mm | 641 mm |
| Reach | 470 mm | 488 mm | 507 mm |
| Top Tube Length | 638 mm | 658 mm | 678 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 420 mm | 450 mm | 480 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 105 mm | 110 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1207 mm | 1228 mm | 1249 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm |
| Standover Height | 723 mm | 744 mm | 769 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
RC627 Ultimate GX is part of the Pace Rc627 model. Pace released 2 bikes variations of this model so far. Take a sneak peek at all Pace Rc627 bikes models from 2021, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork
The RockShox Pike Ultimate is included from the factory. It has a travel distance of 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
As for the wheels, Pace RC627 Ultimate GX 2021, has a 27.5″ carbon model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The RC627 Ultimate GX comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
RC627 Ultimate GX comes in 3 sizes, that range from 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the RC627 Ultimate GX. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
