Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 27.5" -
Travel Front 140mm -
Fork RockShox Pike Ultimate
-
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components

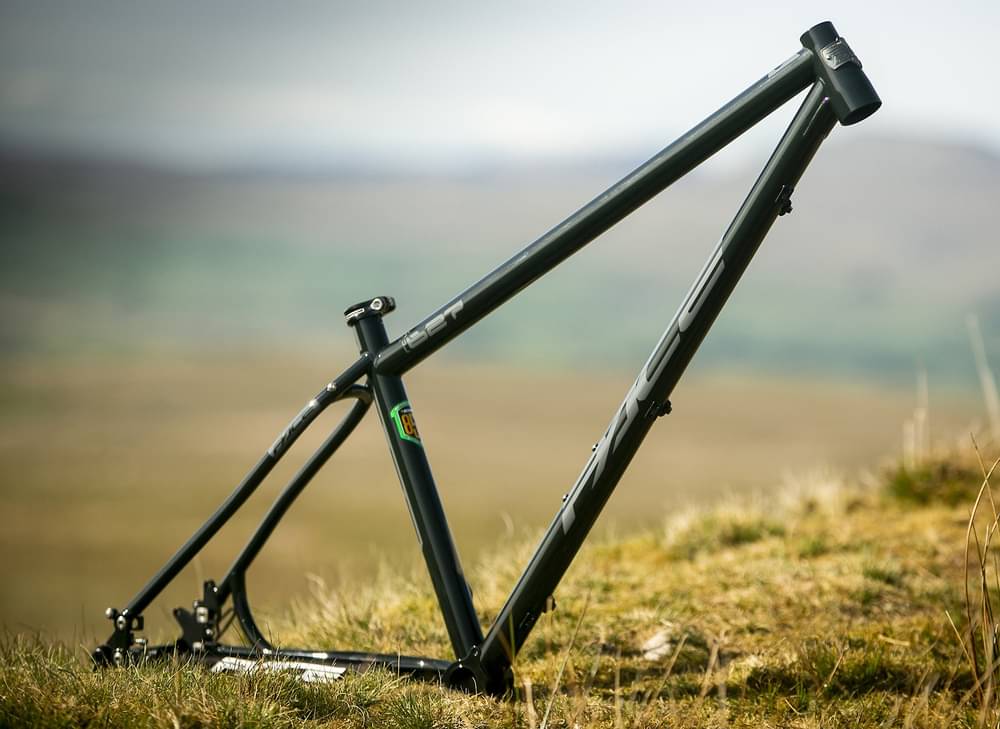

Frame
Frame
Steel
Suspension Fork
RockShox Pike Ultimate RC2, Charger damper, Stealth axle
Rear Shock
None
Drivetrain
Rear Derailleur
Shimano Deore XT, 12-speed
Front Derailleur
None
Shift Levers
Shimano Deore, 12-speed
Cassette
Shimano Deore XT, 12-speed, 10-51 tooth
Crank
Shimano Deore XT, 165mm length
Bottom Bracket
Shimano Deore XT, 73mm English/BSA threaded
Chain
Shimano Deore XT 12-speed
Chain Guide
None
Pedals
None
Wheels
Front Hub
Hunt Trail Wide wheelset, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Rear Hub
Hunt Trail Wide wheelset, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Rims
Hunt Trail Wide wheelset, 30mm width, Hunt All Mountain Carbon upgrade available
Spokes
Hunt Trail Wide wheelset
Tires
Front: Maxxis Minion DHF, 3C MaxxTerra, 27.5" x 2.6", Rear: Maxxis Minion DHR II, EXO, TR, 27.5" x 2.4"
Brakes
Brakes
Shimano Deore XT, 2-piston, XLC rotors (203mm front, 180mm rear)
Brake Levers
Shimano Deore XT
Cockpit
Stem
Pace RC46, 32mm length, 35mm bar clamp
Handlebar
Burgtec Ridewide Alloy Enduro, 800mm width, 30mm rise, 35mm clamp diameter; carbon upgrade available
Grips
Burgtec Bartender
Headset
Hope Tech External, EC34/28.6 upper, EC44/40 lower
Seat
Saddle
Burgtec Cloud Chromo
Seatpost
Option 1: BikeYoke Revive dropper, BikeYoke remote lever, 125/160/185mm drop options, Option 2: RockShox Reverb, plunger remote, 150mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.3 mm | 1.26 mm |
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm |
| Stack | 632 mm | 636 mm | 641 mm |
| Reach | 470 mm | 488 mm | 507 mm |
| Top Tube Length | 638 mm | 658 mm | 678 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 420 mm | 450 mm | 480 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 105 mm | 110 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1207 mm | 1228 mm | 1249 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm |
| Standover Height | 723 mm | 744 mm | 769 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
RC627 Ultimate XT is part of the Pace Rc627 model. There are 2 bikes that carry this model name. Take a sneak peek at all Pace Rc627 bikes models from 2021, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
RC627 Ultimate XT components
Fork
The fork installed on this bike is the RockShox Pike Ultimate model. The travel on this model is 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The wheels on RC627 Ultimate XT are the 27.5″ carbon type. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Pace RC627 Ultimate XT is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Pace RC627 Ultimate XT bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Pace RC627 Ultimate XT comes with a dropper post. Therefore, climbing or descending will be a breeze.
