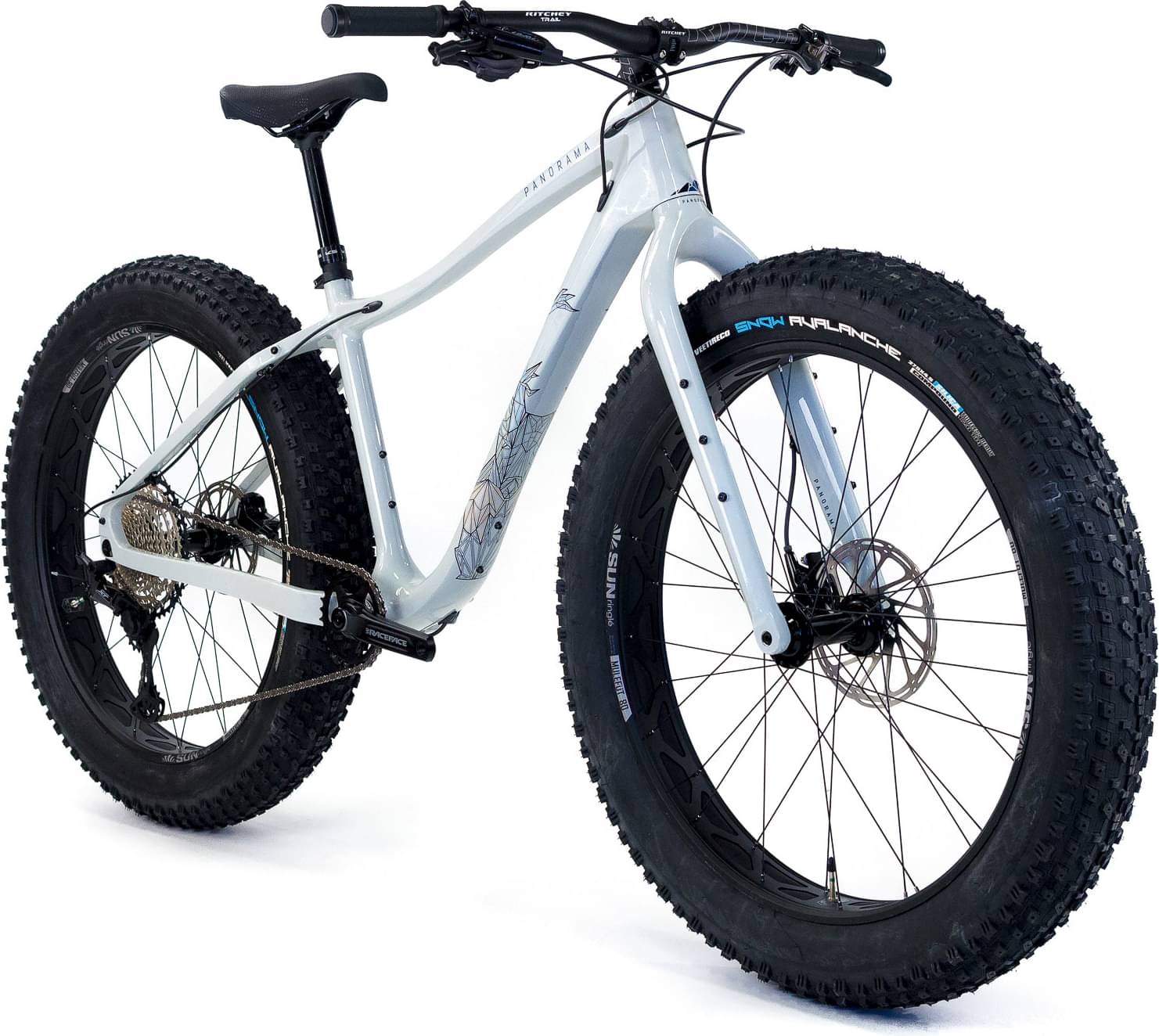

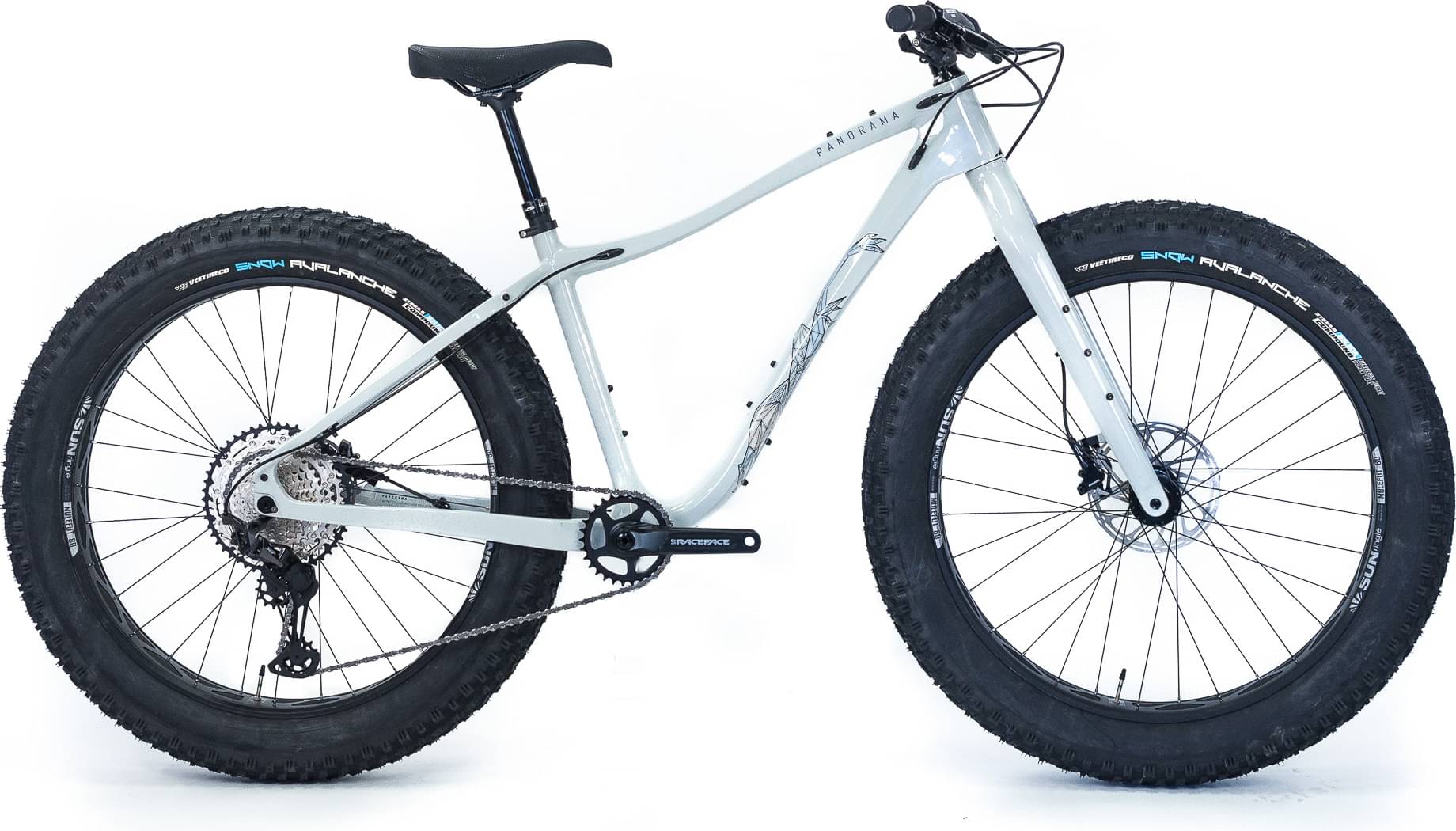

panorama Chic-Chocs 27.5 SLX/DEORE 2022
2022 Mountain
Estimate price |
2,824$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Groupset SLX, Race Face -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 164cm
MD
161cm - 179cm
LG
176cm - 187cm
XL
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TAILORED CARBON CONSTRUCTION, 12MMX197MM REAR AXLE, BSA 100mm BOTTOM BRACKET, CARBON NET-SHAPE INTEGRATED HEADSET, INTERNAL CABLE ROUTING, BRAKE STD: POSTMOUNT, SEATPOST DIA 31.6MM, SEATPOST CLAMP DIA 34.9MM, FRAME PROTECTORS INCLUDED, SUSPENSION FORK COMPATIBLE, MOUNTS FOR REAR RACK, 3 WATER BOTTLES, TOP TUBE BAG, COLOR: LIGHT GREY
Suspension Fork
TAILORED CARBON CONSTRUCTION, 15MMX150MM AXLE, ANYTHING CAGES MOUNTS, TAPERED 1-1/8¨ / 1-1/2¨
Drivetrain
Rear Derailleur
SHIMANO SLX RD-M7100, 12 SPEEDS
Shift Levers
SHIMANO SLX SL-M7100, 12 SPEEDS
Cassette
SHIMANO DEORE CS-M6100-12, 10-51T, 12 SPEEDS
Crank
RACE FACE RIDE, 28T CINCH DM STEEL CHAINRING
Bottom Bracket
RACE FACE BSA TEAM
Chain
KMC X12-126L, 12 SPEEDS
Pedals
Not included
Wheels
Front Hub
SUN RINGLE SRC – MICROSPLINE FREEHUB BODY
Rear Hub
SUN RINGLE SRC – MICROSPLINE FREEHUB BODY
Rims
SUN RINGLE MULEFÜT 80SL V2, 27.5”, 32 HOLES
Spokes
14G STAINLESS BLACK
Tires
VEE SNOW AVALANCHE 27.5X4.5?, 120TPI, TUBELESS READY, STUDDABLE
Brakes
Brakes
SRAM LEVEL HYDRAULIC
Cockpit
Stem
RITCHEY TRAIL, 31.8MM, 45MMX3DEG
Handlebar
RACE FACE RIDE, 31.8MM, 10MM RISE, 710MM
Headset
FSA NO.42/ACB 1.5” TAPER
Seat
Saddle
PANORAMA SPEC, 273MM X 148MM
Seatpost
KALLOY SP-719 31.6MM X 400MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.4 mm | 1.41 mm | 1.36 mm |
| Bottom Bracket Height | 297 mm | 297 mm | 297 mm | 297 mm |
| Front Center | 666 mm | 705 mm | 713 mm | 726 mm |
| Rake | 40 mm | 40 mm | 40 mm | 40 mm |
| Trail | 91 mm | 91 mm | 90 mm | 97 mm |
| Stack | 590 mm | 599 mm | 608 mm | 613 mm |
| Reach | 393 mm | 428 mm | 432 mm | 450 mm |
| Top Tube Length | 565 mm | 606 mm | 619 mm | 628 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72 ° | 72 ° |
| Seat Tube Length | 381 mm | 425 mm | 475 mm | 525 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 468 mm | 468 mm | 468 mm | 468 mm |
| Wheelbase | 1128 mm | 1167 mm | 1175 mm | 1188 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm | 58 mm |
| Standover Height | 695 mm | 746 mm | 796 mm | 834 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 152 cm | 161 cm | 176 cm | 184 cm |
| Rider Max Height | 164 cm | 179 cm | 187 cm | 195 cm |
Model Overview
Chic-Chocs 27.5 SLX/DEORE completes the Panorama Chic Chocs model. There are 8 bikes that carry this model name. You can easily view all of the Panorama Chic Chocs bikes models from 2022, here.
Model range prices
Panorama Chic-Chocs 27.5 SLX/DEORE 2022 is the most economical model, with a starting price of 2819$. Panorama Chic-Chocs 27.5 XT/SLX 2022 on the other hand costs 3181$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Fatbike bikes
Our math shows that the average cost of a dependable Fatbike bike is 1743$. However, this doesn’t mean that if you spend less money on a Fatbike bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2022 and its price was 2819$. Doing a quick comparison, we notice that Chic-Chocs 27.5 SLX/DEORE price is 61.73% more expensive than the average cost of a Fatbike bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Chic-Chocs 27.5 SLX/DEORE components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
As for the wheels, Panorama Chic-Chocs 27.5 SLX/DEORE 2022, has a 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Chic-Chocs 27.5 SLX/DEORE has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 152 cm – 195 cm (4.99 ft – 6.4 ft). In short, you can easily find one that suits you.
