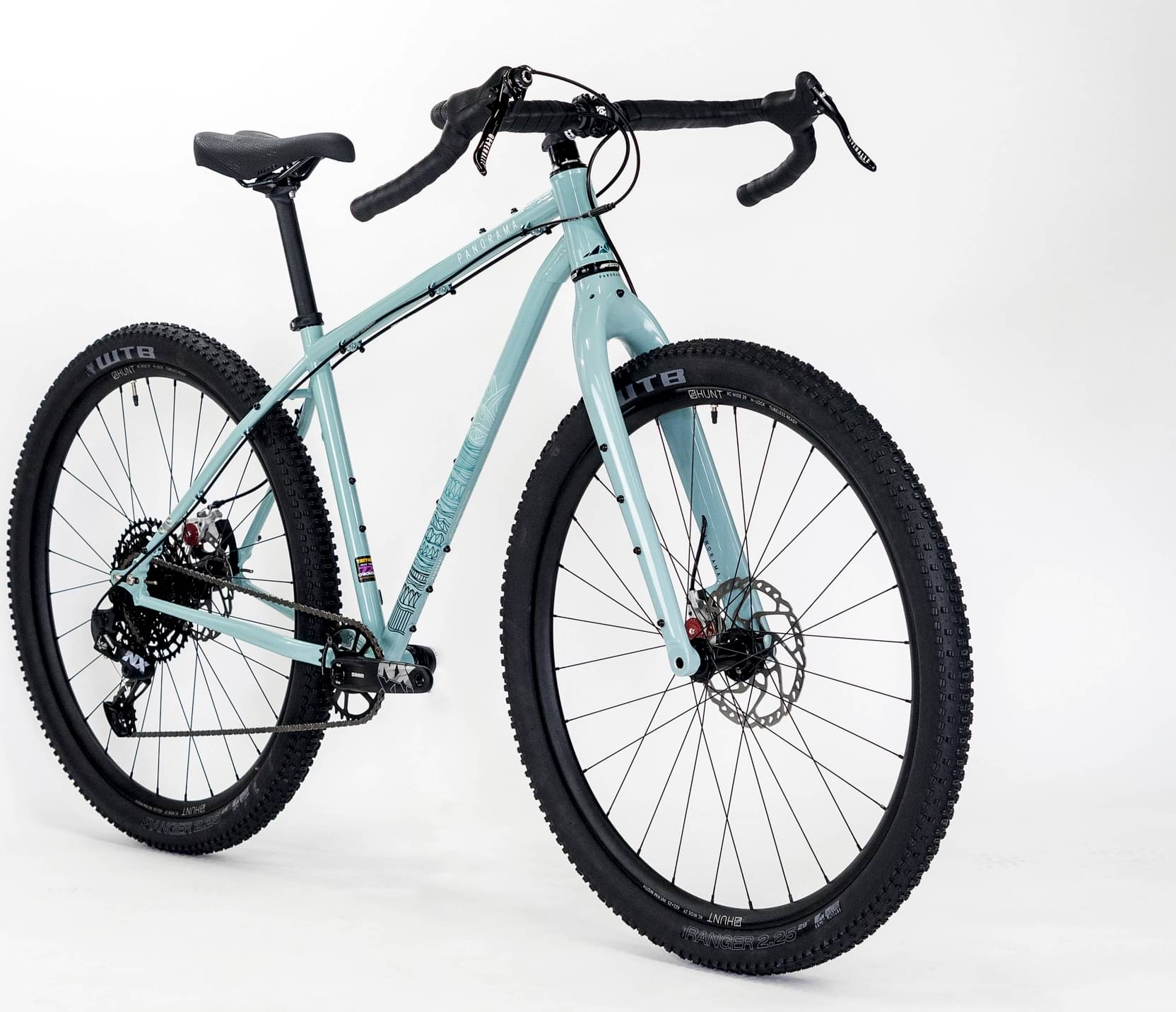

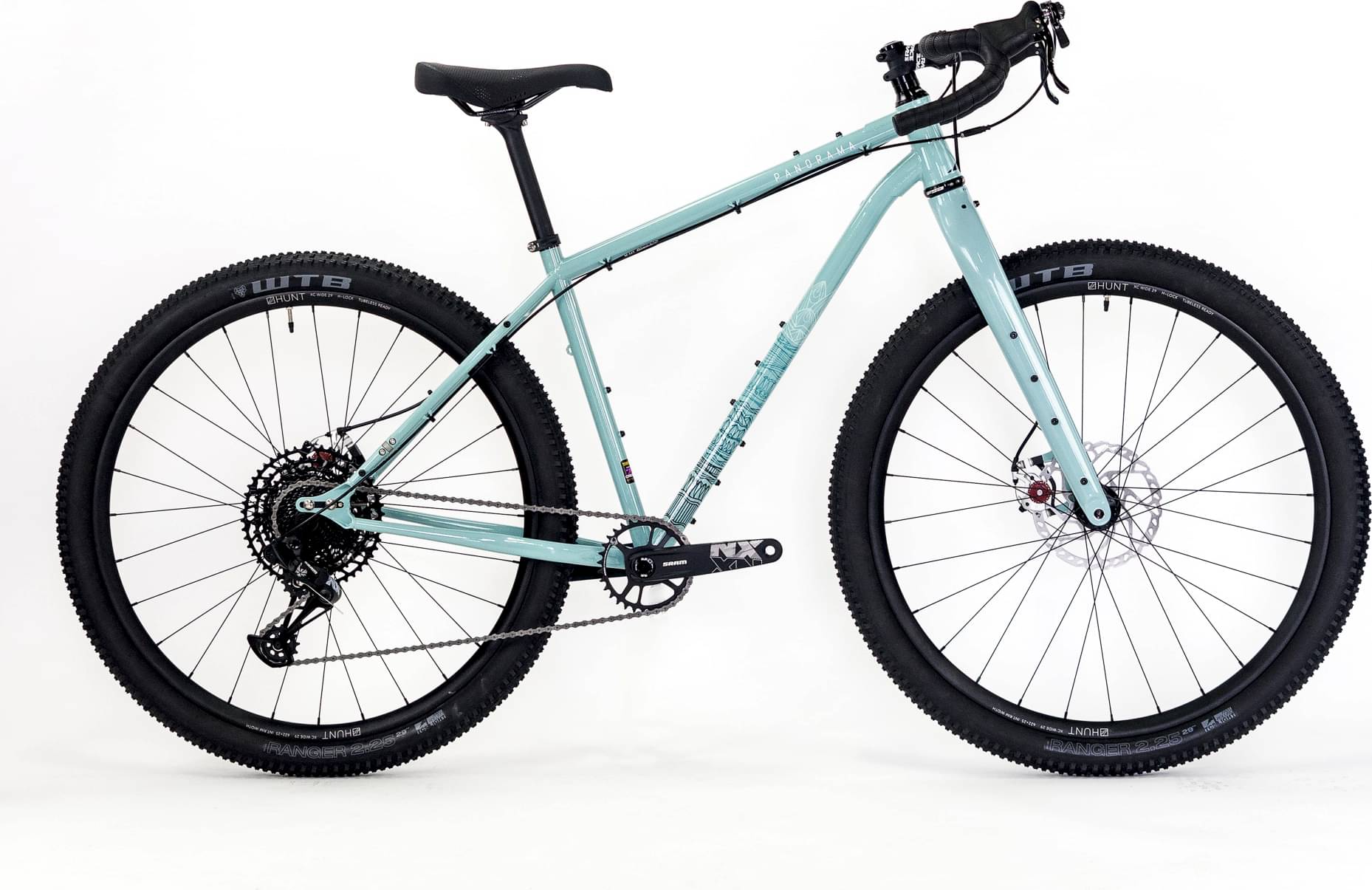

panorama Taïga EXP RIVAL + RATIO TECHNOLOGY 2023
2023 Road
Estimate price |
2,860$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Travel Rear 100mm -
Groupset GX Eagle, Rival -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
162cm - 174cm
MD
171cm - 182cm
LG
179cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
REYNOLDS 725 STEEL FRAME, INTERNAL CABLE ROUTING FOR DROPPER SEAT POST, SLIDING DROPOUTS – SINGLE SPEED / ROLHOFF COMPATIBLE, BELT DRIVE COMPATIBLE, POST MOUNT BRAKE STD, REAR RACK MOUNT, TRIPLE WATER BOTTLE MOUNT UNDER AND ON TOP OF THE DOWNTUBE, WATER BOTTLE MOUNT ON SEAT TUBE, GAS TANK MOUNT ON TOP OF TOP TUBE, ELECTRODEPOSITION SURFACE TREATMENT (CORROSION PROTECTION), 12MMX148MM BOOST REAR SPACING, 73mm BSA BOTTOM BRACKET, TAPERED 1-1/2¨ x 1-1/8¨ HEAD TUBE, HEADSET: TOP ZS44 LOWER EC49, DIA 29.8MM SEAT POST CLAMP, DIA 27.2MM SEAST POST, DIA 28.6MM FRONT DERAILLEUR CLAMP, MAXIMUM TIRE CLEARANCE: 29¨X2.6¨ or 27.5¨X2.8¨, MAX CHAINRINGS: 42T/28T, SUSPENSION FORK COMPATIBLE (GEOMETRY CORRECTED TO 100MM TRAVEL FORK)
Suspension Fork
100% CARBON, TRIPLE CARGO CAGE MOUNTS, 15MMX110MM BOOST SPACING, INTERNAL CABLE ROUTING FOR DYNAMO HUB, TAPERED STEER TUBE 1-1/8¨ / 1-1/2¨, MAX TIRE CLEARANCE : 29¨X2.6¨ or 27.5¨X2.8¨, 480mm LENGTH (100mm SUSPENSION FORK EQUIVALENT AT 25% SAG)
Drivetrain
Rear Derailleur
SRAM GX EAGLE + RATIO TECHNOLOGY KIT
Shift Levers
SRAM RIVAL + RATIO TECHNOLOGY KIT 1X12
Cassette
SRAM NX EAGLE PG1210 11-50T
Crank
RACE FACE AEFFECT, 32T
Bottom Bracket
RACE FACE BSA TEAM
Chain
SRAM NX EAGLE 12 SPEEDS
Pedals
Not included
Wheels
Rims
HUNT TRAIL WIDE MTB, CUSTOM BUILT FOR PANORAMA CYCLES WITH 32 SPOKES
Tires
TERAVAIL EHLINE, 29”X2.3, LIGHT AND SUPPLE
Brakes
Brakes
TRP SPYRE ROAD POST MOUNT
Cockpit
Stem
RACE FACE RIDE, 31.8MMX60MM, 6DEG
Handlebar
RITCHEY VENTURE MAX XL, 31.8MM X 520MM
Headset
FSA NO.9M/CUP/CC/NO.12B
Seat
Saddle
PANORAMA SPEC, 273mm X 148mm
Seatpost
KALLOY SP-3D2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.67 mm | 1.69 mm |
| Front Center | 611 mm | 631 mm | 654 mm |
| Rake | 40 mm | 40 mm | 40 mm |
| Trail | 100 mm | 95 mm | 95 mm |
| Stack | 600 mm | 628 mm | 656 mm |
| Reach | 371 mm | 375 mm | 388 mm |
| Top Tube Length | 544 mm | 558 mm | 589 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 415 mm | 470 mm | 515 mm |
| Head Tube Angle | 69 ° | 69.7 ° | 69.7 ° |
| Head Tube Length | 92 mm | 120 mm | 150 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1050 mm | 1070 mm | 1093 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Standover Height | 748 mm | 808 mm | 858 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 171 cm | 179 cm |
| Rider Max Height | 174 cm | 182 cm | 190 cm |
About this model
Taïga EXP RIVAL + RATIO TECHNOLOGY is part of the Panorama Taiga model. There are 7 bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Panorama Taïga EXP Gevenalle 2023 is the most economical model, with a starting price of 2566$. Panorama Taïga EXP RIVAL + RATIO TECHNOLOGY 2023 on the other hand costs 2856$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Gravel bikes
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Panorama released this model in 2023, its price was 2856$. In conclusion, this bike price is 16% higher than the price of the average Gravel bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Rear Shock
Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When it comes to wheels, the Taïga EXP RIVAL + RATIO TECHNOLOGY bike is equipped with the 29″ carbon model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Panorama Taïga EXP RIVAL + RATIO TECHNOLOGY is equipped with Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
Taïga EXP RIVAL + RATIO TECHNOLOGY comes in 3 sizes, that range from 162 cm – 190 cm (5.31 ft – 6.23 ft). In short, you can easily find one that suits you.
