Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset RED eTAP -
Suspension Rigid -
Drivetrain Electronic -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
155cm - 168cm
SM
163cm - 174cm
MD
170cm - 181cm
MD/LG
175cm - 187cm
LG
181cm - 193cm
XL
188cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Rear Derailleur
SRAM eTap RD
Front Derailleur
Braze-on
Shift Levers
SRAM eTap Shifters
Cassette
SRAM 1190 Cassette
Crank
SRAM Red PF30 Crankset
Bottom Bracket
Press Fit 30 (68mm x 46mm)
Chain
SRAM 1190 Chain
Wheels
Rims
DT 1800 Series Wheels
Tires
Vittoria Corsa Tires
Brakes
Brakes
DISC, flat mount front and rear, 140 or 160mm rotors, internally routed
Cockpit
Stem
Parlee Carbon Stem
Handlebar
Parlee Carbon Handlebar
Headset
Integrated Cane Creek, IS41 upper, IS47 lower
Seat
Seatpost
31.6mm, with hidden binder
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.483 mm | 1.53 mm | 1.537 mm | 1.565 mm | 1.566 mm | 1.589 mm |
| Bottom Bracket Height | 329 mm | 329 mm | 329 mm | 329 mm | 329 mm | 329 mm |
| Front Center | 56 mm | 57 mm | 58 mm | 58 mm | 60 mm | 60 mm |
| Rake | 4.3 mm | 4.3 mm | 4.3 mm | 4.3 mm | 4.3 mm | 4.3 mm |
| Trail | 593 mm | 587 mm | 593 mm | 594 mm | 607 mm | 622 mm |
| Stack | 534 mm | 557 mm | 575 mm | 593 mm | 609 mm | 631 mm |
| Reach | 360 mm | 364 mm | 374 mm | 379 mm | 389 mm | 397 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 434 mm | 455 mm | 472 mm | 492 mm | 506 mm | 520 mm |
| Head Tube Angle | 71.5 ° | 72.5 ° | 73 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Wheelbase | 96 mm | 97 mm | 98 mm | 98 mm | 100 mm | 100 mm |
| Bottom Bracket Drop | 7 mm | 7 mm | 7 mm | 7 mm | 7 mm | 7 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 163 cm | 170 cm | 175 cm | 181 cm | 188 cm |
| Rider Max Height | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 200 cm |
About this model

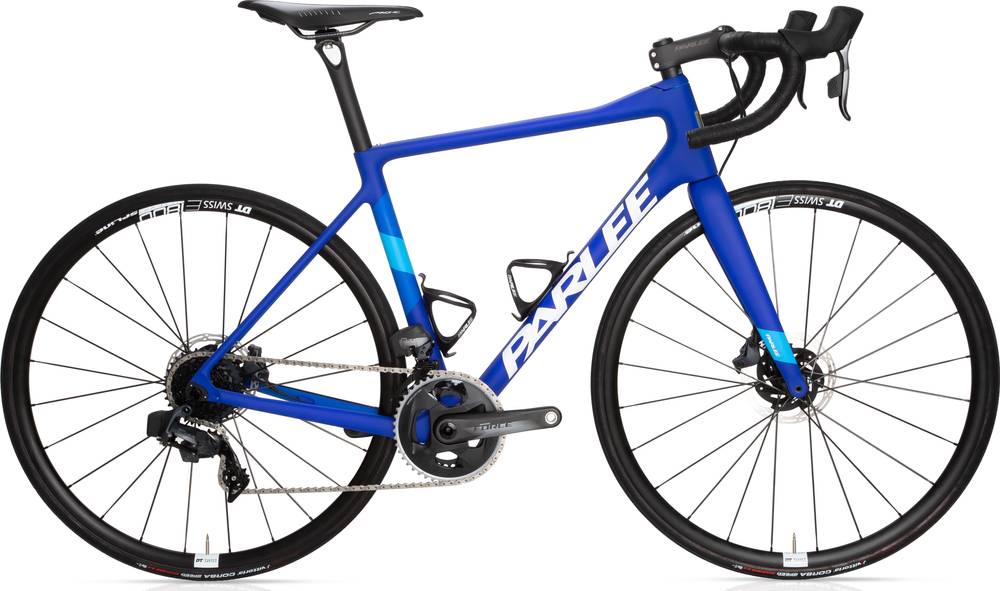

Altum Disc LE – Red eTap AXS is a Parlee Altum model. There are 13 bikes that carry this model name. Take a sneak peek at all Parlee Altum bikes models from 2020, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Race bikes
According to our math, the average price for a trustworthy Race bike is 3350$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork material
Altum Disc LE – Red eTap AXS has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
As for the wheels, Parlee Altum Disc LE – Red eTap AXS 2020, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
Altum Disc LE – Red eTap AXS comes in 6 sizes, that range from 155 cm – 200 cm (5.09 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
