Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
162cm - 173cm
MD
169cm - 180cm
MD/LG
175cm - 186cm
LG
180cm - 192cm
XL
188cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Rear Derailleur
Shimano 105 RD
Front Derailleur
Braze-on
Shift Levers
Shimano 105 Shifters
Cassette
Shimano 105 Cassette
Crank
Shimano 105 Crankset
Bottom Bracket
Press Fit 30 (68mm x 46mm)
Chain
Shimano 105 Chain
Wheels
Rims
DT 1800 Series Wheels
Tires
WTB Nano Tires
Brakes
Brakes
DISC, flat mount front and rear, 140 or 160mm rotors, internally routed
Cockpit
Stem
ZIPP Service Course Stem
Handlebar
ZIPP Service Course 70 XPLR Handlebar
Headset
Integrated Cane Creek, IS41 upper, IS47 lower
Seat
Seatpost
31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.54 mm | 1.56 mm | 1.56 mm | 1.59 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm | 342 mm |
| Front Center | 58 mm | 59 mm | 60 mm | 62 mm | 63 mm |
| Rake | 4.7 mm | 4.7 mm | 4.7 mm | 4.7 mm | 4.7 mm |
| Trail | 607 mm | 617 mm | 627 mm | 639 mm | 650 |
| Stack | 564 mm | 581 mm | 597 mm | 612 mm | 635 mm |
| Reach | 367 mm | 377 mm | 382 mm | 392 mm | 400 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 455 mm | 472 mm | 492 mm | 506 mm | 520 mm |
| Head Tube Angle | 71.5 ° | 71.75 ° | 71.75 ° | 71.75 ° | 72 ° |
| Wheelbase | 104 mm | 105 mm | 106 mm | 108 mm | 109 mm |
| Bottom Bracket Drop | 7 mm | 7 mm | 7 mm | 7 mm | 7 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 169 cm | 175 cm | 180 cm | 188 cm |
| Rider Max Height | 173 cm | 180 cm | 186 cm | 192 cm | 199 cm |
Model Overview

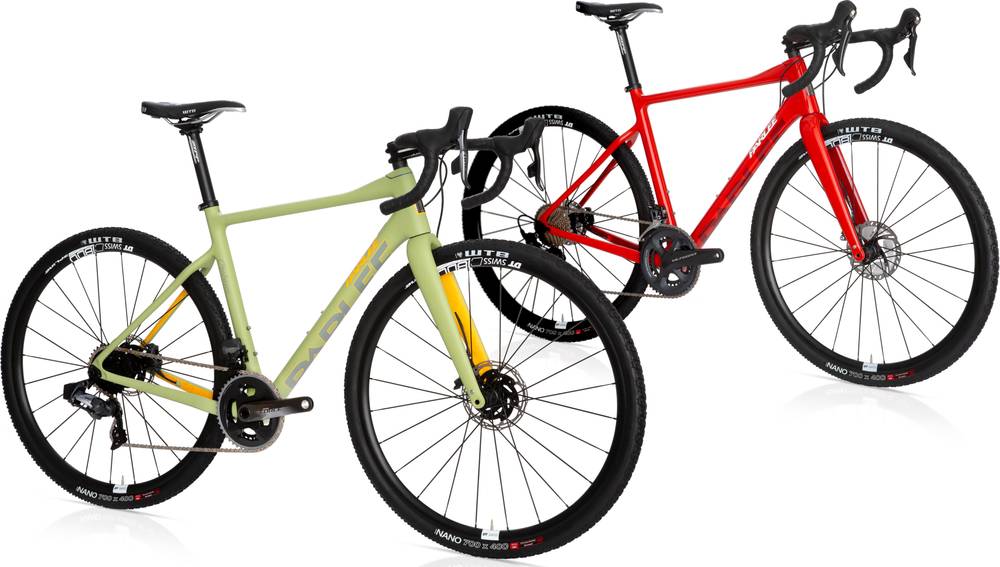

Chebacco – 105 belongs to the Parlee Chebacco model. 9 bikes variations carry this model name so far. Check out the entire range from 2020 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Gravel bikes
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When it comes to wheels, the Chebacco – 105 bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Parlee Chebacco – 105 is equipped with Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
Parlee Chebacco – 105 bike has 5 sizes, in the range of 162 cm – 199 cm (5.31 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
