Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Rhythm Float 36
-
Groupset SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX 36 Rhythm
Rear Shock
FOX DPX2 Performance, 3-position lever, 8.5" x 2.5"
Drivetrain
Rear Derailleur
Shimano SLX M7100, 12-speed
Front Derailleur
None
Shift Levers
Shimano SLX M7100, 12-speed
Cassette
Shimano SLX M7100, 10-51 tooth, 12-speed
Crank
Shimano SLX M7130-1
Chain Guide
None
Pedals
None
Wheels
Front Hub
Shimano M7130
Rear Hub
Shimano M7130
Rims
SUNringlé Düroc 40
Tires
Maxxis DHR II 29 x 2.6" WT, 3C, EXO+, TR
Brakes
Brakes
Magura MT Thirty, 4-piston
Brake Levers
Magura MT Thirty
Seat
Seatpost
SDG Tellis, Travel: 125mm on S/M, 150mm on L/XL
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.34 mm | 1.28 mm | 1.25 mm |
| Bottom Bracket Height | 356 mm | 356 mm | 356 mm | 356 mm |
| Stack | 599 mm | 604 mm | 604 mm | 617 mm |
| Reach | 427 mm | 451 mm | 471 mm | 492 mm |
| Top Tube Length | 571 mm | 597 mm | 617 mm | 644 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 405 mm | 432 mm | 455 mm | 470 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 105 mm | 110 mm | 110 mm | 125 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1192 mm | 1218 mm | 1238 mm | 1266 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm | 18 mm |
| Standover Height | 735 mm | 737 mm | 740 mm | 740 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

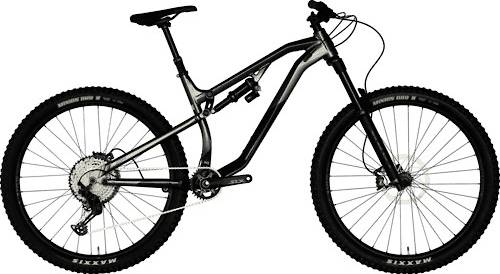

691 completes the Patrol 691 model. Patrol launched 5 bikes of this model so far. Take a sneak peek at all Patrol 691 bikes models from 2020, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro bikes average price
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
691 components
Fork
This bike has the Fox Rhythm Float 36 fork installed. The fork’s travel is 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Patrol 691 bike has the FOX DPX2 Performance model installed, and has a travel of 150mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
As for the wheels, Patrol 691 2020, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The 691 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
A dropper post is included with the 691. Therefore, climbing or descending will be a breeze.
