Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Fork X Fusion
-
Groupset Deore -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
X-Fusion RC32
Rear Shock
None
Drivetrain
Rear Derailleur
Shimano Deore M5100, 11-speed
Front Derailleur
None
Shift Levers
Shimano Deore M5100, 11-speed
Cassette
Shimano Deore M5100, 11-speed, 11-51 tooth
Crank
Shimano Deore M5100
Chain Guide
None
Pedals
None
Wheels
Front Hub
Patrol wheelset, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Rear Hub
Patrol wheelset, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Rims
Patrol wheelset, alloy, 32 hole
Spokes
Patrol wheelset
Tires
VEE Tire Co. Mission, 29" x 2.3"
Brakes
Brakes
Shimano MT200, 2-piston
Brake Levers
Shimano MT200
Seat
Seatpost
KS KSP900-i dropper, Drop: 150mm (SM/MD), 170mm (LG/XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.482 mm | 1.4 mm | 1.337 mm | 1.29 mm |
| Bottom Bracket Height | 308 mm | 308 mm | 308 mm | 308 mm |
| Stack | 630 mm | 630 mm | 635 mm | 645 mm |
| Reach | 425 mm | 450 mm | 475 mm | 500 mm |
| Top Tube Length | 606 mm | 631 mm | 655 mm | 685 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 420 mm | 460 mm | 510 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 105 mm | 110 mm | 110 mm | 115 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1147 mm | 1172 mm | 1199 mm | 1226 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 701 mm | 709 mm | 743 mm | 781 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

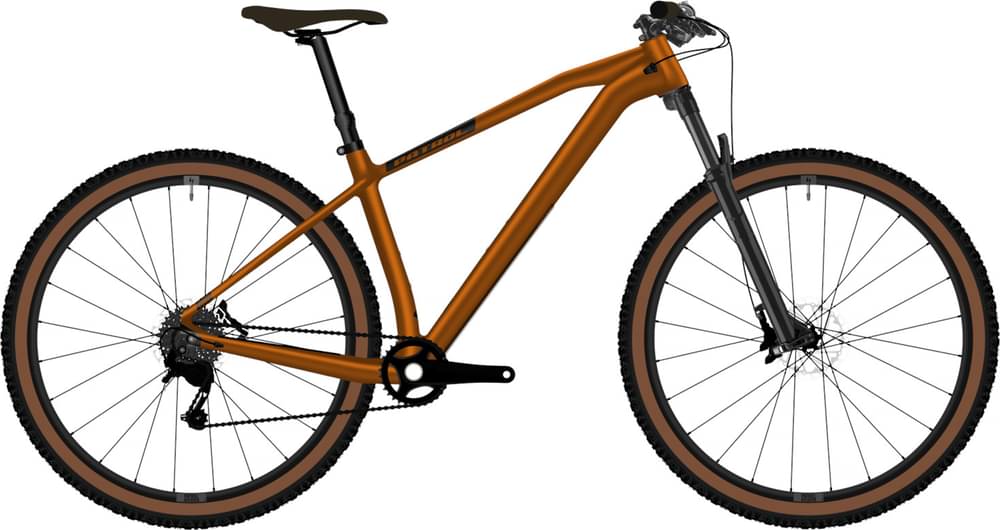

C09 3 belongs to the Patrol C09 model. Patrol launched 3 bikes of this model so far. You can easily view all of the Patrol C09 bikes models from 2021, here.
Model range prices
Patrol C09 3 2021 is the most affordable bike of this model and has a price of 1699$. On the other hand, Patrol C09 1 2021, is the most expensive and costs 2199$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1699$. In conclusion, this bike price is 62.57% lower than the price of the average Trail bike.
Overview of components
Fork
The fork installed on this bike is the X Fusion model. The travel on this model is 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When leaving the production line, the C09 3 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Patrol C09 3 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Patrol C09 3 comes with a dropper post. Therefore, climbing or descending will be a breeze.
