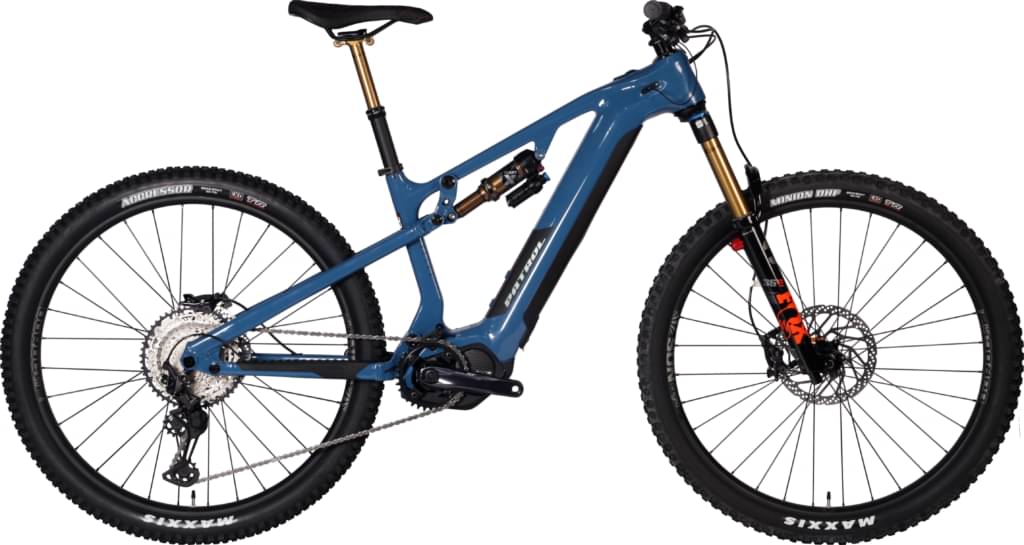

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 130mm -
Fork Fox Factory Float 36
-
Groupset XT, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery SHIMANO BT-E8036, 630Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
PATROL carbon front, alloy rear. Electric trail, 12×148 mm, 130mm travel. Oversize 1.8in headtube.
Suspension Fork
FOX 36 E Factory, 150mm travel
Rear Shock
FOX Float X Factory
Drivetrain
Rear Derailleur
SHIMANO Deore XT M8100, 12s
Shift Levers
SHIMANO Deore XT M8100-R
Cassette
SHIMANO SLX M7100, 12s, 12-51t
Crank
SHIMANO FC-M8150, SM-CRE80-12-SB, 34t
Wheels
Rims
SUNringlé Düroc SD37 rims with SHIMANO SLX hubs, Superboost rear, Boost front.
Tires
VEE Tire Co. Attack HPL, 29×2.50
Brakes
Brakes
SHIMANO Deore XT BR-M8120
Seat
Seatpost
FOX Transfer Factory, 31.6mm, 125mm
Motor & Battery
Motor
SHIMANO Steps DU-EP800
Battery
SHIMANO BT-E8036, 630Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.34 mm | 1.3 mm | 1.26 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 749 mm | 779 mm | 801 mm | 823 mm |
| Rake | 19 mm | 19 mm | 20 mm | 19 mm |
| Trail | 150 mm | 150 mm | 149 mm | 150 mm |
| Stack | 628 mm | 628 mm | 632 mm | 637 mm |
| Reach | 437 mm | 467 mm | 487 mm | 507 mm |
| Top Tube Length | 581 mm | 612 mm | 633 mm | 654 mm |
| Seat Tube Angle | 76.9 ° | 76.9 ° | 76.9 ° | 76.9 ° |
| Seat Tube Length | 390 mm | 410 mm | 450 mm | 492 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 105 mm | 105 mm | 110 mm | 115 mm |
| Chainstay Length | 472 mm | 472 mm | 472 mm | 472 mm |
| Wheelbase | 1219 mm | 1249 mm | 1271 mm | 1293 mm |
| Bottom Bracket Drop | -30 mm | -30 mm | -30 mm | -30 mm |
| Standover Height | 731 mm | 732 mm | 733 mm | 739 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
e-five s belongs to the Patrol E E Five model. 2 e-bikes variations carry this model name so far. You can easily view all of the Patrol E E Five e-bikes models from 2022, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail e-bikes average price
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
e-five s components
Fork
Patrol e-five s 2022 e-bike is equipped with the Fox Factory Float 36 fork, and has 150mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this e-bike has the FOX Float X Factory model, with a travel of 130mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
As for the wheels, Patrol e-five s 2022, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The e-five s comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the e-five s. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
