Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox
-
Groupset SLX, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery SMP -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX FLOAT 38 E
Rear Shock
FOX FLOAT DPX2, 3-position lever, 7.875" x 2.25"
Drivetrain
Rear Derailleur
Shimano SLX M7100, 12-speed
Front Derailleur
None
Shift Levers
Shimano SLX M7100, 12-speed
Cassette
Shimano SLX M7100, 12-speed, 10-51 tooth
Crank
Shimano E8000
Chain
12-speed
Chain Guide
None
Pedals
None
Wheels
Front Hub
Shimano, 15x110mm Boost front, 12x148mm Boost rear with MICRO SPLINE driver
Rear Hub
Shimano, 15x110mm Boost front, 12x148mm Boost rear with MICRO SPLINE driver
Rims
SUNringlé Duroc SD37
Tires
Front: Maxxis Minion DHF, 3C, EXO, TR, 29" x 2.6", Rear: Maxxis Minion DHR II, 3C, EXO, TR, 29" x 2.6"
Brakes
Brakes
Shimano MT420, 4-piston
Brake Levers
Shimano MT420
Seat
Seatpost
SDG Tellis dropper, Drop: 125mm (SM), 150mm (MD/LG/XL)
Motor & Battery
Motor
Shimano STEPS EP8, 85Nm max torque
Battery
SMP
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.349 mm | 1.293 mm | 1.28 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm | 349 mm |
| Stack | 609 mm | 614 mm | 614 mm | 627 mm |
| Reach | 435 mm | 455 mm | 475 mm | 490 mm |
| Top Tube Length | 566 mm | 587 mm | 609 mm | 627 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 400 mm | 420 mm | 455 mm | 470 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 105 mm | 110 mm | 115 mm | 125 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1199 mm | 1221 mm | 1244 mm | 1263 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 716 mm | 719 mm | 722 mm | 724 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

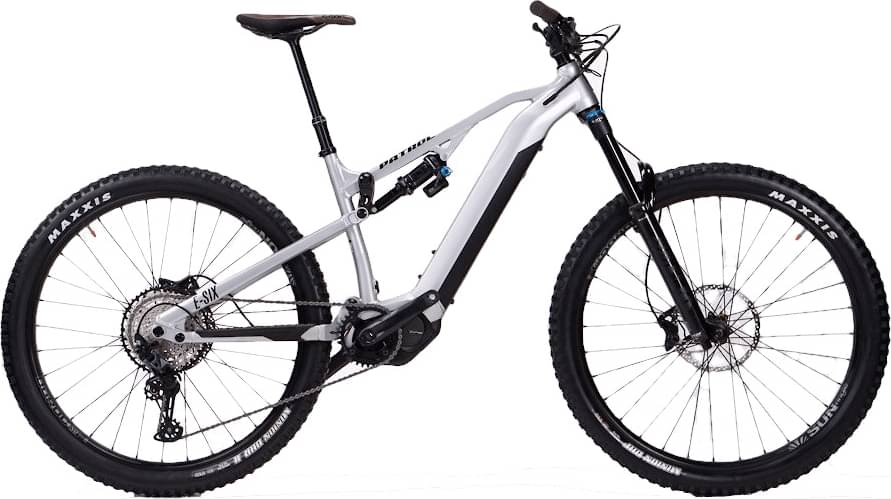

About this model
E-Six belongs to the Patrol E E Six model. Patrol released 6 e-bikes variations of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
E-Six components
Fork
Patrol E-Six 2021 e-bike is equipped with the Fox fork, and has 160mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this e-bike is FOX FLOAT DPX2, with a travel distance of 150mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When it comes to wheels, the E-Six e-bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The E-Six has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
E-Six comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
The Patrol model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
