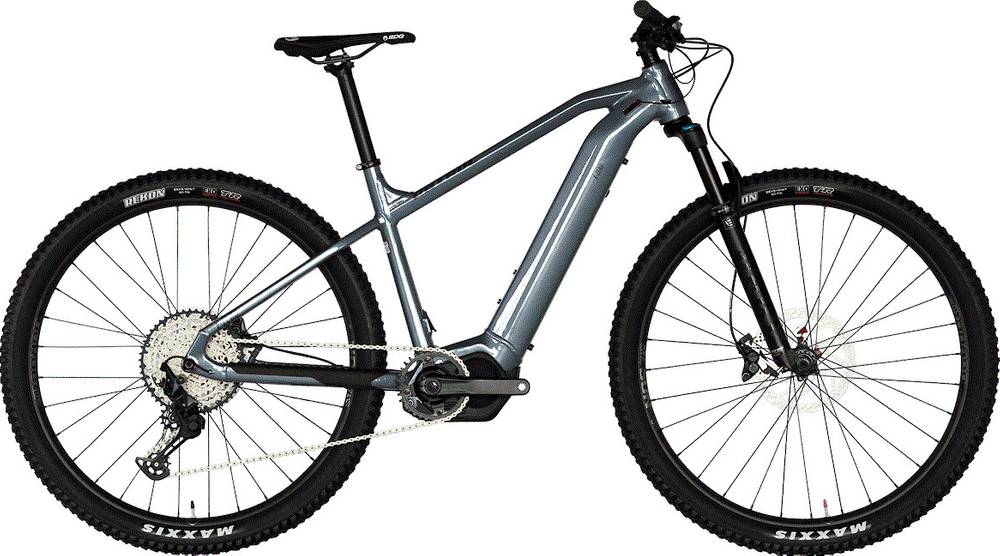

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 110mm -
Fork Fox Rhythm Float 34
-
Groupset SLX, Shimano -
Suspension Hardtail -
Motor Shimano 250W 70Nm mid-drive -
Battery SMP, 36V -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX 34 Rhythm E-Bike
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano SLX M7100, 12-speed
Front Derailleur
None
Shift Levers
Shimano SLX M7100-IR, 12-speed
Cassette
Shimano SLX M7100, 12-speed, 10-51 tooth
Crank
Shimano E8000
Chain Guide
None
Pedals
None
Wheels
Front Hub
Shimano
Rear Hub
Shimano
Rims
SUNringlé Düroc 40
Tires
Maxxis Rekon 29 x 2.4" WT, EXO, TR
Brakes
Brakes
Shimano MT420
Brake Levers
Shimano MT420
Motor & Battery
Motor
Shimano STEPS E8000
Battery
SMP, 36V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.547 mm | 1.431 mm | 1.363 mm | 1.321 mm |
| Bottom Bracket Height | 323 mm | 323 mm | 323 mm | 323 mm |
| Stack | 608 mm | 608 mm | 608 mm | 617 mm |
| Reach | 393 mm | 425 mm | 446 mm | 467 mm |
| Top Tube Length | 567 mm | 599 mm | 620 mm | 644 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 445 mm | 470 mm | 495 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 110 mm | 110 mm | 110 mm | 120 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1120 mm | 1153 mm | 1173 mm | 1198 mm |
| Bottom Bracket Drop | 51 mm | 51 mm | 51 mm | 51 mm |
| Standover Height | 715 mm | 716 mm | 714 mm | 704 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
E-Zero is part of the Patrol E E Zero model. There are 6 e-bikes that carry this model name. You can easily view all of the Patrol E E Zero e-bikes models from 2020, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry e-bikes average price
If you want to purchase a solid Crosscountry e-bike, it is important to know that the average cost is 2453$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
E-Zero components
Fork
The Fox Rhythm Float 34 is included from the factory. It has a travel distance of 110mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When it comes to wheels, the E-Zero e-bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Patrol E-Zero is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
