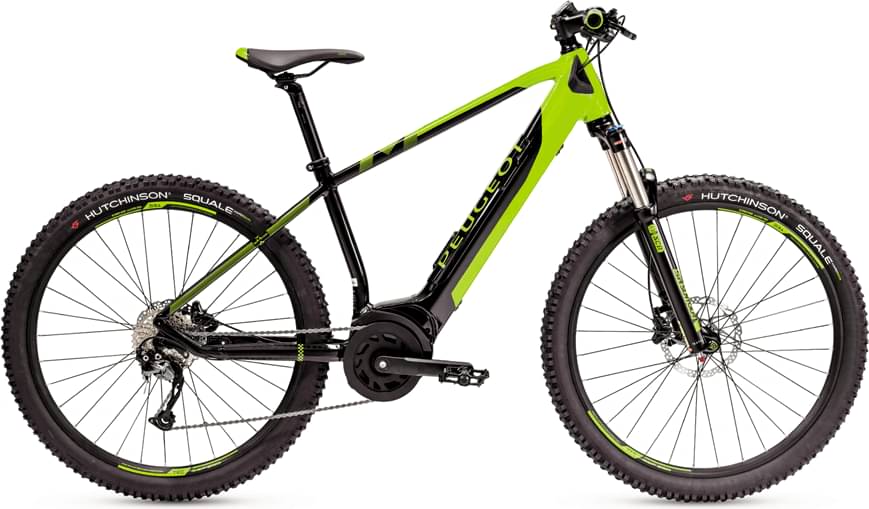

peugeot eM02 Bosch Active Line 29″ 2023
2023 E-bike
Weight | 22.1 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 51mm -
Fork Suntour XCR
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 250W 40Nm mid-drive -
Battery Bosch PowerTube, 400 Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 T6, disque, hydroformé
Suspension Fork
Suntour XCR34-Boost hydraulique avec lockout
Drivetrain
Rear Derailleur
Shimano Alivio, RD-M4000-SGS
Shift Levers
Shimano Alivio, SL-M4000, 9V
Cassette
Shimano CS-HG400-9, 11-36T
Crank
Aluminium 170, 38 teeth
Wheels
Front Hub
Shimano MT400-B / M4050 Centerlock 32T
Rear Hub
Shimano MT400-B / M4050 Centerlock 32T
Rims
Mach 1 CrossR 29'' 48-52
Tires
Hutchinson Squale 27,5 x 2,25'' 40-44 / 29 x 2,25'' 48-52
Brakes
Brakes
Shimano MT201 hydrauliques, 180 / 160 mm
Cockpit
Stem
Aluminium 70 x 31,8 x 7°
Handlebar
Aluminium rise 20 mm 720 x 20 x 31,8 x 6°
Seat
Saddle
Selle Royal Vivo
Seatpost
Tec Obvius 31,6 x 350 mm, 15 mm offset
Motor & Battery
Motor
Bosch Active Line
Battery
Bosch PowerTube, 400 Wh
Charger
Compact 2Ah (100-240V)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Top Tube Length | 573 mm | 597 mm | 620 mm | 645 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 410 mm | 440 mm | 490 mm | 540 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 473 mm | 473 mm | 473 mm | 473 mm |
| Front Travel | 51 mm | 51 mm | 51 mm | 51 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
eM02 Bosch Active Line 29″ is part of the Peugeot E Em02 model. Peugeot released 8 e-bikes variations of this model so far. Take a sneak peek at all Peugeot E Em02 e-bikes models from 2023, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry e-bikes average price
If you want an acceptable Crosscountry e-bike you should know that the average price is 2453$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Crosscountry e-bikes
Crosscountry e-bikes have an average weight of 22.58 kg (49.78 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
eM02 Bosch Active Line 29″ weighs 22.1 kg (48.72 lbs) and is slightly lighter than the average. In other words, this model is 2.17% lighter than the average Crosscountry e-bike.
Overview of components
Fork
Peugeot eM02 Bosch Active Line 29″ 2023 e-bike is equipped with the Suntour XCR fork, and has 51mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The eM02 Bosch Active Line 29″ 2023 e-bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The eM02 Bosch Active Line 29″ comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
