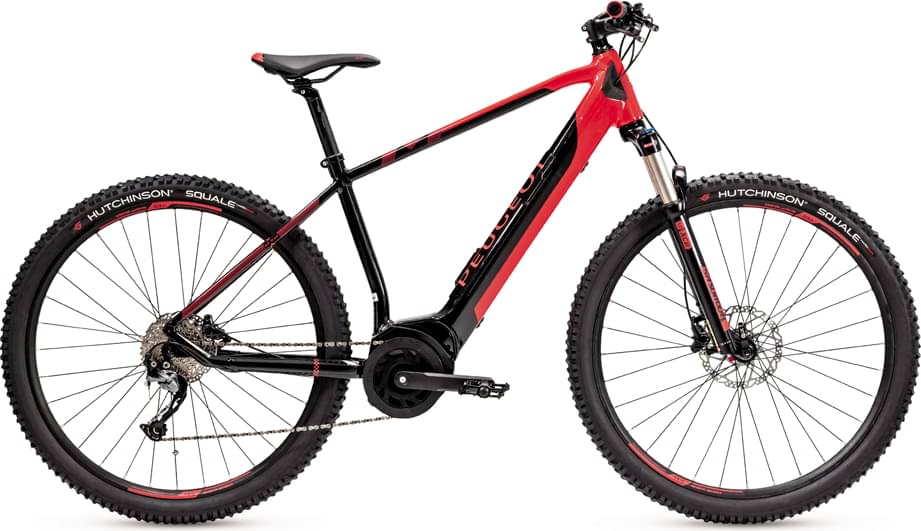

peugeot eM02 Performance 29″ 2023
2023 E-bike
Weight | 22.1 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 51mm -
Fork Suntour XCR
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube, 500 Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 T6, disque, hydroformé
Suspension Fork
Suntour XCR34-Boost hydraulique avec lockout
Drivetrain
Rear Derailleur
Shimano Alivio, RD-M4000-SGS
Shift Levers
Shimano Alivio, SL-M4000, 9V
Cassette
Shimano CS-HG400-9, 11-36T
Crank
Aluminium 170, 38 dents
Wheels
Front Hub
Shimano MT400-B / M4050 Centerlock 32T
Rear Hub
Shimano MT400-B / M4050 Centerlock 32T
Rims
Mach 1 CrossR 29'' / tailles : 48-52
Tires
Hutchinson Squale 29 x 2,25''
Brakes
Brakes
Shimano MT400 hydrauliques, 180 / 160 mm
Cockpit
Stem
Aluminium 70 x 31,8 x 7°
Handlebar
Aluminium rise 20 mm 720 x 20 x 31,8 x 6°
Seat
Saddle
Selle Royal Vivo
Seatpost
Tec Obvius 31,6 x 350 mm, 15 mm offset
Motor & Battery
Motor
Bosch Performance Line
Battery
Bosch PowerTube, 500 Wh
Charger
Compact 2Ah (100-240V)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Top Tube Length | 573 mm | 597 mm | 620 mm | 645 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 410 mm | 440 mm | 490 mm | 540 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 473 mm | 473 mm | 473 mm | 473 mm |
| Front Travel | 51 mm | 51 mm | 51 mm | 51 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
eM02 Performance 29″ completes the Peugeot E Em02 model. 8 e-bikes variations carry this model name so far. You can easily view all of the Peugeot E Em02 e-bikes models from 2023, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry e-bikes
If you want an acceptable Crosscountry e-bike you should know that the average price is 2453$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Crosscountry e-bikes average weight
The average weight for Crosscountry e-bikes is 22.58 kg (49.78 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Peugeot eM02 Performance 29″ it’s weighing 22.1 kg (48.72 lbs). At this weight, is slightly lighter than average. In short, the average Crosscountry e-bike weight is 2.17% higher than this one.
Overview of components
Fork
The eM02 Performance 29″ comes factory-installed with the Suntour XCR fork. This has a travel range of 51mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The eM02 Performance 29″ 2023 e-bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Peugeot eM02 Performance 29″ has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Peugeot eM02 Performance 29″ e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
