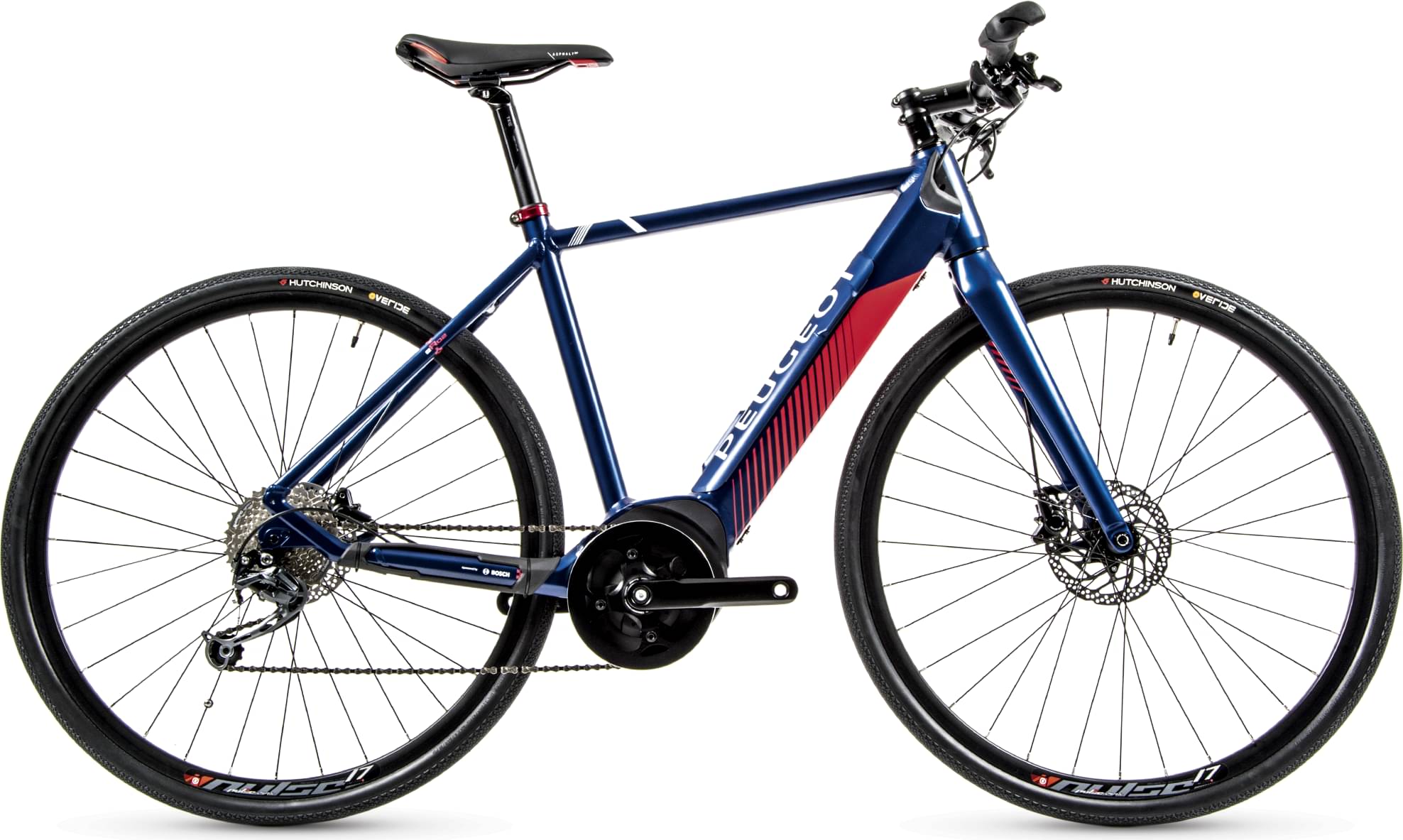

peugeot eR02 FlatBar PowerTube 2023
2023 E-bike
Weight | 18.2 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset Deore, Alivio -
Suspension Rigid -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerTube battery, 500 Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 7005, post-mount
Suspension Fork
Carbone, Post Mount disque
Drivetrain
Rear Derailleur
Shimano Deore, RD-M592 SGS
Shift Levers
Shimano SL-M4000, 9V
Cassette
Shimano CS-HG201-9, 11-36T
Crank
Aluminium, 42 teeth
Wheels
Front Hub
Shimano RS470/MT400 Thru-Axle, 100 / 142 mm
Rear Hub
Shimano RS470/MT400 Thru-Axle, 100 / 142 mm
Rims
Mach 1 Pulse 17, Tubeless Ready
Tires
Hutchinson Overide, 700 x 35C, 66 tpi
Brakes
Brakes
Shimano MT400 hydrauliques, 160 / 160 mm
Cockpit
Stem
Tec Obvius, 31,8 x 90 mm (S-M) / 100 mm (L-XL)
Handlebar
Tec Aluminium, 31,8 x 600
Seat
Saddle
Selle Royal Asphalt
Seatpost
Tec Obvius 31,6 x 350 mm, 15 mm offset
Motor & Battery
Motor
Bosch Active Line Plus
Battery
Bosch PowerTube battery, 500 Wh
Charger
2A (220-240V)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 130 mm | 130 mm | 130 mm | 130 mm |
| Top Tube Length | 515 mm | 525 mm | 545 mm | 565 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 570 mm |
| Head Tube Angle | 70 ° | 71 ° | 72 ° | 73 ° |
| Head Tube Length | 140 mm | 140 mm | 150 mm | 160 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 335 mm | 335 mm | 335 mm | 335 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Front Travel | 45 mm | 45 mm | 45 mm | 45 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
eR02 FlatBar PowerTube completes the Peugeot E Er02 model. 4 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for General Road e-bikes
If you want an acceptable General Road e-bike you should know that the average price is 2631$. However, even if your budget is less than the average, you might still be able to get a top-quality General Road e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Average weight for General Road e-bikes
On a deeper look, we notice that the average weight of a General Road e-bike is 18.41 kg (40.59 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
slightly lighter than average, eR02 FlatBar PowerTube has a weight of 18.2 kg (40.12 lbs). To sum up, it’s 1.15% lighter than the average weight of General Road e-bikes.
eR02 FlatBar PowerTube components
Fork material
eR02 FlatBar PowerTube has a carbon fork, so, it’s a great addition to the e-bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
As for the wheels, Peugeot eR02 FlatBar PowerTube 2023, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Peugeot eR02 FlatBar PowerTube has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
