Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 47mm -
Fork Suntour XCR
-
Groupset Deore, Altus -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 T6, 29", Rigide, Tapered, Double butted
Suspension Fork
Suntour XCR32, COIL RLR DS, 100 mm, 29", remote
Drivetrain
Rear Derailleur
Shimano Deore, RD-M591-SGS, Shadow Design
Front Derailleur
Shimano Altus, FD-M2020, Down-swing
Shift Levers
Shimano Alivio, SL-M4000, 9V
Cassette
Shimano, HG201, 11-34, 9V
Crank
Shimano, FC-MT210, 36 x 22 170 mm (40/43) 175 mm (48/52)
Pedals
Resin - steel
Wheels
Front Hub
Boost Aluminium, disque, 32T, 110 / 141 mm
Rear Hub
Boost Aluminium, disque, 32T, 110 / 141 mm
Rims
Tec SSP225, 29 ", Disque, Tubeless Ready
Tires
Kenda Small Block Eight 29 x 2,1
Brakes
Brakes
Shimano, MT-201 hydrauliques, 180 / 160 mm
Cockpit
Stem
Tec Obvius 60/70/80/90 mm x 31,8 x 7°
Handlebar
Tec Obvius Flatbar 720 x 31,8 x 9°
Seat
Saddle
Tec Unicus
Seatpost
Tec Obvius alu 6061 T6, 31,6 x 350 mm, 15 mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 324 mm | 324 mm | 324 mm | 324 mm |
| Top Tube Length | 574 mm | 598 mm | 627 mm | 653 mm |
| Seat Tube Angle | 67.1 ° | 67.1 ° | 66.6 ° | 66.6 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm | 447 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Front Travel | 47 mm | 47 mm | 47 mm | 47 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

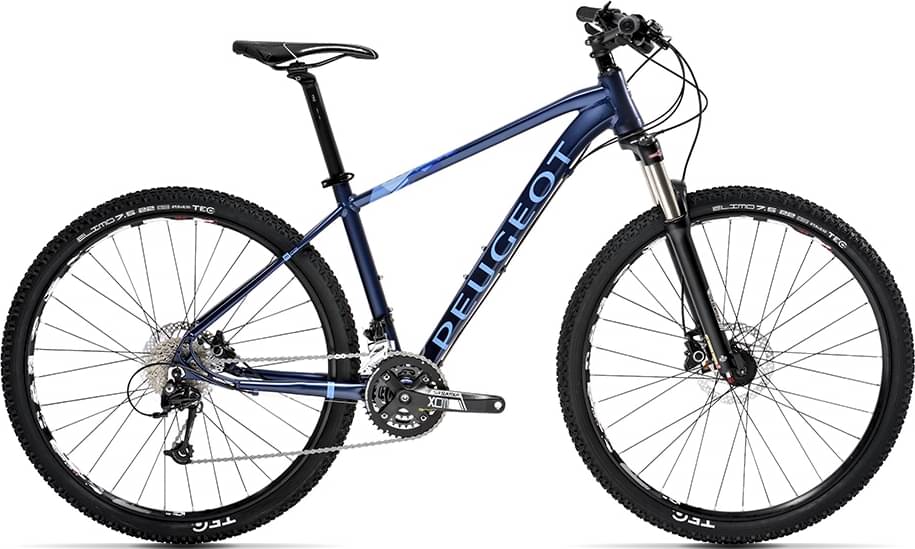

M02 Alivio 18 29″ is part of the Peugeot M02 model. There are 5 bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Crosscountry bikes
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
M02 Alivio 18 29″ weighs 13.4 kg (29.54 lbs) and is a bit heavier than the average. To sum up, it’s 8.06% heavier than the average weight of Crosscountry bikes.
Overview of components
Fork
The M02 Alivio 18 29″ comes factory-installed with the Suntour XCR fork. This has a travel range of 47mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
As for the wheels, Peugeot M02 Alivio 18 29″ 2023, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Peugeot M02 Alivio 18 29″ is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
M02 Alivio 18 29″ comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
