Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon 950g with passage for internal cable
Suspension Fork
Carbon

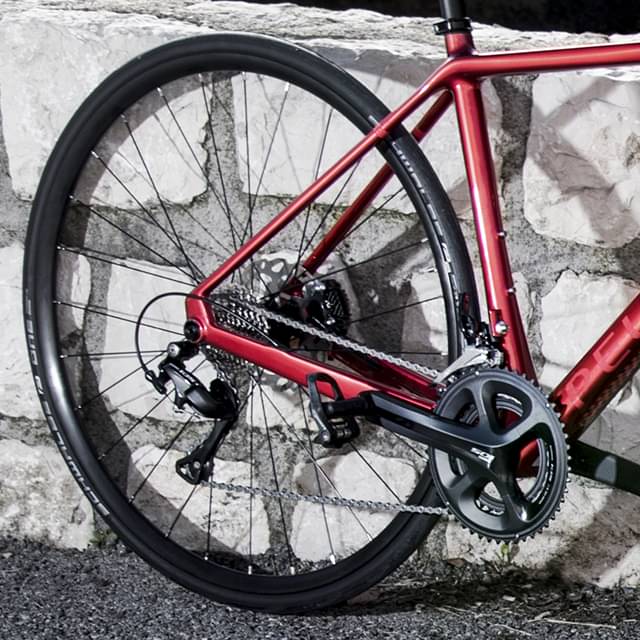

Drivetrain
Rear Derailleur
Shimano 105
Front Derailleur
Shimano 105
Shift Levers
Shimano 105 22 speeds
Cassette
Shimano 105
Crank
Shimano 105
Pedals
VP-399T
Wheels
Front Hub
Formula Center Lock 100 / 142 mm
Rear Hub
Formula Center Lock 100 / 142 mm
Rims
Tec aluminum with double sidewall
Tires
Continental Ultra Sport II
Brakes
Brakes
Shimano RS-505 160 / 160 mm hydraulic discs
Cockpit
Stem
3T ARX 31.8 mm
Handlebar
3T Tornova 31.8 x 139 mm
Seat
Saddle
Tec Unicus Cromo
Seatpost
3T Stilo Pro 27.2 x 350 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Bottom Bracket Height | 264 mm | 264 mm | 267 mm | 267 mm | 269 mm | 269 mm |
| Front Center | 103 mm | 103 mm | 101 mm | 101 mm | 100 mm | 100 mm |
| Top Tube Length | 507 mm | 522 mm | 537 mm | 552 mm | 572 mm | 587 mm |
| Seat Tube Angle | 74.5 ° | 74.2 ° | 73.5 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm | 570 mm |
| Head Tube Angle | 71.5 ° | 72.2 ° | 73 ° | 73 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 115 mm | 125 mm | 140 mm | 155 mm | 175 mm | 195 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 327 mm | 327 mm | 327 mm | 327 mm | 327 mm | 327 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 69 mm | 69 mm | 67 mm | 67 mm |
| Front Travel | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
About this model

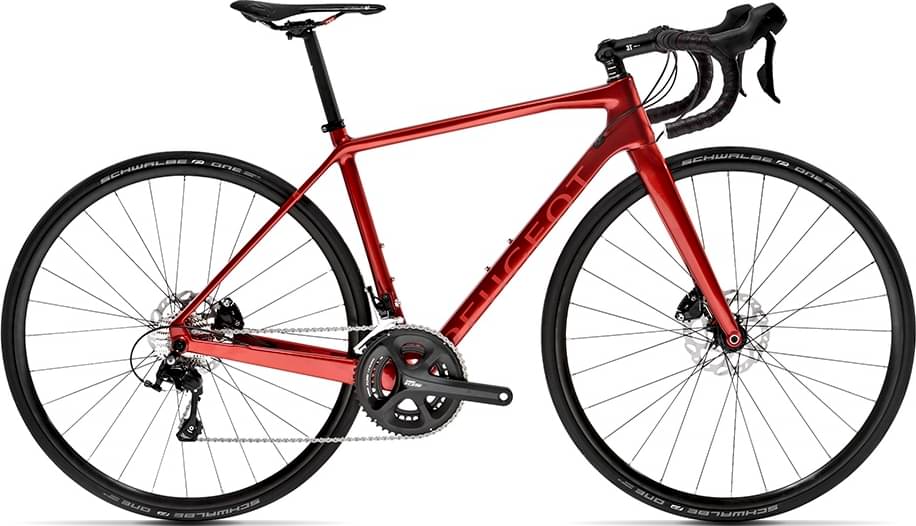

R02 Carbon 105 is part of the Peugeot R02 model. Peugeot released 5 bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Race bikes
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Race bikes
Race bikes have an average weight of 6.72 kg (14.82 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Peugeot R02 Carbon 105 it’s weighing 8.7 kg (19.18 lbs). At this weight, is much heavier than average. In conclusion, the average Race bike weighs 29.46% less than R02 Carbon 105.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
R02 Carbon 105 components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The R02 Carbon 105 2023 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes

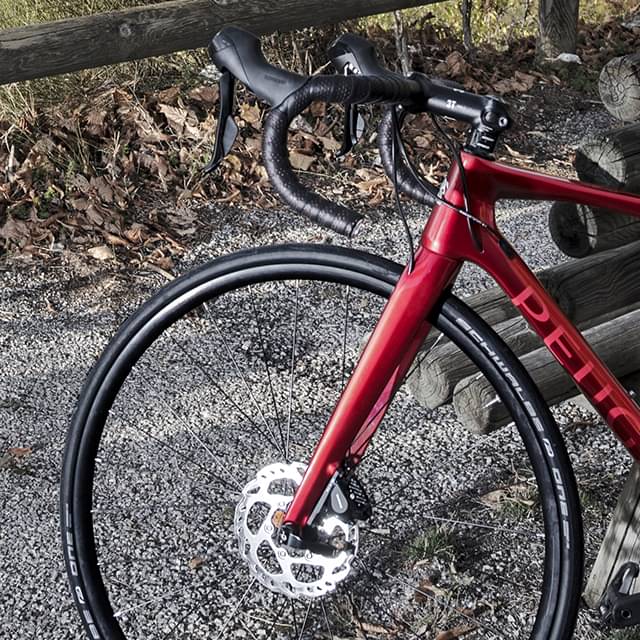

We ride faster and faster, so a good braking system is essential on a bike nowadays. The R02 Carbon 105 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
R02 Carbon 105 comes in 6 sizes, that range from 158 cm – 194 cm (5.18 ft – 6.36 ft). In short, it won’t be difficult to find the right one for you.
