Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum with double stop
Suspension Fork
Carbon

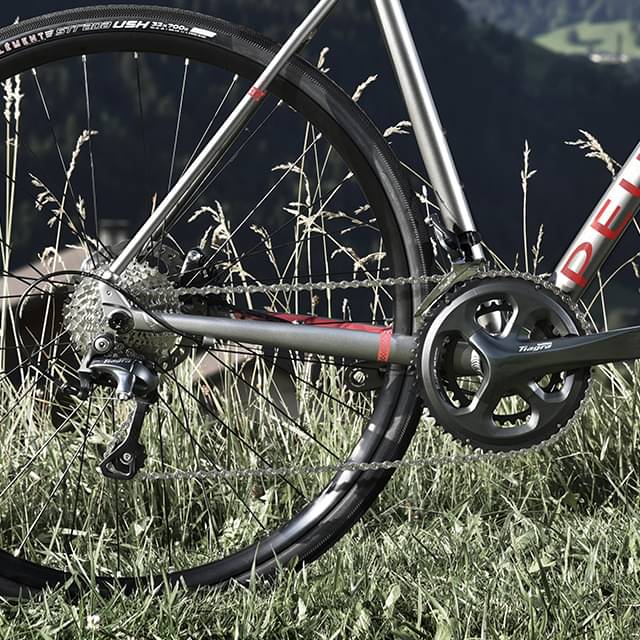

Drivetrain
Rear Derailleur
Shimano Tiagra
Front Derailleur
Shimano Tiagra
Shift Levers
Shimano Tiagra 20 speeds
Cassette
Shimano Tiagra
Crank
Shimano Tiagra 170 mm / 172.5 mm / 175 mm
Pedals
VP-399T
Wheels
Front Hub
Formula Center Lock 100 mm / 142 mm
Rear Hub
Formula Center Lock 100 mm / 142 mm
Rims
Tec with double sidewall tubeless compatible
Tires
Clement X-Plor USH
Brakes
Brakes
Shimano RS-405 160 / 160 mm hydraulic discs
Cockpit
Stem
Tec Obvius 31,8 x 90 mm / 100 mm / 110 mm / 120 mm
Handlebar
Tec 31.8 x 400 mm / 420 mm / 440 mm
Seat
Saddle
Italia X1 Flow
Seatpost
Tec Obvius 27.2 x 350 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 264 mm | 267 mm | 267 mm | 269 mm |
| Front Center | 108 mm | 107 mm | 107 mm | 106 mm |
| Top Tube Length | 531 mm | 546 mm | 561 mm | 581 mm |
| Seat Tube Angle | 74.2 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 70.2 ° | 71 ° | 71 ° | 71.5 ° |
| Head Tube Length | 125 mm | 140 mm | 155 mm | 175 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 336 mm | 336 mm | 336 mm | 336 mm |
| Bottom Bracket Drop | 72 mm | 69 mm | 69 mm | 67 mm |
| Front Travel | 45 mm | 45 mm | 45 mm | 45 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

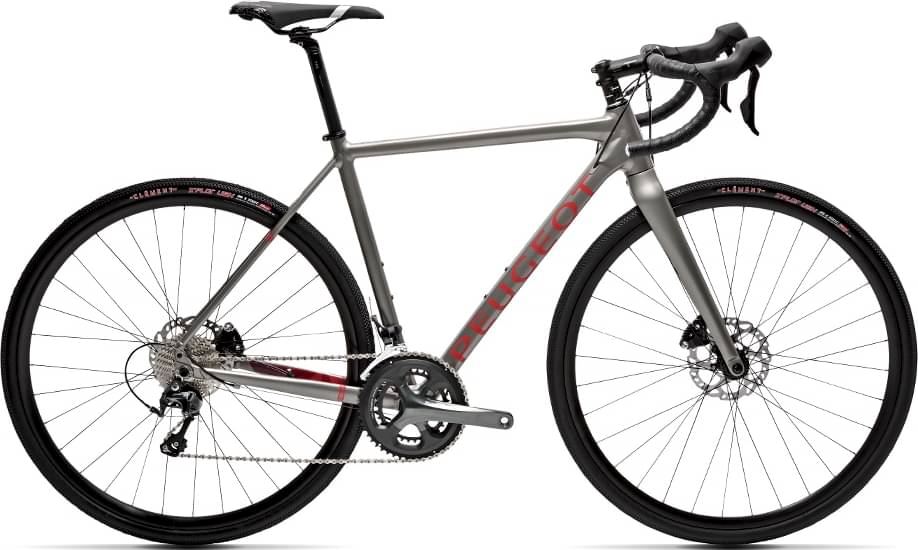

R02 Gravel Tiagra is part of the Peugeot R02 model. Peugeot released 5 bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Race bikes
If you want to purchase a solid Race bike, it is important to know that the average cost is 3350$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Race bikes average weight
Race bikes weigh an average of 6.72 kg (14.82 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
R02 Gravel Tiagra weighs 9.8 kg (21.61 lbs) and is much heavier than the average. In short, the average Race bike weight is 45.83% lower than this one.
Overview of components
Fork material

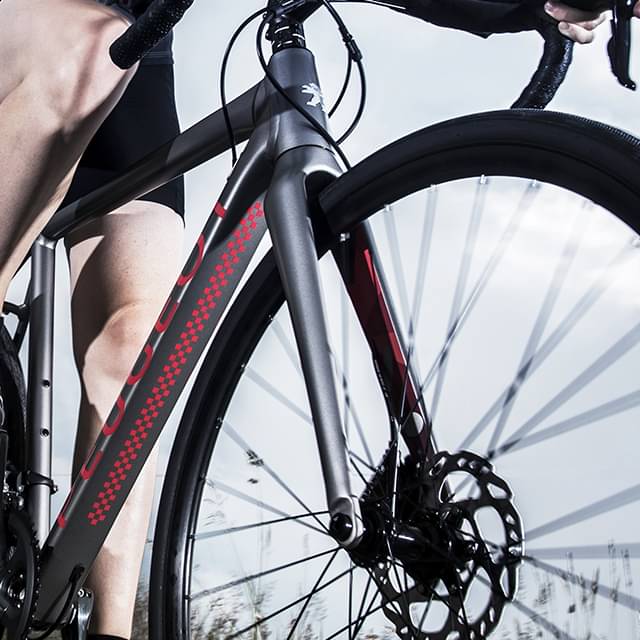

When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
As for the wheels, Peugeot R02 Gravel Tiagra 2023, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The R02 Gravel Tiagra comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Peugeot R02 Gravel Tiagra bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
