Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Torayca T600 UD, internal cable routing, Italian BB, UCI approved
Suspension Fork
Angliru Onda Fork with Forkflap™, tapered head tube
Drivetrain
Rear Derailleur
shimano tiagra 4700 gs 10s
Front Derailleur
shimano tiagra 4700 10s
Cassette
Shimano HG500 10s
Bottom Bracket
shimano tiagra
Chain
shimano tiagra 4700 10s
Wheels
Rims
Shimano RS
Tires
Pirelli P7 - Black, 60tpi Nylon breaker, max tyre size 28mm (width as measured)
Brakes
Brakes
shimano tiagra 4700, 2 pistons caliper, 160mm rotor
Cockpit
Stem
most alu
Handlebar
most alu
Seat
Saddle
most saddle
Seatpost
most alu round seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 48cm | 51cm | 54cm | 55.5cm | 57cm | 59cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.48 mm | 1.46 mm | 1.54 mm | 1.54 mm | 1.54 mm | 1.6 mm |
| Bottom Bracket Height | 269 mm | 269 mm | 269 mm | 264 mm | 264 mm | 264 mm | 264 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Stack | 508 mm | 521 mm | 536 mm | 564 mm | 578 mm | 593 mm | 617 mm |
| Reach | 341 mm | 353 mm | 366 mm | 367 mm | 375 mm | 384 mm | 386 mm |
| Top Tube Length | 501 mm | 514 mm | 528 mm | 541 mm | 553 mm | 566 mm | 581 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 430 mm | 460 mm | 490 mm | 520 mm | 535 mm | 550 mm | 570 mm |
| Head Tube Angle | 69.5 ° | 70.5 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 160 mm | 175 mm | 190 mm | 215 mm |
| Chainstay Length | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

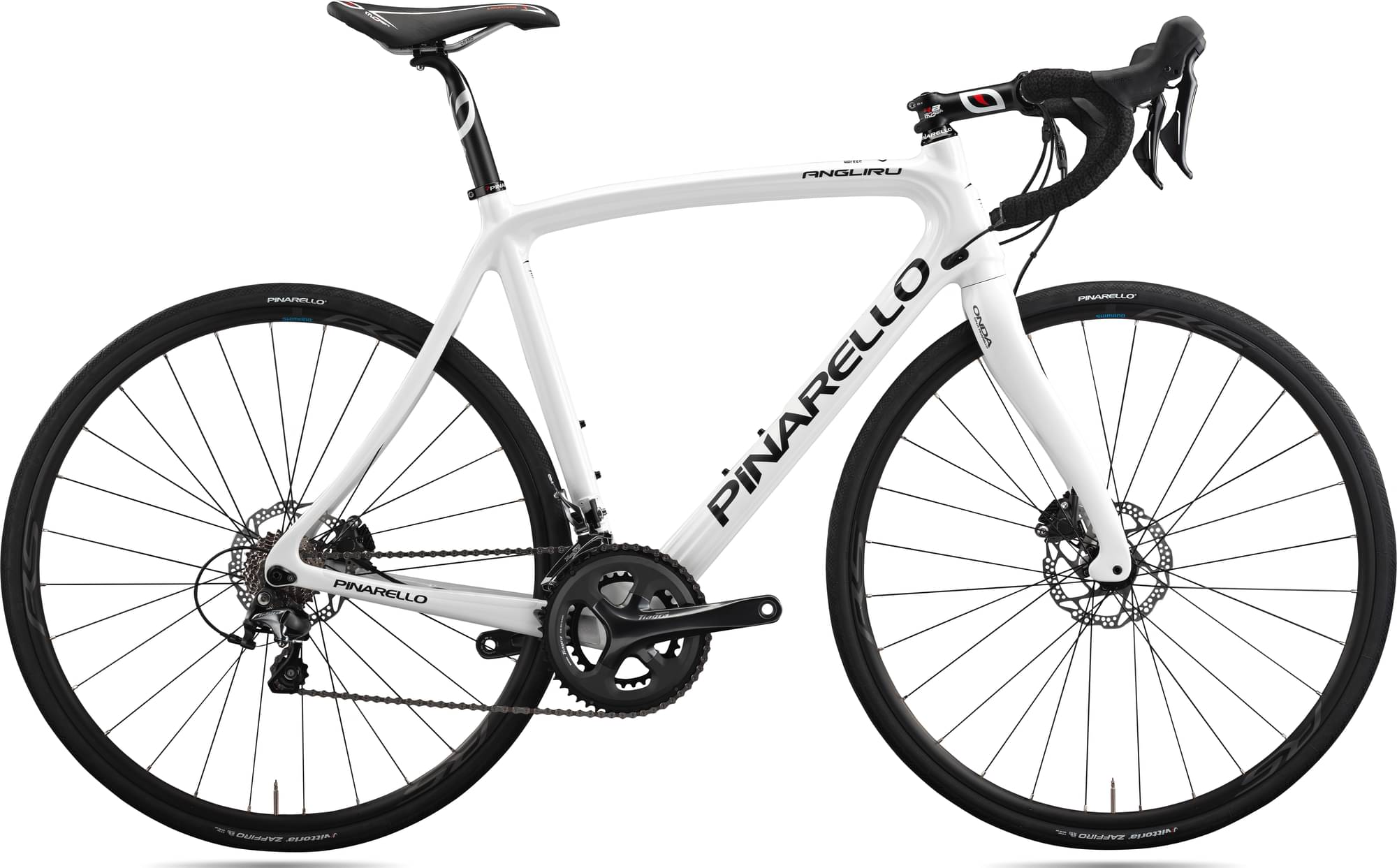

Angliru Tiagra Disc is a Pinarello Angliru model. Pinarello launched 6 bikes of this model so far. Take a sneak peek at all Pinarello Angliru bikes models from 2022, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Race bikes
If you want to purchase a solid Race bike, it is important to know that the average cost is 3350$. However, you could also get a good Race bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
As for the wheels, Pinarello Angliru Tiagra Disc 2022, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Pinarello Angliru Tiagra Disc is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
