Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Torayca T600 UD, internal cable routing, Italian BB, UCI approved
Suspension Fork
Angliru Onda Fork with Forkflap™, tapered head tube
Drivetrain
Rear Derailleur
shimano tiagra 4700 gs 10s
Front Derailleur
shimano tiagra 4700 10s
Cassette
Shimano HG500 10s
Bottom Bracket
shimano tiagra
Chain
shimano tiagra 4700 10s
Wheels
Rims
Shimano RS
Tires
Pirelli P7 - Black, 60 tpi nylon breaker, max tyre size 25mm (width as measured)
Brakes
Brakes
shimano tiagra 4700
Cockpit
Stem
most alu
Handlebar
most alu
Seat
Saddle
most saddle
Seatpost
most alu round seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 48cm | 51cm | 54cm | 55.5cm | 57cm | 59cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.48 mm | 1.46 mm | 1.54 mm | 1.54 mm | 1.54 mm | 1.6 mm |
| Bottom Bracket Height | 269 mm | 269 mm | 269 mm | 264 mm | 264 mm | 264 mm | 264 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Stack | 508 mm | 521 mm | 536 mm | 564 mm | 578 mm | 593 mm | 617 mm |
| Reach | 341 mm | 353 mm | 366 mm | 367 mm | 375 mm | 384 mm | 386 mm |
| Top Tube Length | 501 mm | 514 mm | 528 mm | 541 mm | 553 mm | 566 mm | 581 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 430 mm | 460 mm | 490 mm | 520 mm | 535 mm | 550 mm | 570 mm |
| Head Tube Angle | 69.5 ° | 70.5 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 160 mm | 175 mm | 190 mm | 215 mm |
| Chainstay Length | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

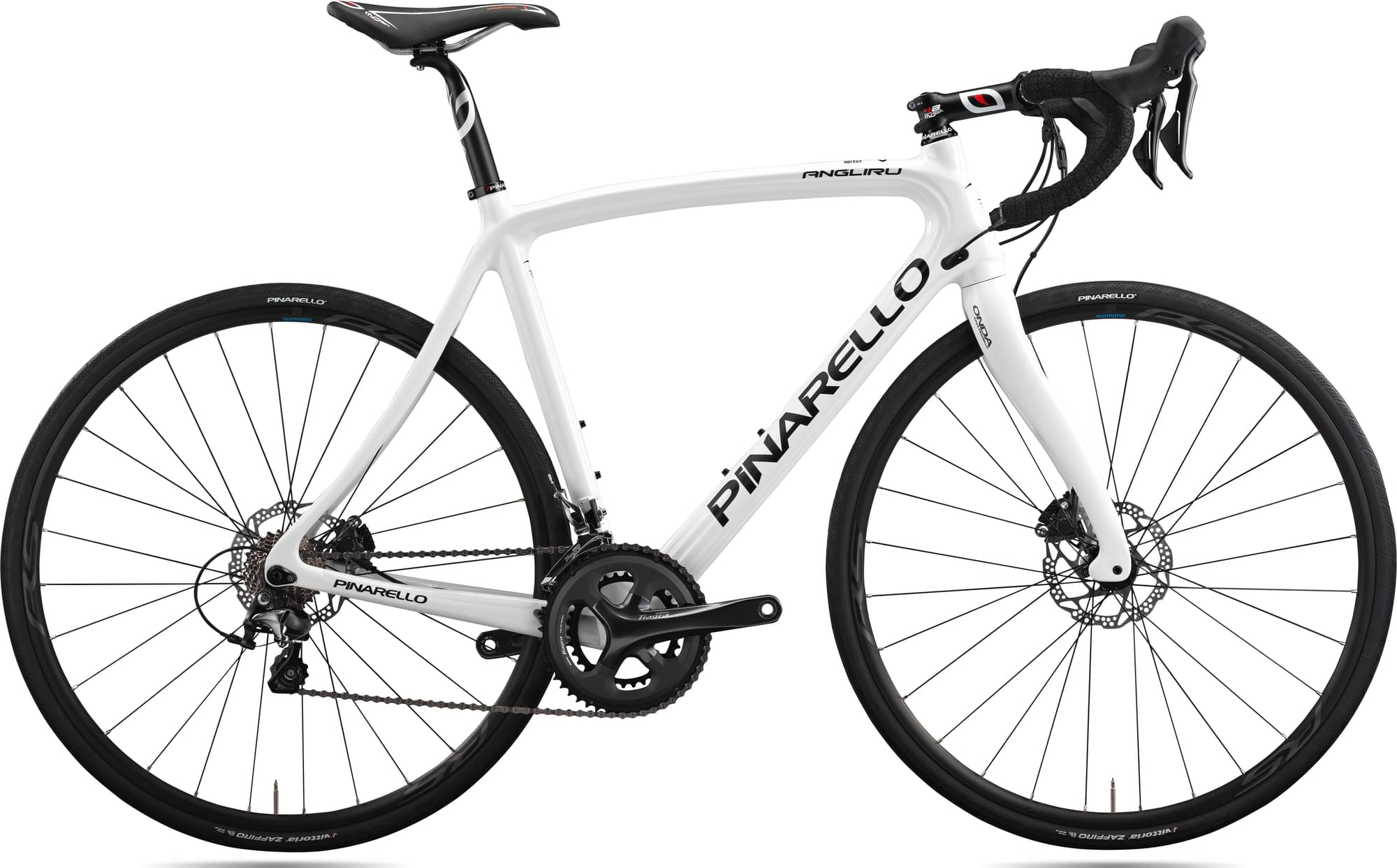

Angliru Tiagra Rim belongs to the Pinarello Angliru model. 6 bikes variations carry this model name so far. You can easily view all of the Pinarello Angliru bikes models from 2022, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Race bikes average price
Our math shows that the average cost of a dependable Race bike is 3350$. However, you could also get a good Race bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Angliru Tiagra Rim components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When leaving the production line, the Angliru Tiagra Rim model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Pinarello Angliru Tiagra Rim has Rim brakes installed. Rim brakes deliver an average performance overall. However, you could spend a little extra and get a bike that has hydraulic brakes.
