Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TorayCa M40X, TiCR™ Cable Routing, Italian BB
Suspension Fork
Bolide TT Onda Fork with ForkFlap™, tapered head tube
Drivetrain
Rear Derailleur
Shimano Dura Ace Di2 FD-R9100 11s
Front Derailleur
Shimano Dura Ace Di2 FD-R9100 11s
Crank
Shimano Dura Ace Di2 FD-R9100 11s
Bottom Bracket
shimano dura ace
Chain
Shimano Dura Ace CN-HG901 11s
Brakes
Brakes
Rim
Cockpit
Handlebar
most bar tape
Seat
Seatpost
Pinarello Aero Seatpost
Fit data

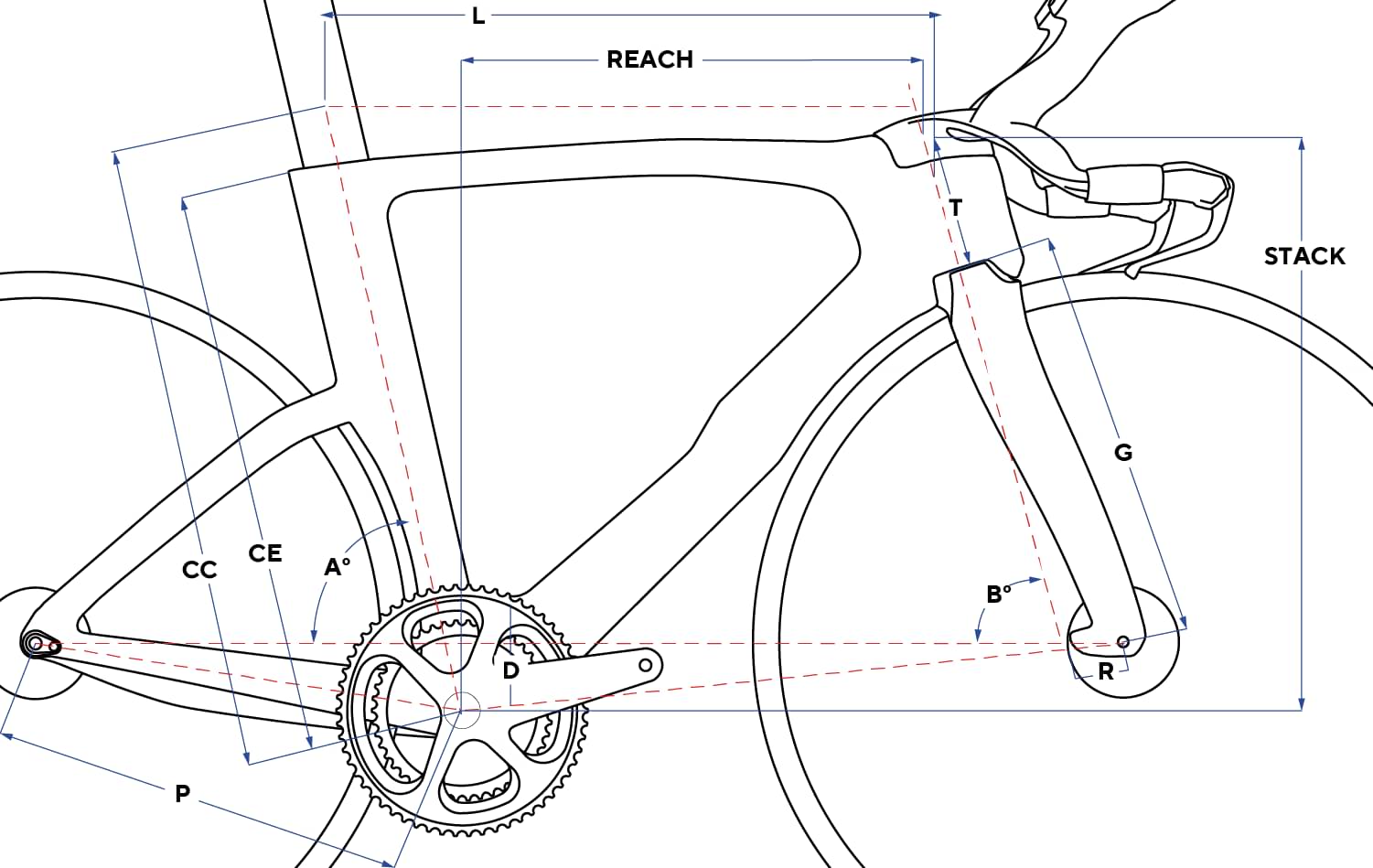

Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 48.5cm | 52cm | 55cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.21 mm | 1.21 mm | 1.19 mm | 1.18 mm |
| Bottom Bracket Height | 279 mm | 274 mm | 274 mm | 274 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm |
| Stack | 465 mm | 483 mm | 498 mm | 511 mm |
| Reach | 384 mm | 400 mm | 417 mm | 434 mm |
| Top Tube Length | 492 mm | 511 mm | 530 mm | 549 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 472 mm | 492 mm | 508 mm | 521 mm |
| Head Tube Angle | 72 ° | 72.5 ° | 73 ° | 73 ° |
| Head Tube Length | 70 mm | 82 mm | 96 mm | 110 mm |
| Chainstay Length | 399 mm | 399 mm | 399 mm | 399 mm |
| Bottom Bracket Drop | 57 mm | 62 mm | 62 mm | 62 mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model
Bolide F belongs to the Pinarello Bolide model. There are 39 bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Triathlon bikes
Our math shows that the average cost of a dependable Triathlon bike is 4177$. However, even if your budget is less than the average, you might still be able to get a top-quality Triathlon bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
Bolide F has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When it comes to wheels, the Bolide F bike is equipped with the 700c model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Bolide F comes with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
