Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Custom 3D Printed Scalmalloy
Suspension Fork
Bolide HR Custom Fork
Fit data

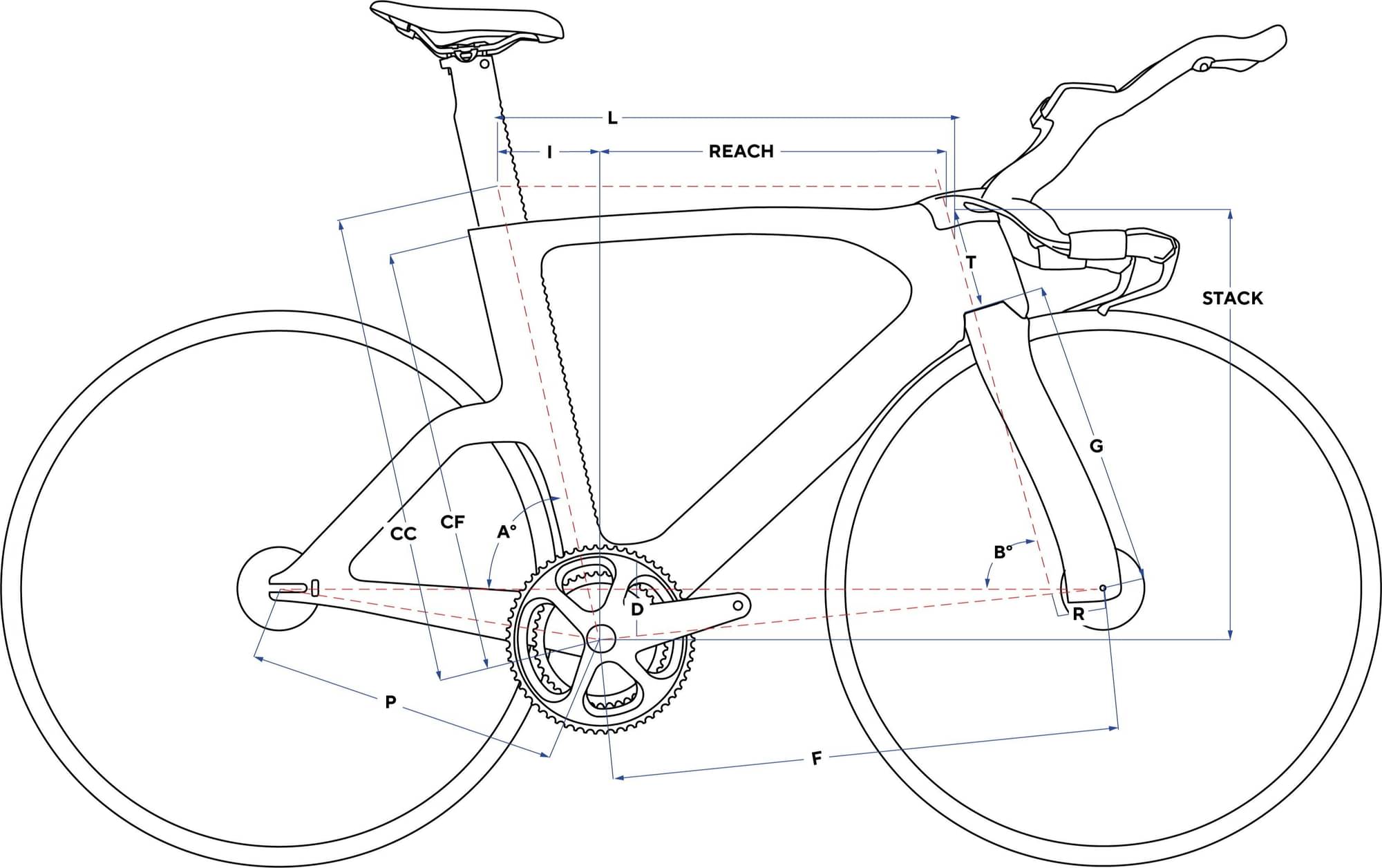

Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 52.5cm | 55cm |
|---|---|---|---|
| Stack Reach Ratio | 1.24 mm | 1.22 mm | 1.18 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm |
| Rake | 43 mm | 43 mm | 43 mm |
| Stack | 468 mm | 491 mm | 507 mm |
| Reach | 376 mm | 401 mm | 429 mm |
| Top Tube Length | 485 mm | 511 mm | 541 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 450 mm | 525 mm | 550 mm |
| Head Tube Angle | 72 ° | 73 ° | 73 ° |
| Head Tube Length | 70 mm | 90 mm | 106 mm |
| Chainstay Length | 389 mm | 389 mm | 389 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm |
| Wheels | 700 | 700 | 700 |
About this model

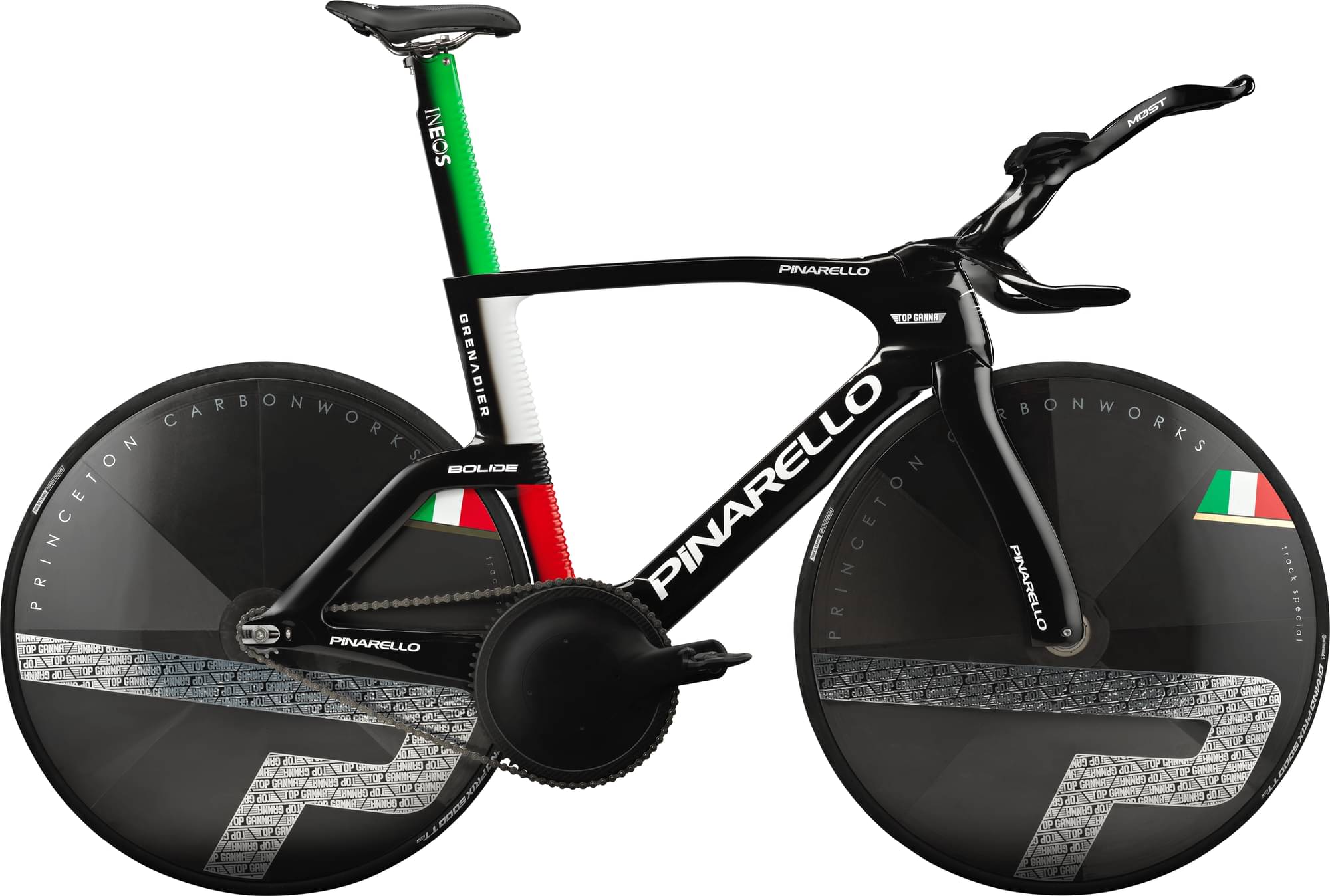

Bolide F HR 3D completes the Pinarello Bolide model. There are 39 bikes that carry this model name. You can get a glimpse at all models from 2022, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Triathlon bikes
Our math shows that the average cost of a dependable Triathlon bike is 4177$. However, even if your budget is less than the average, you might still be able to get a top-quality Triathlon bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When leaving the production line, the Bolide F HR 3D model has 700c wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
