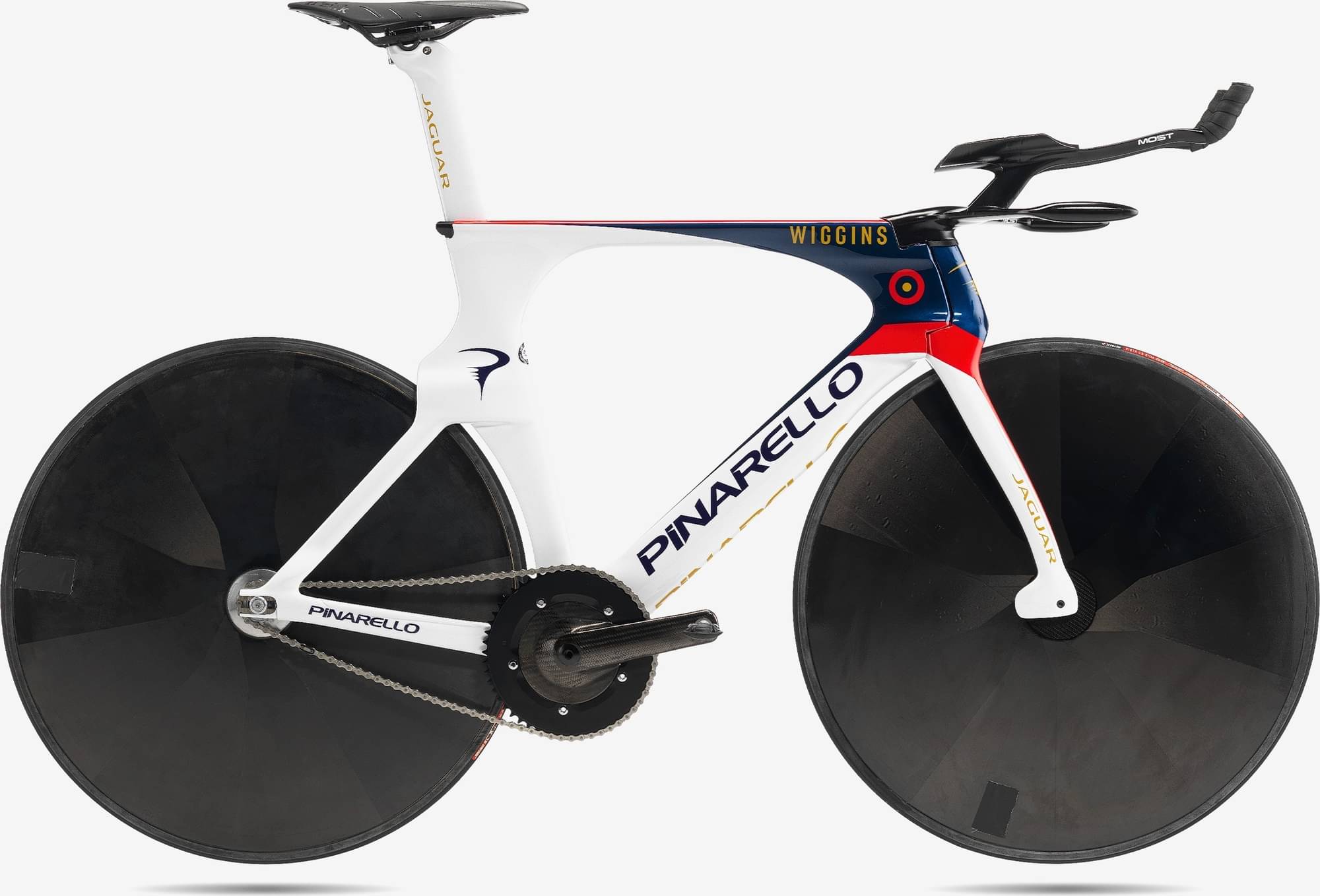

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TorayCa T1100 1K Dream Carbon with Nanoalloy Technology, Italian BB, UCI Approved
Suspension Fork
Bolide HR Onda Fork with tapered head tube
Drivetrain
Cassette
singlespeed freehub
Crank
carbon custom
Bottom Bracket
custom italian
Chain
singlespeed chain
Brakes
Brakes
Rim
Cockpit
Handlebar
most bar tape
Seat
Seatpost
Pinarello Aero Seatpost
Fit data

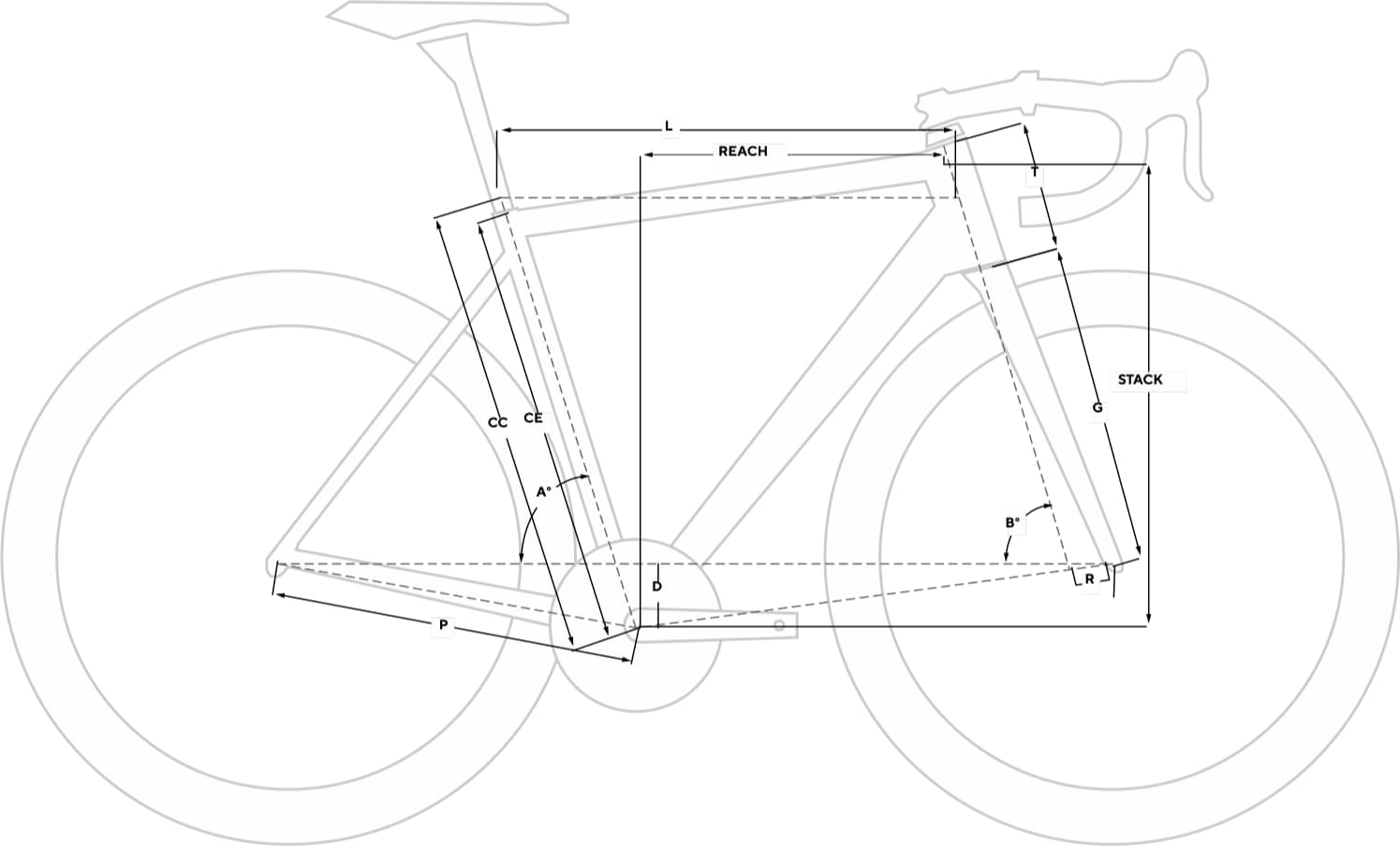

Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 52.5cm | 55cm |
|---|---|---|---|
| Stack Reach Ratio | 1.25 mm | 1.23 mm | 1.18 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm |
| Rake | 43 mm | 43 mm | 43 mm |
| Stack | 464 mm | 487 mm | 503 mm |
| Reach | 372 mm | 397 mm | 425 mm |
| Top Tube Length | 483 mm | 509 mm | 540 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 514 mm | 539 mm | 554 mm |
| Head Tube Angle | 72 ° | 73 ° | 73 ° |
| Head Tube Length | 74 mm | 94 mm | 110 mm |
| Chainstay Length | 380 mm | 380 mm | 380 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm |
| Wheels | 700 | 700 | 700 |
About this model
Bolide HR completes the Pinarello Bolide model. There are 39 bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Triathlon bikes average price
Our math shows that the average cost of a dependable Triathlon bike is 4177$. However, even though the average price of a Triathlon bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Bolide HR components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
As for the wheels, Pinarello Bolide HR 2023, has a 700c model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Bolide HR has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
