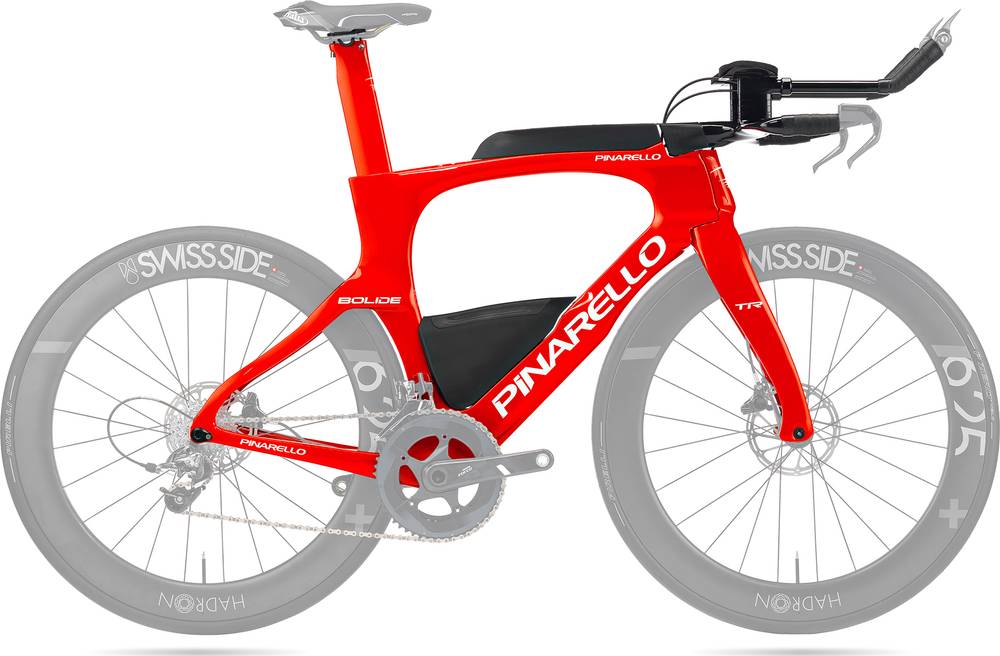

Pinarello Bolide TR Frameset 2020
2020 Road
Estimate price |
5,500$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Torayca T700 UD Carbon, 12x142mm Thru-Axle
Suspension Fork
Bolide TR Torayca T700 Carbon, 100x12mm Thru-Axle
Drivetrain
Bottom Bracket
Italian Threaded Required
Cockpit
Stem
Bolide TR Carbon
Headset
Drop-In Bearing, 1 1/8" - 1 1/2"
Seat
Seatpost
Bolide TR Aero Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 48.5cm | 52cm | 55cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.33 mm | 1.34 mm | 1.31 mm | 1.28 mm |
| Stack | 491 mm | 514 mm | 529 mm | 542 mm |
| Reach | 368 mm | 385 mm | 404 mm | 423 mm |
| Top Tube Length | 479 mm | 499 mm | 519 mm | 539 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 450 mm | 485 mm | 520 mm | 550 mm |
| Head Tube Angle | 72 ° | 72 ° | 73 ° | 73 ° |
| Head Tube Length | 90 mm | 106 mm | 120 mm | 134 mm |
| Chainstay Length | 394 mm | 394 mm | 394 mm | 394 mm |
| Wheels | 700 | 700 | 700 | 700 |
Model Overview
Bolide TR Frameset completes the Pinarello Bolide model. Pinarello launched 39 frames of this model so far. You can easily view all of the Pinarello Bolide frames models from 2020, here.
Model range prices
The most economical model, the Pinarello Bolide TR Frameset 2020 has a starting price of 5500$. Pinarello Bolide TT Frameset 2020 on the other hand is the most expensive at 14500$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Triathlon frames
According to our math, the average price for a trustworthy Triathlon frame is 3089$. However, you could also get a good Triathlon frame even if you pay a lower amount than the average price. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5500$. Comparing the average cost of a Triathlon frame to this one, you will see that Bolide TR Frameset price is 78.05% higher.
Bolide TR Frameset components
Fork material
When it comes to the fork, this frame has a carbon one, so, it’s a great addition to the frame’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
