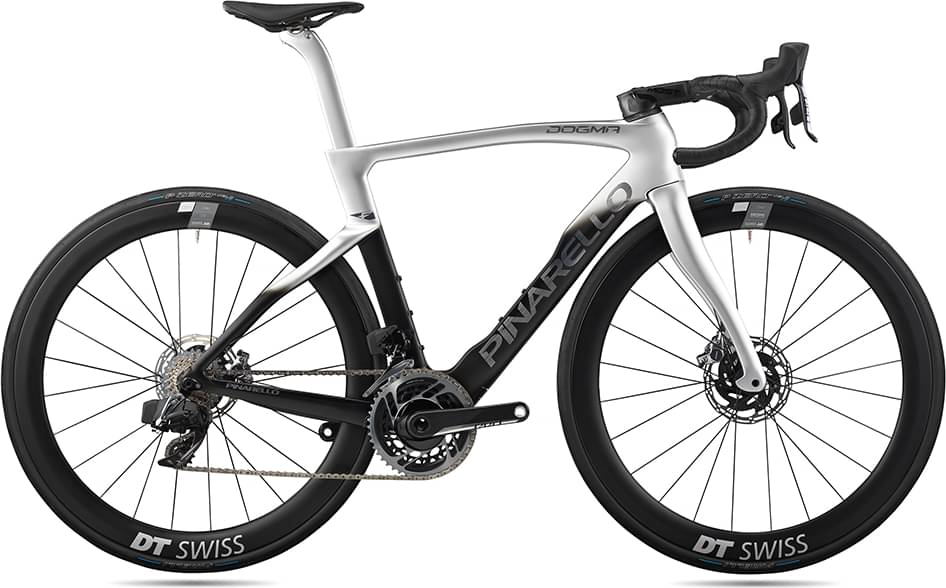

Pinarello Dogma F Disc Red AXS Bike w/DT Swiss ARC 1400 50 Wheels 2021
2021 Road
Estimate price |
14,500$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED eTap -
Suspension Rigid -
Drivetrain Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Toraya T1100 1K Dream Carbon with Nanoalloy Technology
Suspension Fork
Pinarello Onda Dogma F with ForkFlap
Drivetrain
Rear Derailleur
SRAM Red eTap AXS
Front Derailleur
SRAM Red eTap AXS
Shift Levers
SRAM Red eTap AXS
Cassette
SRAM Red XG-1290
Crank
SRAM Red AXS
Bottom Bracket
SRAM DUB
Chain
SRAM Red 12-speed
Pedals
Not Included
Wheels
Rims
DT Swiss ARC 1400 50
Tires
Pirelli Pzero Race 700x26
Brakes
Brakes
SRAM Red AXS
Disk Rotors
SRAM 160mm
Cockpit
Stem
MOST Talon Ultra Light Integrated Bar/Stem
Handlebar
MOST Talon Ultra Light Integrated Bar/Stem
Headset
Drop-in-Bearing System, 1.5"
Seat
Saddle
MOST Linx ULTRAFAST SUPERFLOW L Carbon Large 145mm
Seatpost
Pinarello Dogma F Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 43cm | 46.5cm | 50cm | 51.5cm | 53cm | 54cm | 55cm | 56cm | 57.5cm | 59.5cm | 62cm |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.43 mm | 1.42 mm | 1.42 mm | 1.43 mm | 1.44 mm | 1.45 mm | 1.47 mm | 1.49 mm | 1.57 mm | 1.6 mm |
| Stack | 493.4 mm | 508.6 mm | 516.4 mm | 523.3 mm | 533.6 mm | 542.2 mm | 552.6 mm | 561.2 mm | 575.8 mm | 604.3 mm | 642.7 mm |
| Reach | 342.4 mm | 355.8 mm | 363.1 mm | 369 mm | 374.3 mm | 376 mm | 379.8 mm | 381.7 mm | 387.7 mm | 384.3 mm | 401.1 mm |
| Top Tube Length | 491 mm | 506 mm | 516 mm | 526 mm | 536 mm | 541 mm | 548 mm | 556 mm | 566 mm | 578 mm | 611 mm |
| Seat Tube Angle | 74.4 ° | 74.4 ° | 74 ° | 73.7 ° | 73.7 ° | 73.4 ° | 73.4 ° | 73 ° | 73 ° | 72.4 ° | 72 ° |
| Seat Tube Length | 425 mm | 450 mm | 465 mm | 485 mm | 500 mm | 510 mm | 520 mm | 525 mm | 540 mm | 560 mm | 600 mm |
| Head Tube Angle | 69.5 ° | 70.5 ° | 71.4 ° | 72 ° | 72.5 ° | 72.8 ° | 72.8 ° | 73.2 ° | 73.7 ° | 73.4 ° | 73.4 ° |
| Head Tube Length | 97 mm | 104 mm | 109 mm | 114 mm | 123 mm | 131 mm | 142 mm | 149.5 mm | 163 mm | 199 mm | 239 mm |
| Chainstay Length | 397 mm | 397 mm | 397 mm | 397 mm | 397 mm | 399 mm | 399 mm | 399 mm | 399 mm | 399 mm | 402 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
Dogma F Disc Red AXS Bike w/DT Swiss ARC 1400 50 Wheels is part of the Pinarello Dogma model. 171 bikes variations carry this model name so far. Take a sneak peek at all Pinarello Dogma bikes models from 2021, by clicking here.
Model range prices
Pinarello Dogma F12 Disk Ultegra DEMO Bike 2021 is the most affordable bike of this model and has a price of 9000$. On the other hand, Pinarello Dogma F Disc Corsa Pro Bike 2021, is the most expensive and costs 17250$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Race bikes
Our math shows that the average cost of a dependable Race bike is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 14500$. If we compare this with the average Race bike cost we notice that the price is 332.84% higher.
Dogma F Disc Red AXS Bike w/DT Swiss ARC 1400 50 Wheels components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When it comes to wheels, the Dogma F Disc Red AXS Bike w/DT Swiss ARC 1400 50 Wheels bike is equipped with the 700c carbon model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Dogma F Disc Red AXS Bike w/DT Swiss ARC 1400 50 Wheels has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
