Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TorayCa T1100 1K Dream Carbon with Nanoalloy technology, TiCR™ cable routing, Italian BB, UCI approved
Suspension Fork
F Onda Fork with ForkFlap™, 1.5' upper and lower steerer, Ultra Light Headset bearings
Drivetrain
Rear Derailleur
Shimano Dura Ace Di2 RD-R9200 12s
Front Derailleur
Shimano Dura Ace Di2 FD-9200 11S
Cassette
Shimano Dura Ace CS-R9200 12S
Crank
Shimano Dura Ace FC-R9200, HollowTech 2, 12s
Bottom Bracket
Shimano Dura Ace SM-BB9200
Chain
Shimano Dura Ace CN-HG 12S
Wheels
Rims
Shimano Dura Ace C50
Tires
Pirelli P Zero Race 26mm - Black, 127 tpi aramid breaker. Max tyre size 28mm (width as measured)
Brakes
Brakes
Front: Dura Ace BR-R9200, 2 pistons caliper, 160mm rotor, Rear: Dura Ace BR-R9200, 2 pistons caliper, 160mm rotor
Cockpit
Handlebar
most bar tape
Seat
Saddle
Most Lynx Ultrafast Superflow L Carbon Large 145mm
Seatpost
Pinarello Aero seatpost with 3D printed titanium top seatclamp and bolts
Fit data

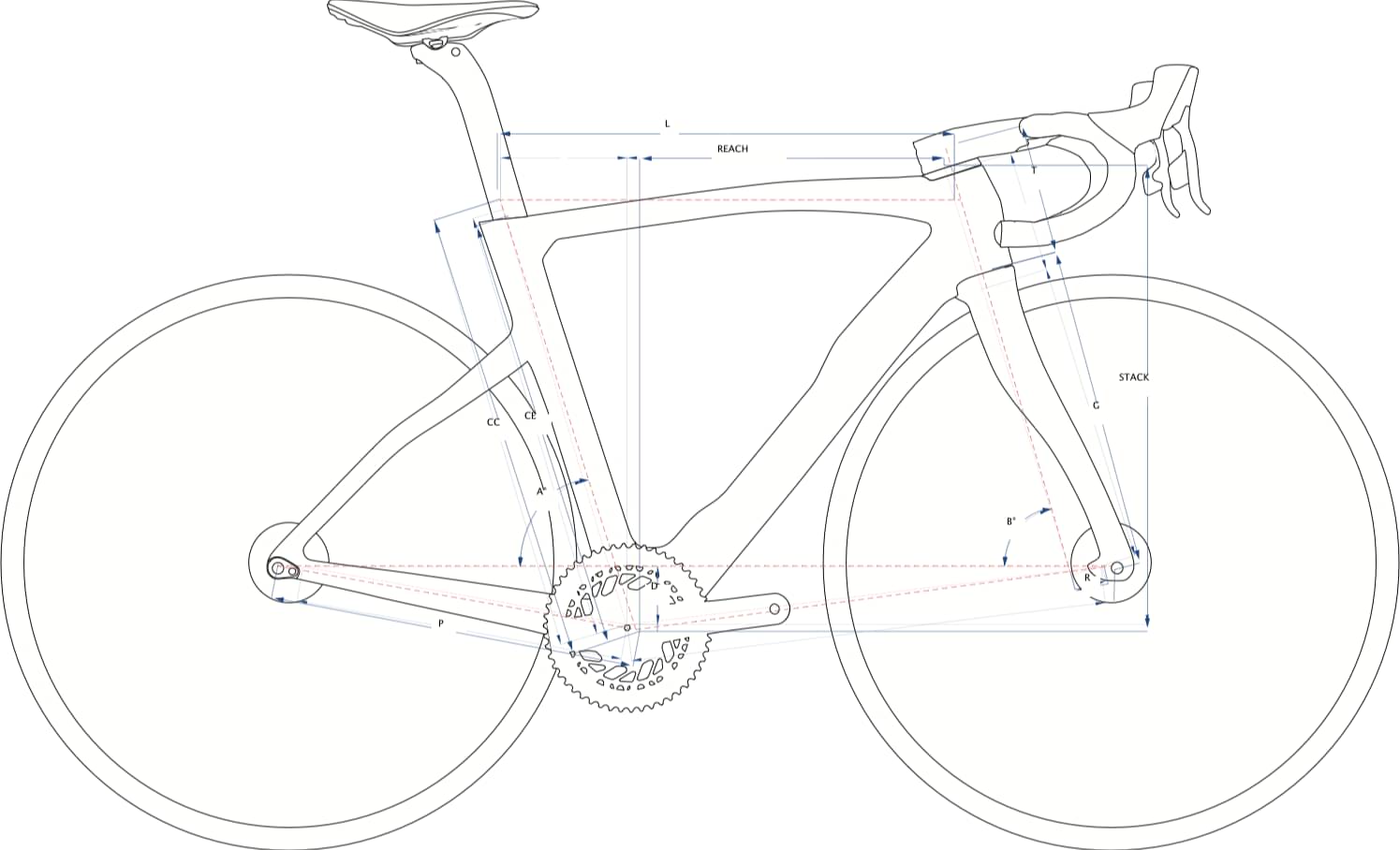

Geometry
Numbers for sizing and ride feel.
| Size | 43cm | 46.5cm | 50cm | 51.5cm | 53cm | 54cm | 55cm | 56cm | 57.5cm | 59.5cm | 62cm |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.43 mm | 1.42 mm | 1.42 mm | 1.43 mm | 1.44 mm | 1.45 mm | 1.47 mm | 1.49 mm | 1.57 mm | 1.6 mm |
| Bottom Bracket Height | 269 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 269 mm | 269 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Stack | 493.4 mm | 508.6 mm | 516.4 mm | 523.3 mm | 533.6 mm | 542.2 mm | 552.6 mm | 561.2 mm | 575.8 mm | 604.3 mm | 642.7 mm |
| Reach | 342.4 mm | 355.8 mm | 363.1 mm | 369 mm | 374.3 mm | 376 mm | 379.8 mm | 381.7 mm | 387.7 mm | 384.3 mm | 401.1 mm |
| Top Tube Length | 491 mm | 506 mm | 516 mm | 526 mm | 536 mm | 541 mm | 548 mm | 556 mm | 566 mm | 578 mm | 611 mm |
| Seat Tube Angle | 74.4 ° | 74.4 ° | 74 ° | 73.7 ° | 73.7 ° | 73.4 ° | 73.4 ° | 73 ° | 73 ° | 72.4 ° | 72 ° |
| Seat Tube Length | 425 mm | 450 mm | 465 mm | 485 mm | 500 mm | 510 mm | 520 mm | 525 mm | 540 mm | 560 mm | 600 mm |
| Head Tube Angle | 69.5 ° | 70.5 ° | 71.4 ° | 72 ° | 72.5 ° | 72.8 ° | 72.8 ° | 73.2 ° | 73.7 ° | 73.4 ° | 73.4 ° |
| Head Tube Length | 97 mm | 104 mm | 109 mm | 114 mm | 123 mm | 131 mm | 142 mm | 149.5 mm | 163 mm | 199 mm | 239 mm |
| Chainstay Length | 397 mm | 397 mm | 397 mm | 397 mm | 397 mm | 399 mm | 399 mm | 399 mm | 399 mm | 399 mm | 402 mm |
| Bottom Bracket Drop | 67 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 67 mm | 67 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

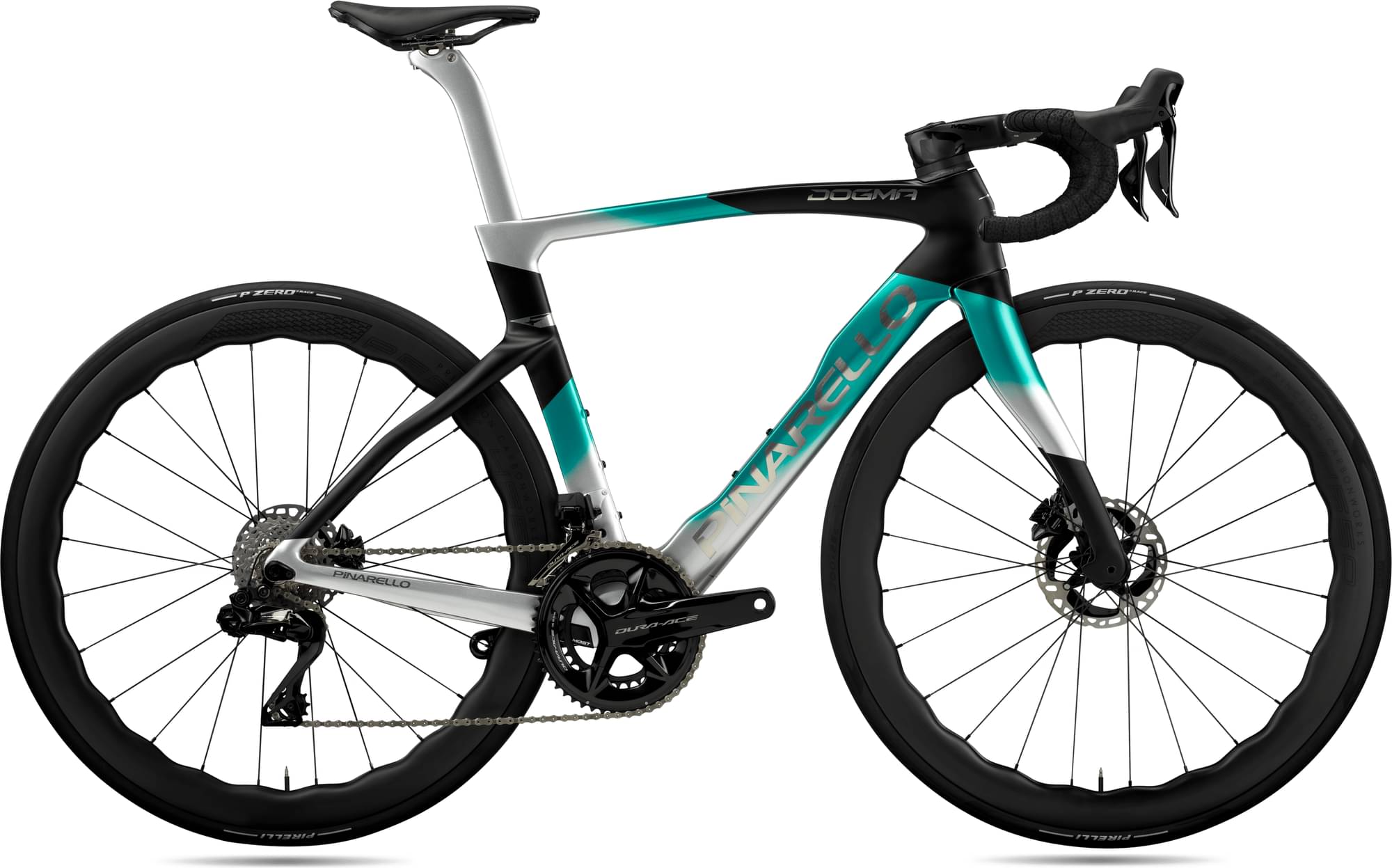

DOGMA F DURA ACE Di2 Disc is a Pinarello Dogma model. 171 bikes variations carry this model name so far. You can easily view all of the Pinarello Dogma bikes models from 2023, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Race bikes
If you want to purchase a solid Race bike, it is important to know that the average cost is 3350$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
DOGMA F DURA ACE Di2 Disc components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When it comes to wheels, the DOGMA F DURA ACE Di2 Disc bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Pinarello DOGMA F DURA ACE Di2 Disc has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
