Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain Electronic -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TorayCa T1100 1K Dream Carbon with Nanoalloy technology, TiCR™ cable routing, Italian BB, UCI approved
Suspension Fork
F Onda Fork with ForkFlap™, 1.5' upper and lower steerer, Ultra Light Headset bearings
Drivetrain
Rear Derailleur
Shimano Dura Ace Di2 RD-R9200 12s
Front Derailleur
Shimano Dura Ace Di2 FD-9200 11S
Cassette
Shimano Dura Ace CS-R9200 12S
Bottom Bracket
Shimano Dura Ace SM-BB9200
Chain
Shimano Dura Ace CN-HG 12S
Wheels
Rims
Shimano Dura Ace C50
Tires
Pirelli P Zero Race 26mm - Black, 127tpi aramid breaker. Max tyre size 28mm (width as measured)
Brakes
Brakes
Shimano Dura Ace R9100 Direct Mount Caliper
Cockpit
Handlebar
most bar tape
Seat
Saddle
Most Lynx Ultrafast Superflow L Carbon Large 145mm
Seatpost
Pinarello Aero seatpost with 3D printed titanium top seatclamp and bolts
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 43cm | 46.5cm | 50cm | 51.5cm | 53cm | 54cm | 55cm | 56cm | 57.5cm | 59.5cm | 62cm |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.43 mm | 1.42 mm | 1.42 mm | 1.43 mm | 1.44 mm | 1.45 mm | 1.47 mm | 1.49 mm | 1.57 mm | 1.6 mm |
| Bottom Bracket Height | 269 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 269 mm | 269 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Stack | 493.4 mm | 508.6 mm | 516.4 mm | 523.3 mm | 533.6 mm | 542.2 mm | 552.6 mm | 561.2 mm | 575.8 mm | 604.3 mm | 642.7 mm |
| Reach | 342.4 mm | 355.8 mm | 363.1 mm | 369 mm | 374.3 mm | 376 mm | 379.8 mm | 381.7 mm | 387.7 mm | 384.3 mm | 401.1 mm |
| Top Tube Length | 491 mm | 506 mm | 516 mm | 526 mm | 536 mm | 541 mm | 548 mm | 556 mm | 566 mm | 578 mm | 611 mm |
| Seat Tube Angle | 74.4 ° | 74.4 ° | 74 ° | 73.7 ° | 73.7 ° | 73.4 ° | 73.4 ° | 73 ° | 73 ° | 72.4 ° | 72 ° |
| Seat Tube Length | 425 mm | 450 mm | 465 mm | 485 mm | 500 mm | 510 mm | 520 mm | 525 mm | 540 mm | 560 mm | 600 mm |
| Head Tube Angle | 69.5 ° | 70.5 ° | 71.4 ° | 72 ° | 72.5 ° | 72.8 ° | 72.8 ° | 73.2 ° | 73.7 ° | 73.4 ° | 73.4 ° |
| Head Tube Length | 97 mm | 104 mm | 109 mm | 114 mm | 123 mm | 131 mm | 142 mm | 149.5 mm | 163 mm | 199 mm | 239 mm |
| Chainstay Length | 397 mm | 397 mm | 397 mm | 397 mm | 397 mm | 399 mm | 399 mm | 399 mm | 399 mm | 399 mm | 402 mm |
| Bottom Bracket Drop | 67 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 67 mm | 67 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

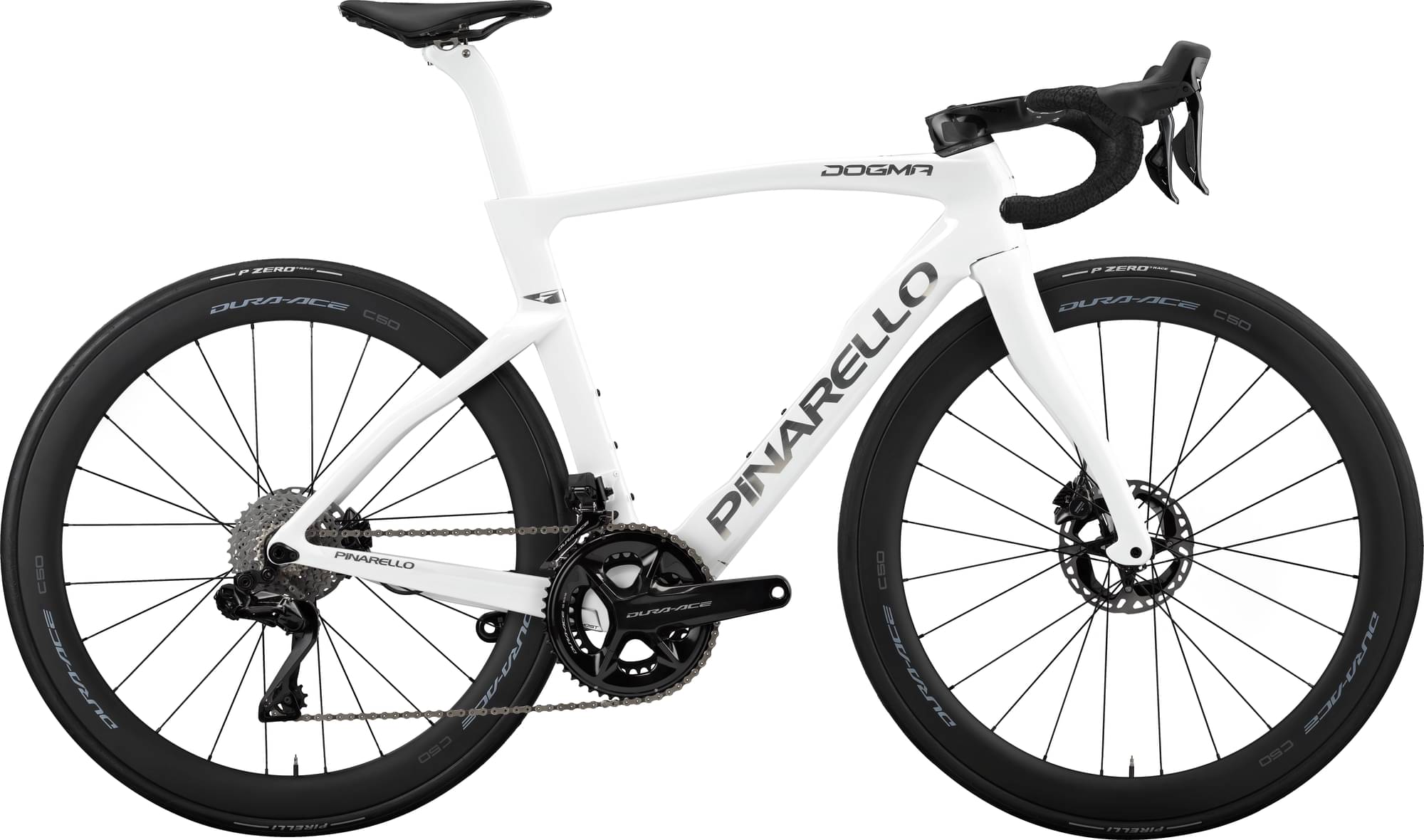

DOGMA F DURA ACE Di2 Rim is part of the Pinarello Dogma model. 171 bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Race bikes average price
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, you could also get a good Race bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
DOGMA F DURA ACE Di2 Rim components
Fork material
DOGMA F DURA ACE Di2 Rim has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When it comes to wheels, the DOGMA F DURA ACE Di2 Rim bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Pinarello DOGMA F DURA ACE Di2 Rim has Rim brakes installed. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
