Bike details
Overview
Key information split into simple groups.

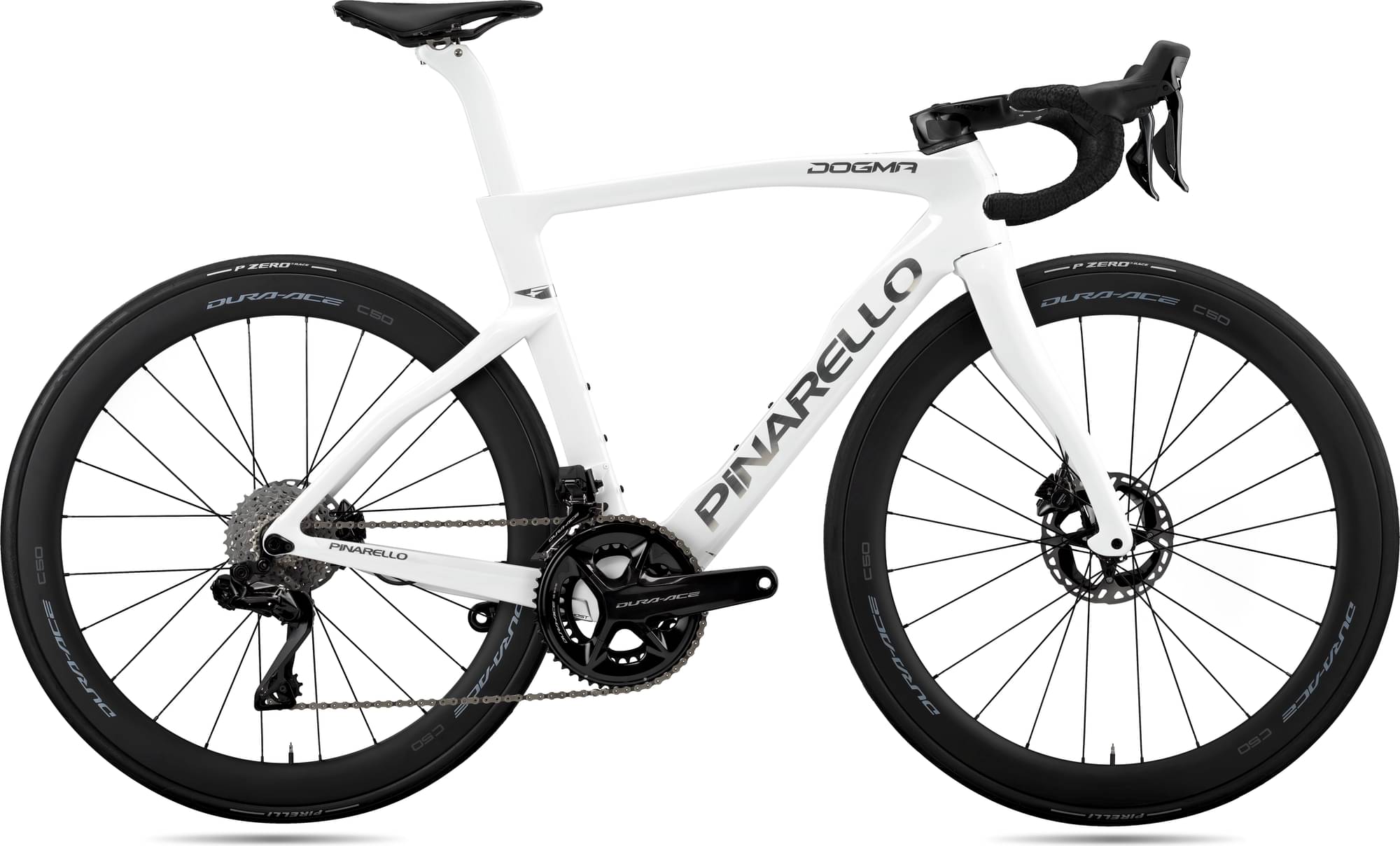

Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TorayCa T1100 1K Dream Carbon with Nanoalloy technology, TiCR™ cable routing, Italian BB, UCI approved
Suspension Fork
F Onda Fork with ForkFlap™, 1.5' upper and lower steerer, Ultra Light Headset bearings
Drivetrain
Rear Derailleur
Shimano Dura Ace Di2 RD-R9200 12s
Front Derailleur
Shimano Dura Ace Di2 FD-9200 11S
Cassette
Shimano Dura Ace CS-R9200 12S
Crank
Shimano Dura Ace FC-R9200, HollowTech 2, 12s
Bottom Bracket
Shimano Dura Ace SM-BB9200
Chain
Shimano Dura Ace CN-HG 12S
Wheels
Rims
Shimano Dura Ace C50
Tires
Pirelli P Zero Race 26mm - Black, 127tpi aramid breaker. Max tyre size 28mm (width as measured)
Brakes
Brakes
Front: Shimano Dura Ace R9100 Direct Mount Caliper, Rear: Shimano Dura Ace R9100 Direct Mount Caliper
Cockpit
Handlebar
most bar tape
Seat
Saddle
Most Lynx Ultrafast Superflow L Carbon Large 145mm
Seatpost
Pinarello Aero seatpost with 3D printed titanium top seatclamp and bolts
Fit data

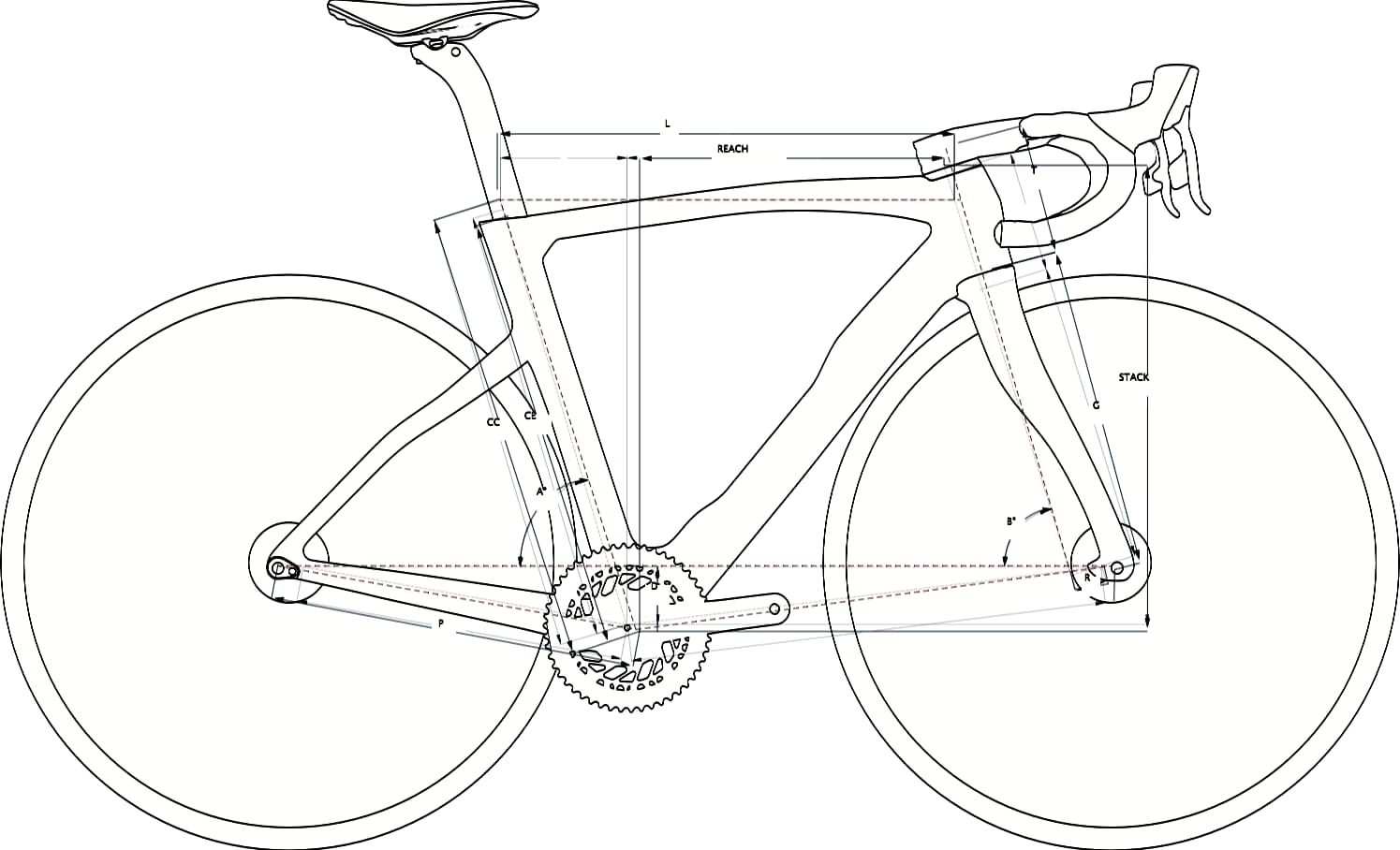

Geometry
Numbers for sizing and ride feel.
| Size | 43cm | 46.5cm | 50cm | 51.5cm | 53cm | 54cm | 55cm | 56cm | 57.5cm | 59.5cm | 62cm |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.43 mm | 1.42 mm | 1.42 mm | 1.43 mm | 1.44 mm | 1.45 mm | 1.47 mm | 1.49 mm | 1.57 mm | 1.6 mm |
| Bottom Bracket Height | 269 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 269 mm | 269 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Stack | 493.4 mm | 508.6 mm | 516.4 mm | 523.3 mm | 533.6 mm | 542.2 mm | 552.6 mm | 561.2 mm | 575.8 mm | 604.3 mm | 642.7 mm |
| Reach | 342.4 mm | 355.8 mm | 363.1 mm | 369 mm | 374.3 mm | 376 mm | 379.8 mm | 381.7 mm | 387.7 mm | 384.3 mm | 401.1 mm |
| Top Tube Length | 491 mm | 506 mm | 516 mm | 526 mm | 536 mm | 541 mm | 548 mm | 556 mm | 566 mm | 578 mm | 611 mm |
| Seat Tube Angle | 74.4 ° | 74.4 ° | 74 ° | 73.7 ° | 73.7 ° | 73.4 ° | 73.4 ° | 73 ° | 73 ° | 72.4 ° | 72 ° |
| Seat Tube Length | 425 mm | 450 mm | 465 mm | 485 mm | 500 mm | 510 mm | 520 mm | 525 mm | 540 mm | 560 mm | 600 mm |
| Head Tube Angle | 69.5 ° | 70.5 ° | 71.4 ° | 72 ° | 72.5 ° | 72.8 ° | 72.8 ° | 73.2 ° | 73.7 ° | 73.4 ° | 73.4 ° |
| Head Tube Length | 97 mm | 104 mm | 109 mm | 114 mm | 123 mm | 131 mm | 142 mm | 149.5 mm | 163 mm | 199 mm | 239 mm |
| Chainstay Length | 397 mm | 397 mm | 397 mm | 397 mm | 397 mm | 399 mm | 399 mm | 399 mm | 399 mm | 399 mm | 402 mm |
| Bottom Bracket Drop | 67 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 67 mm | 67 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
Dogma F Rim completes the Pinarello Dogma model. Pinarello released 174 bikes variations of this model so far. Take a sneak peek at all Pinarello Dogma bikes models from 2023, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Race bikes average price
If you want an acceptable Race bike you should know that the average price is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Dogma F Rim components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When leaving the production line, the Dogma F Rim model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Dogma F Rim has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
