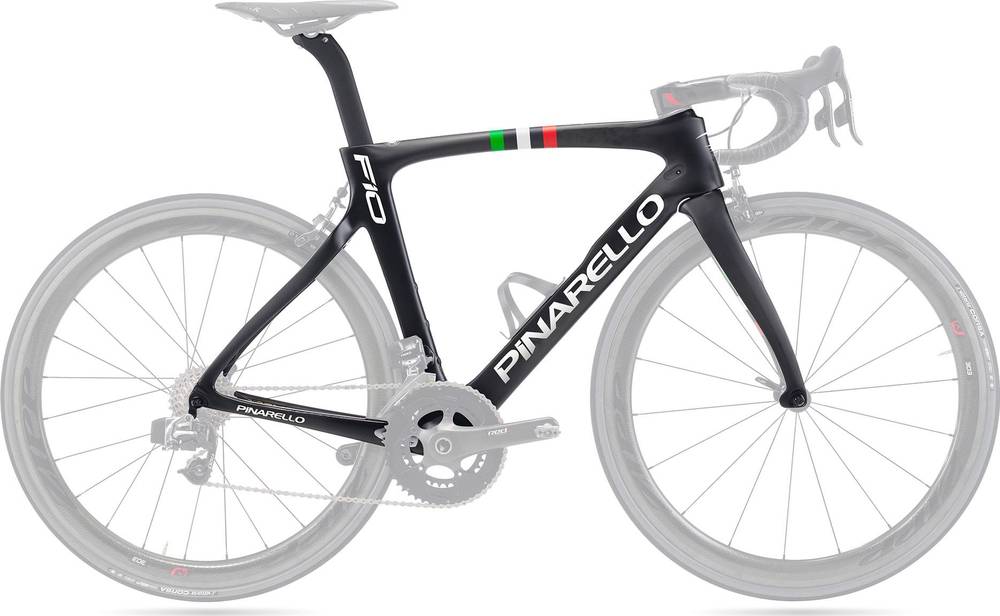

Pinarello Dogma F10 Disk Frameset 2019
2019 Road
Estimate price |
4,999$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Torayca T1100 UD Dream Carbon, 142x12 Thru-Axle
Suspension Fork
Onda F10 T1100 Carbon, 1 1/8"-1 1/2", 100x12 Thru-Axle
Drivetrain
Bottom Bracket
Italian Threaded, 70mm
Cockpit
Headset
Integrated, 1 1/8"-1 1/2"
Seat
Seatpost
Air 8 Aero Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 46.5cm | 50cm | 51.5cm | 53cm | 54cm | 55cm | 56cm | 57.5cm | 59.5cm | 62cm |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.39 mm | 1.38 mm | 1.38 mm | 1.4 mm | 1.42 mm | 1.44 mm | 1.45 mm | 1.46 mm | 1.55 mm | 1.58 mm |
| Stack | 507 mm | 518 mm | 526 mm | 533 mm | 548 mm | 556 mm | 567 mm | 575 mm | 590 mm | 618 mm | 657 mm |
| Reach | 363 mm | 373 mm | 380 mm | 386 mm | 392 mm | 392 mm | 395 mm | 397 mm | 403 mm | 400 mm | 416 mm |
| Top Tube Length | 509 mm | 521 mm | 531 mm | 541 mm | 551 mm | 556 mm | 563 mm | 571 mm | 581 mm | 593 mm | 626 mm |
| Seat Tube Angle | 74.4 ° | 74.4 ° | 74 ° | 73.7 ° | 73.7 ° | 73.4 ° | 73.4 ° | 73 ° | 73 ° | 72.4 ° | 72 ° |
| Seat Tube Length | 440 mm | 465 mm | 500 mm | 515 mm | 530 mm | 540 mm | 550 mm | 560 mm | 575 mm | 595 mm | 620 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71.4 ° | 72 ° | 72.5 ° | 72.8 ° | 72.8 ° | 73.2 ° | 73.7 ° | 73.4 ° | 73.4 ° |
| Head Tube Length | 110 mm | 115 mm | 120 mm | 125 mm | 139 mm | 147 mm | 158 mm | 165 mm | 179 mm | 215 mm | 255 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm | 414 mm | 414 mm | 414 mm | 414 mm | 417 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
Dogma F10 Disk Frameset completes the Pinarello Dogma model. Pinarello launched 171 frames of this model so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
Pinarello Dogma F10 Disk Frameset 2019 is the cheapest frame model and costs 4999$. Pinarello Dogma FS Frameset 2019 is the most expensive one and costs 10000$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Race frames average price
If you want to purchase a solid Race frame, it is important to know that the average cost is 2445$. However, you could also get a good Race frame even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4999$. Doing a quick comparison, we notice that Dogma F10 Disk Frameset price is 104.46% more expensive than the average cost of a Race frame.
Overview of components
Fork material
When it comes to the fork, this frame has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
