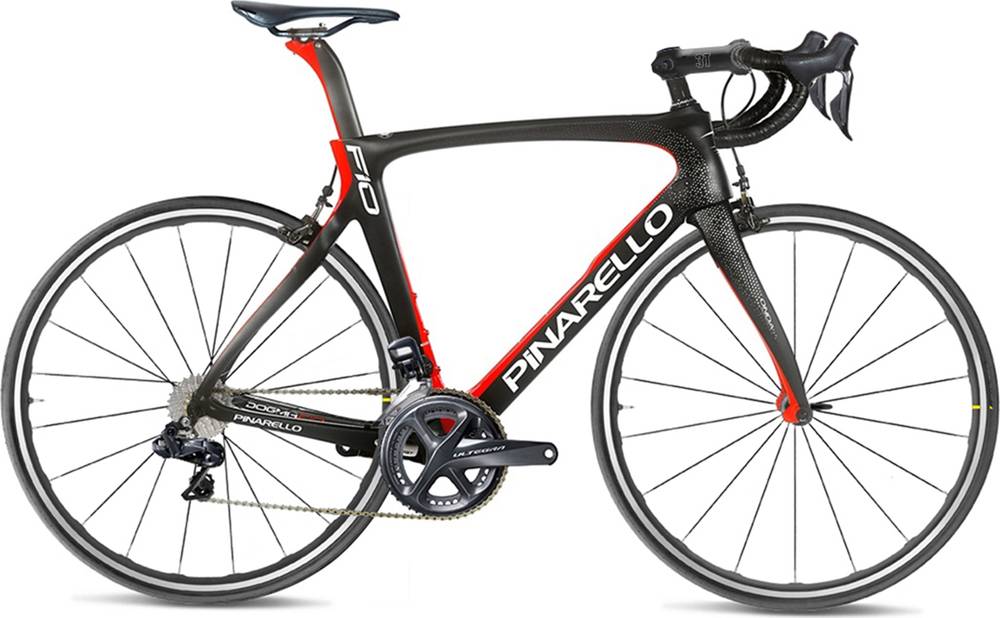

Pinarello Dogma F10 Rim Ultegra Di2 Bike 2019
2019 Road
Estimate price |
6,600$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Torayca T1100 UD Dream Carbon
Suspension Fork
Onda F10 T1100 Carbon, 1 1/8"-1 1/2"
Drivetrain
Rear Derailleur
Shimano Ultegra Di2 8050
Front Derailleur
Shimano Ultegra Di2 8050
Shift Levers
Shimano Ultegra Di2 8070
Cassette
Shimano Ultegra 8000
Crank
Shimano Ultegra 8000
Bottom Bracket
Shimano Dura-Ace 9100, ITA
Chain
Shimano HG701
Pedals
Not Included
Wheels
Rims
Mavic Ksyrium UST
Tires
Mavic
Brakes
Brakes
Shimano Ultegra 8070
Disk Rotors
Shimano RT800
Cockpit
Stem
3T ARX II Team Stealth
Handlebar
3T Tornova Team Stealth
Headset
Integrated, 1 1/8"-1 1/2"
Seat
Saddle
PRO Griffon Carbon AF
Seatpost
Air 8 Aero Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 42cm | 42.5cm | 44cm | 46.5cm | 47cm | 50cm | 51.5cm | 52cm | 53cm | 54cm | 55cm | 56cm | 57.5cm | 58cm | 59.5cm | 62cm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.4 mm | 1.4 mm | 1.39 mm | 1.39 mm | 1.39 mm | 1.38 mm | 1.38 mm | 1.4 mm | 1.42 mm | 1.44 mm | 1.45 mm | 1.47 mm | 1.47 mm | 1.55 mm | 1.58 mm |
| Stack | 496 mm | 496 mm | 504 mm | 515 mm | 515 mm | 523 mm | 530 mm | 530 mm | 545 mm | 553 mm | 564 mm | 572 mm | 587 mm | 587 mm | 615 mm | 654 mm |
| Reach | 354 mm | 354 mm | 360 mm | 370 mm | 370 mm | 377 mm | 383 mm | 383 mm | 389 mm | 389 mm | 392 mm | 394 mm | 400 mm | 400 mm | 397 mm | 413 mm |
| Top Tube Length | 501 mm | 501 mm | 506 mm | 518 mm | 518 mm | 528 mm | 538 mm | 538 mm | 548 mm | 553 mm | 560 mm | 568 mm | 578 mm | 578 mm | 590 mm | 623 mm |
| Seat Tube Angle | 74.4 ° | 74.4 ° | 74.4 ° | 74.4 ° | 74.4 ° | 74 ° | 73.7 ° | 73.7 ° | 73.7 ° | 73.4 ° | 73.4 ° | 73 ° | 73 ° | 73 ° | 72.4 ° | 72 ° |
| Seat Tube Length | 420 mm | 420 mm | 440 mm | 465 mm | 465 mm | 500 mm | 515 mm | 515 mm | 530 mm | 540 mm | 550 mm | 560 mm | 575 mm | 575 mm | 595 mm | 620 mm |
| Head Tube Angle | 69.2 ° | 69.2 ° | 70 ° | 70.5 ° | 70.5 ° | 71.4 ° | 72 ° | 72 ° | 72.5 ° | 72.8 ° | 72.8 ° | 73.2 ° | 73.7 ° | 73.7 ° | 73.4 ° | 73.4 ° |
| Head Tube Length | 105 mm | 105 mm | 110 mm | 115 mm | 115 mm | 120 mm | 125 mm | 125 mm | 139 mm | 147 mm | 158 mm | 165 mm | 179 mm | 179 mm | 215 mm | 255 mm |
| Chainstay Length | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm | 414 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
Dogma F10 Rim Ultegra Di2 Bike is part of the Pinarello Dogma model. Pinarello released 171 bikes variations of this model so far. You can easily view all of the Pinarello Dogma bikes models from 2019, here.
Model range prices
Pinarello Dogma F10 Rim Ultegra Di2 Bike 2019 is the most affordable bike of this model and has a price of 6600$. On the other hand, Pinarello Dogma F8 Xlight Dura-Ace Di2 Bike 2019, is the most expensive and costs 17499$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Race bikes
If you want to purchase a solid Race bike, it is important to know that the average cost is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6600$. In conclusion, this bike price is 97.01% more expensive than the price of the average Race bike.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The Dogma F10 Rim Ultegra Di2 Bike 2019 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Dogma F10 Rim Ultegra Di2 Bike comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
